 Novellini Young G+F inline hinged shower door with inline panel


 Novellini Young G+F inline - hinged shower door with inline panel for large corner or wider alcove shower enclosures

Index > Shower Enclosures > Novellini > Young 2.0 > Extra wide alcove or corner shower

Novellini Young Hinged shower door with inline panel (G+F inline)

Suitable for Alcove or Corner settings

Minimal semi-frameless shower enclosure comprising hinged door with an inline panel (G+F Inline) create a wide shower enclosure for larger alcoves. Or, add a fixed end panel (F1B) to create a large corner shower enclosure.

Alcove enclosure can be configured with door on right or left, but in the case of a corner setting the door must be hung from a structural wall (i.e. NOT end panel).

Profile colour options include Silver, Chrome or Matt Black. Glass options include Clear, Aqua or Satin.

With this variant the door hinges from wall rather than the panel. If you require the door to hinge from the inline panel please refer to the 'YOUNG 2P+F' model.

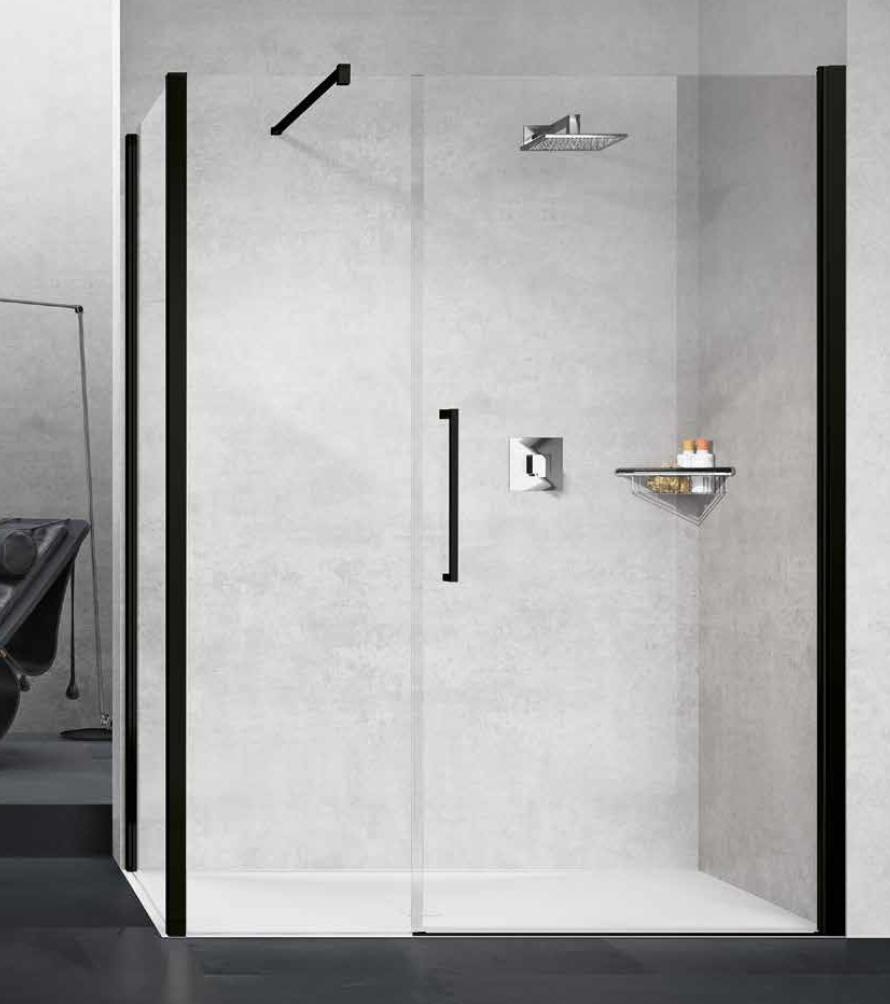

NEW Shower door with black profile colour option.

Novellini YOUNG G F Inline (1)

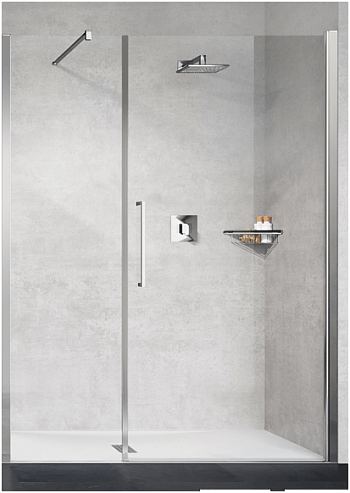

Above: YOUNG G+F Inline in alcove setting

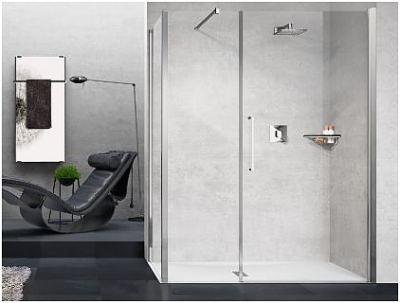

Below: YOUNG G+F Inline in corner setting with added end panel

Novellini Young 2.0 hinged shower door with inline fixed panel (G+F inline) shown with fixed side panel to create a corner shower enclosure. New black colour option.

Below: Note bracing bar (supplied) to steady inline panel.

Novellini Young 2 recessed alcove shower with hinged shower door and inline fixed panel

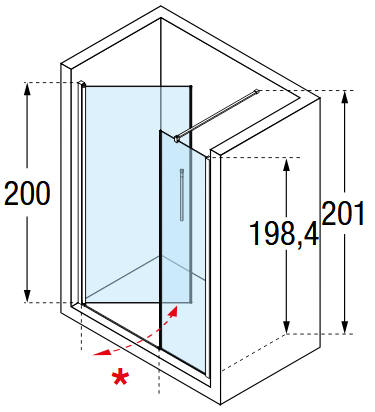

YOUNG G + F Inline Dia 1

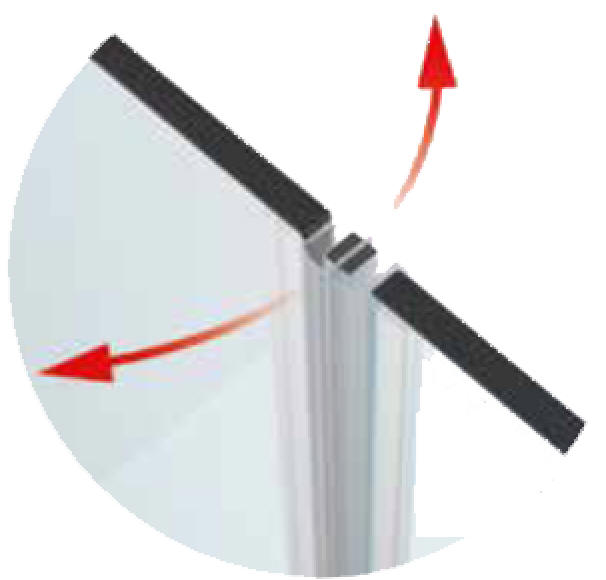

Door opens inward and outward.

YOUNG G + F Inline Dia 2



YOUNG G + F Inline Dia 3

YOUNG G + F Inline Dia 4

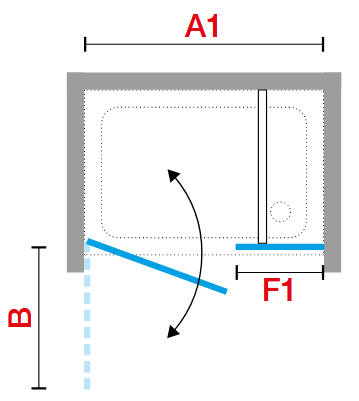

Diagram shows alcove installation

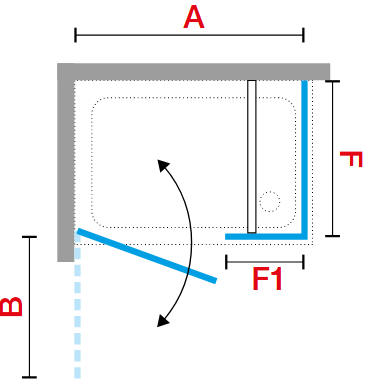

Diagram shows corner installation

Can be combined with a fixed end panel (F1B) to produce

a large corner shower.

The 6mm thick toughened safety glass (coated with Crystal Clear treatment to help negate the formation of limescale and bacteria) is an impressive 2  metres. tall and is available in a choice of glass types that include Clear, Aqua or Satin.

Note how the hinged door can open both inward and outward. Exciting new black colour option.



NOVELLINI YOUNG G+F

Hinged shower door with inline fixed panel

Standard Overall Width   Swing Access   Price inc VAT
(mm) A   B * F1 Profile colour
  from to         Silver Chrome or
                Matt Black
1000 980 1020   590 580 325 £496.42 £546.87
1100 1080 1120   590 580 424 £509.54 £559.99
  1150 1190   690 680 395 £521.65 £574.12
1200 1180 1220   690 680 425 £521.65 £574.12
  1350 1390   790 780 495 £585.21 £642.73
1400 1380 1420   790 780 525 £585.21 £642.73
1500 1480 1520   890 880 525 £601.36 £659.88
  1550 1590   890 880 595 £619.52 £679.05
1600 1580 1620   890 880 625 £618.85 £679.05
  1650 1690   890 880 695 £626.58 £690.15
1700 1680 1720   890 880 725 £626.58 £690.15
1800 1780 1820   890 880 825 £626.58 £690.15

Width stated = when door is used with fixed end panel.
 If used in an alcove the overall width is 10mm less.
                Order
Special Sizes (Please enquire)
Bespoke and custom sizes are available with this door between 1400-2200 H and 970-1770 W

NOTE 1:Standard support bar (1500 long) supplied with this door.
NOTE 2: Available in GOLD Finish. Please add 10% to 'Chrome price. (Approx 8-10 week delivery)





To create a corner enclosure add...



Novellini YOUNG fixed end panel (F1B)



Novellini Young 2 hinged door, inline panel and end panel

Novellini Young 2 hinged door, inline panel and end panel diagram





NOVELLINI YOUNG F1B

Fixed side panel to suit G+F door

Standard             Price inc VAT
(mm) Dimension F         Frame colour
  from to         Silver Chrome
  570 590         £275.45 £302.70
  590 610         £275.45 £302.70
  650 670         £293.62 £321.87
700 670 690         £293.62 £321.87
  690 710         £293.62 £321.87
760 730 750         £311.78 £343.06
  750 770         £311.78 £343.06
800 770 790         £311.78 £343.06
  790 810         £311.78 £343.06
  850 870         £330.95 £363.24
900 870 890         £330.95 £363.24
  890 910         £330.95 £363.24
  950 970         £330.95 £363.24
1000 970 990         £348.10 £382.41
  990 1010         £348.10 £382.41
1200 1170 1190         £348.10 £382.41
  1190 1210         £348.10 £382.41
                 Order
Special Sizes
This side panel suits the YOUNG G+F door and can be supplied to bespoke heights.
Please enquire.
10522





Been offered a 'Price Match'? Read more...

Options

Customise your enclosure with the following frame colours and glass types.

Frame colour

Silver

Black

Chrome



Sliver frame option

Black frame option

Chrome frame option


Glass Type

Clear

Aqua

Satin





Clear glass sample

Aqua glass sample

Satin glass sample





Product Literature
Product data sheet
