 Novellini Young 2P+F hinged shower door + inline panel (for alcove or corner installation)


 Novellini Young 2P+F hinged shower door and inline panel for alcove or corner shower enclosures

Index > Shower Enclosures > Novellini > Young 2.0 > Shower door and inline panel

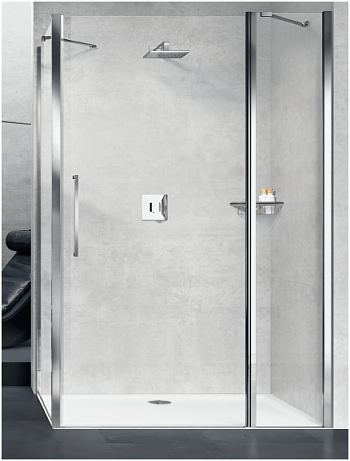

Novellini Young 2P+F shower door hinged from inline panel

This door with inline panel version '2P+F' has the door hinging off the inline panel rather than the wall as with the 'G' variant.

Suitable for use in an alcove, or with an F1B side panel to make an attractive corner shower enclosure.

The 6mm thick toughened safety glass (coated with Crystal Clear treatment to help negate the formation of limescale and bacteria) is an impressive 2  metres. tall and is available in a choice of types that include Clear, Aqua, Satin.

Extra wide shower enclosure with NEW Black profile colour option.

Novellini YOUNG 2P+ F hinged shower door suppirted from inline fixed panel.

Novellini 2 (2P hinged shower door and inline panel)

Young 2 - 2p F shower enclosure diagram 1

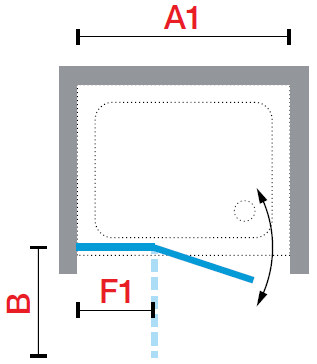

Novellini 2P+F hinged door and fixed inline panel shown in an alcove location

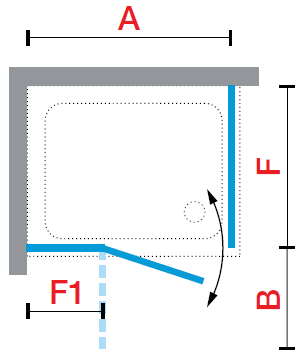

Novellini 2P+F hinged door and fixed inline panel shown with a fixed side panel  for a corner location

  Alcove Corner




NOVELLINI YOUNG 2P+F

HINGED SHOWER DOOR hinging from inline fixed panel

Standard Width Access (*) Swing (B)   Price inc VAT
  Using in  Fixed inline
  end panel (A) Alcove (A1) panel (F1)       Frame colour
(mm) from to         Silver Chrome
800 780-820 770-810 200-220 510 510   487.34 535.77
900 880-920 870-910 200-220 610 610   508.53 558.98
1000 980-1020 970-1010 200-220 710 710   527.70 581.18
1100 1080-1120 1070-1110 200-220 810 810   549.90 604.39
1200 1180-1220 1170-1210 400-420 710 710   570.08 628.60
1400 1380-1420 1370-1410 400-420 910 910   591.27 650.80
                Order





to create a corner enclosure add...



Fixed end panel (F1B)



Novellini 2P+F hinged door and fixed inline panel shown with a fixed side panel  for a corner location







NOVELLINI YOUNG 2.0 (F1B)

fixed side panel to suit 2P+F door

Standard             Price inc VAT
(mm) Dimension F         Frame colour
  from to         Silver Chrome
  570 590         275.45 302.70
  590 610         275.45 302.70
  650 670         293.62 321.87
700 670 690         293.62 321.87
  690 710         293.62 321.87
760 730 750         311.78 343.06
  750 770         311.78 343.06
800 770 790         311.78 343.06
  790 810         311.78 343.06
  850 870         330.95 363.24
900 870 890         330.95 363.24
  890 910         330.95 363.24
  950 970         330.95 363.24
1000 970 990         348.10 382.41
  990 1010         348.10 382.41
1200 1170 1190         348.10 382.41
  1190 1210         348.10 382.41

Special Sizes                Order
Although this side panel can be supplied at bespoke heights the 2P+F door cannot.
Please enquire.
10522







Been offered a 'Price Match'? Read more...

Options

Customise your enclosure with the following frame colours and glass types.

Frame colour

Silver

Black

Chrome





Sliver frame option

Black frame option

Chrome frame option



Glass Type

Clear

Aqua

Satin





Clear glass sample

Aqua glass sample

Satin glass sample





Product Literature


Product data sheet Installation Handbook
