Novellini Young GS+F bi-folding semi-frameless

corner shower enclosure

A minimalist style corner shower enclosure comprising a single bi-folding shower door plus a

fixed side panel.

The GS bi-folding door is a semi-frameless design offering a sleek minimalist appearance

that cannot be so easily achieved by its framed counterparts.

Ideal where the swing of an outward opening hinged door might be awkward or simply

enjoyed for its elegant beauty, the YOUNG GS bi-folding door shower enclosure will add

beauty to your bathroom.

An unusual feature of this bi-folding door is its ability to fold and swing both inward and

outward.

The 6mm thick toughened safety glass (coated to reduce formation of lime scale and bacteria)

is an impressive 2 metres tall and is available in a choice of glass types that

include Clear, Aqua, Satin.

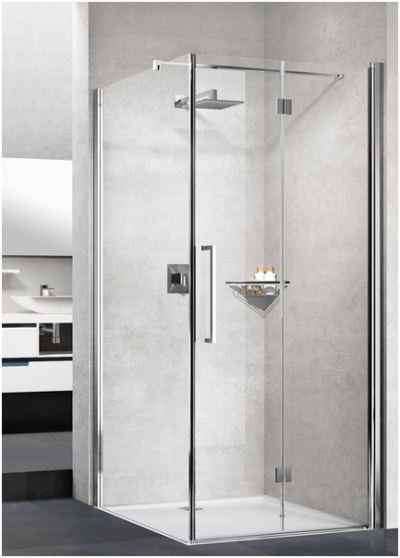

Novellini Young 2 hinging bi-folding door corner enclosure with fixed side panel.

Above: Chrome profile semi-frameless bi-fold door shown with fixed side panel to create a

corner shower enclosure.

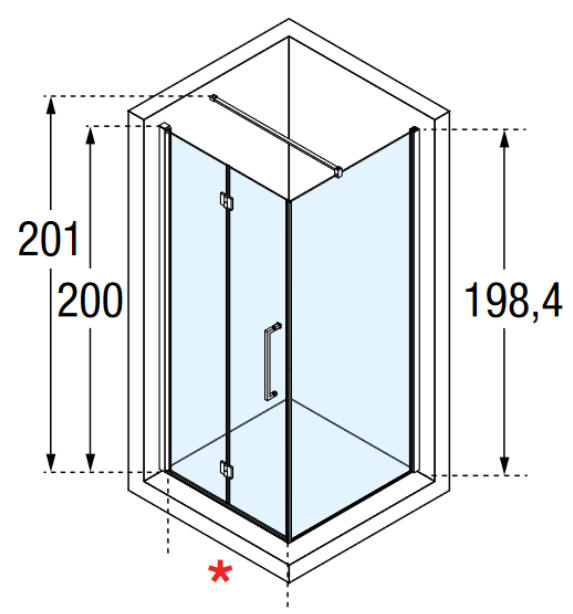

Novellini Young 2 - GS+F corner shower with bi-folding door diagram 1

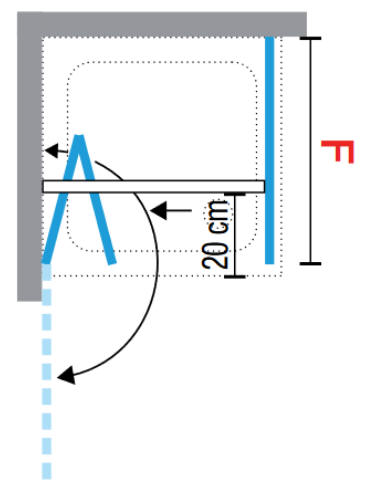

Novellini GS bi-folding shower door diagram in left hand corner

Above: Left Hand corner

Below: Right Hand Corner

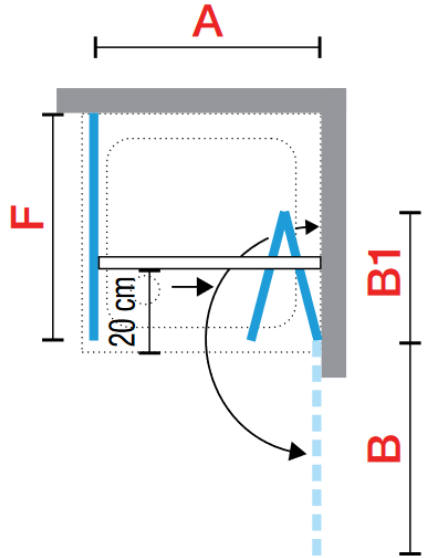

Novellini GS bi-folding shower door diagram in right hand corner

When ordering, please specify which handing you require

NOVELLINI YOUNG GS Price List
HINGED BI-FOLDING DOOR SHOWER ENCLOSURE

Std	Overall Width (A)		(B1)	Access	Swing	Price inc VAT
(mm)	mm		mm	(*)	(B)	Frame colour
						White/Silver	Black/Chrome

	580	600	260	490	490	£363.73	£401.73
	600	620	270	510	510	£363.73	£401.73
700	660	680	300	570	570	£363.73	£401.73
	680	700	310	590	590	£363.73	£401.73
	700	720	320	610	610	£380.92	£418.02
760	740	760	340	650	650	£380.92	£418.02
800	760	780	350	670	670	£380.92	£418.02
	780	800	360	690	690	£380.92	£418.02
	800	820	370	710	710	£396.30	£437.02
900	860	880	400	770	770	£396.30	£437.02
	880	900	410	790	790	£396.30	£437.02
	900	920	420	810	810	£396.30	£437.02
1000	960	980	450	870	870	£412.59	£455.11
	980	1000	460	890	890	£412.59	£455.11
	1000	1020	470	910	910	£412.59	£455.11
1100	1060	1080	500	970	970	£412.59	£455.11
1200	1160	1180	550	1070	1070	£412.59	£455.11
	1180	1200	560	1090	1090	£427.97	£474.12
	1200	1220	570	1110	1110	£427.97	£474.12

	Bespoke sizes are NOT available in this model of bi-fold shower door

10923

To complete your YOUNG GS semi-frameless corner shower enclosure with bi-folding door you

need to add a fixed side panel from the following table.

NOVELLINI YOUNG 2.0 FG
Semi-frameless fixed side panel to suit the YOUNG GS door.

Width
(mm)			Price inc VAT
	from	to	Frame colour
			Matt White/Silver	Chrome/Matt Black
	570	590	£272.34	£298.58
	590	610	£272.34	£298.58
	610	630	£272.34	£298.58
	650	670	£290.44	£317.58
700	670	690	£290.44	£317.58
	690	710	£290.44	£317.58
760	730	750	£307.63	£338.40
	750	770	£307.63	£338.40
800	770	790	£307.63	£338.40
	790	810	£307.63	£338.40
	850	870	£326.63	£358.30
900	870	890	£326.63	£358.30
	890	910	£326.63	£358.30
	950	970	£326.63	£358.30
1000	970	990	£343.82	£377.30
	990	1010	£343.82	£377.30
1200	1170	1190	£343.82	£377.30
	1190	1210	£343.82	£377.30

Special Sizes not available in this model

10923

Options Customise your enclosure with the following frame colours and glass types.
Frame colour	Silver	Matt Black	Chrome
Matt White

Glass Type	Clear	Aqua	Satin

Product Literature
Product data sheet	Product Installation 1	Product Installation 2
