 Novellini Kuadra HF Freestanding walk in shower screen


 Novellini KUADRA HF glass walk-through shower panel

Index > Shower Enclosures > Novellini > Kuadra Range > Kuadra H Collection > Kuadra HF

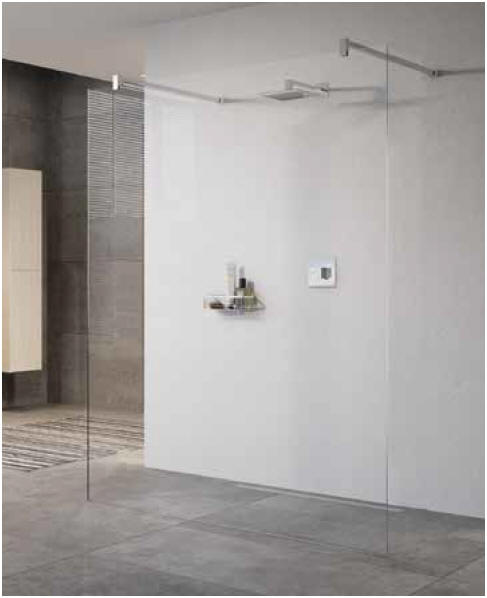

Novellini Kuadra HF freestanding 'walk behind'

glass shower screen

The KUADRA HF is a minimalist 'freestanding' glass shower screen. Also described as a 'walk behind' or 'walk through' shower screen, the KUADRA HF affords entry from either side, adding a touch of opulence and luxury to your home.

The Kuadra HF can be used on its own or in conjunction with other fixed screens or flipper and spray deflector panels from the Kuadra H range. (read down for all the options)

Manufactured in 8mm thick toughened safety glass (coated in 'Crystal Clear' treatment) with a standard height of 2 metres, the HUADRA HL shower screen can be supplied in custom widths from 800mm to 1800mm and heights from 800mm up to 2400mm.

Novellini Kuadra HF freestanding walk in / walk through shower enclosure

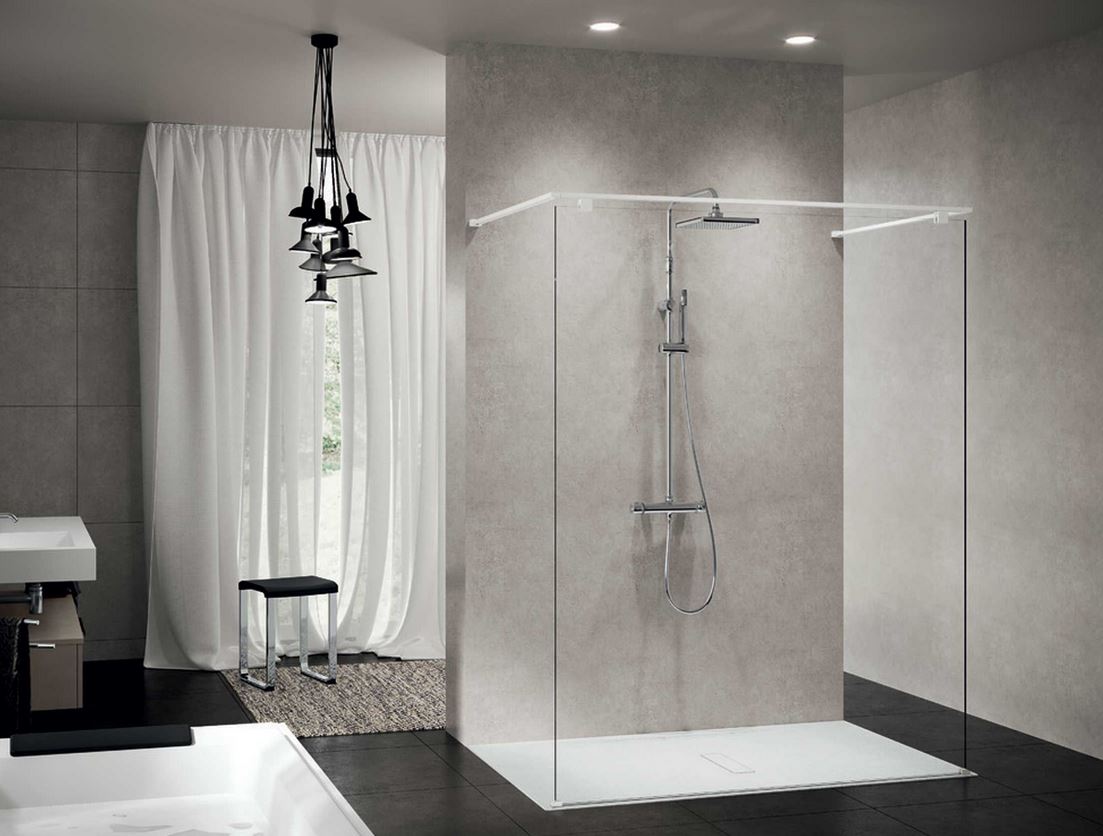

Above: KUADRA HF - plain glass shower screen with entry from either side

(Standard support bars)

Novellini KUADRA HF - wall behind shower screen with entry from both sides.

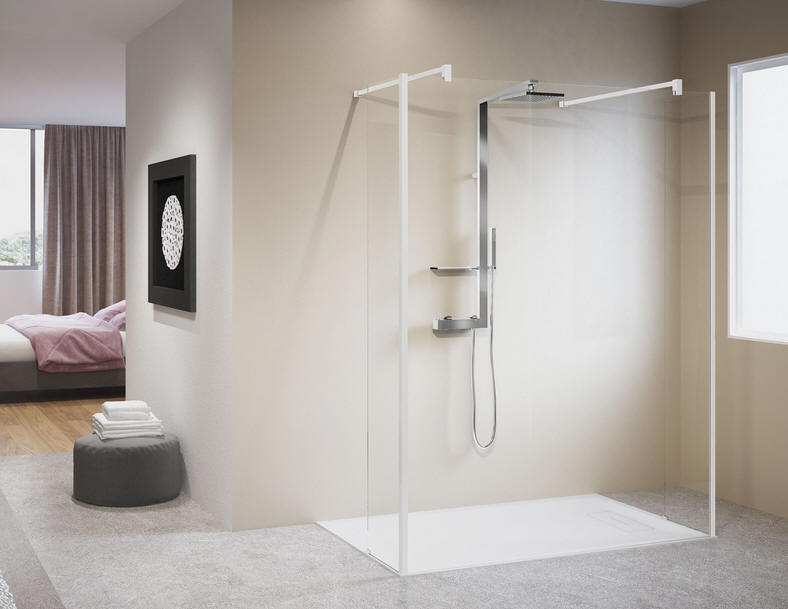

Above: KUADRA HF - plain glass shower screen with entry from either side (Evo fixing system)

Novellini KUADRA HF - walk through shower enclosure with hinged HFA flipper panels to contain spray

Above: KUADRA HF - plain glass shower screen with hinged spray defector HFA (flipper) panels

Novellini KUADRA HF - walk through shower enclosure with fixed HL panels to contain spray

Above/Below: KUADRA HF - glass shower screen, entry from either side,

HL fixed deflector panels






Popular configurations of the KUADRA HF shower

screen showing what would need to be ordered

KUADRA HFA - Hinged flipper panel

KUADRA HL - Fixed deflector panel

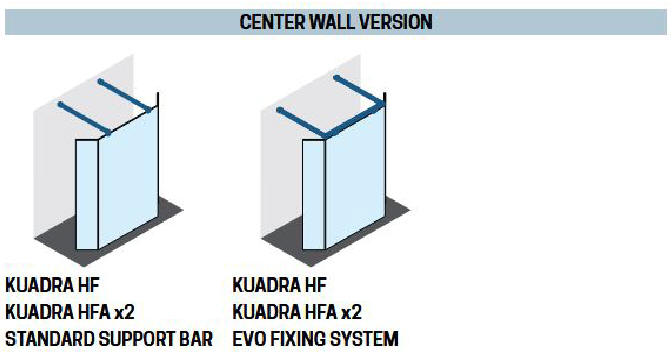

Novellini KUADRA HF shower screen with HFA hinged flipper panels in mid wall setting

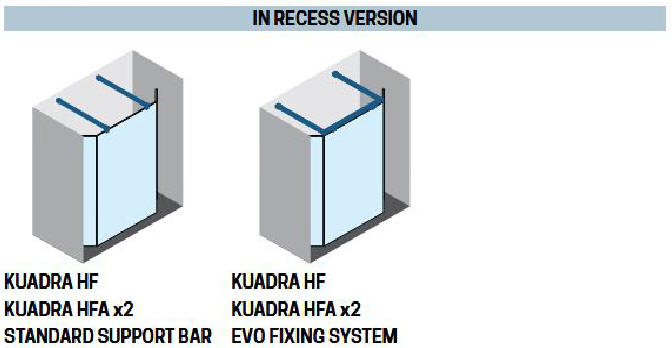

Novellini KUADRA HF shower screen with HFA hinged flipper panels in recess setting
Novellini KUADRA HF shower screen with HL fixed deflector panels in mid wall setting
Novellini KUADRA HF shower screen with HL fixed deflector panels in alcove setting



Novellini KUADRA HF shower screen dimensions







Novellini H walk in shower screen foot options



NOVELLINI Kuadra HF Freestanding

Glass Shower Panel Price list


Standard screen height = 2000mm
Supplied with x2 support arms
Screen width (mm)

Nominal C Supports   Profile Colour
Clear Glass x2   Chrome Matt Black Inox

940 Y   £474.12 £474.12 £522.07
1140 Y   £522.97 £522.97 £575.45
1340 Y   £570.93 £570.93 £628.84
1540

Mirror (Spy) Glass   Chrome Matt Black Inox

940 Y   £703.03 £703.03 £773.60
1140 Y   £788.08 £788.08 £867.70

Standard 1000mm long support bars supplied with panel.
Optional 1500mm long support arms are available. Please enquire.

Special Sizes
The KUADRA  HF Freestanding panel is available in the following special sizes:
800mm - 1800mm wide
800mm to 2400 tall
PLEASE ENQUIRE





Been offered a 'Price Match'? Read more...



Kuadra HF shower profile and glass options

Customise your enclosure with the following frame colours and glass types.

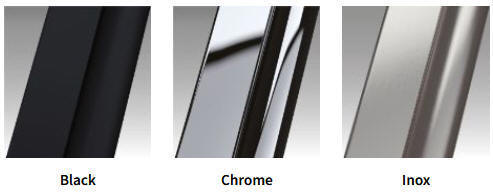

Profile colour



Glass Type

Clear

Ravenna Printing

Mirror (SPY)

Mirror Modesty



Clear glass sample



Mirror glass swatch (SPY)





Product Literature
Product data sheet Installation Handbook (2G)
