 Novellini Kuadra HL fixed glass shower screens and spray deflector panels


 Novellini KUADRA HL fixed shower deflector screen for walk in shower enclosure

Index > Shower Enclosures > Novellini > Kuadra Range > Kuadra H Collection > Kuadra HL

Novellini Kuadra HL glass shower screen and spray deflector

The Kuadra HL is another important component in this customisable walk in shower collection.

If your design incorporates a KUADRA H shower screen (where one end attaches to a wall) or a KUADRA HF (Freestanding Screen) and you wish to add a panel at right angles you will need to use the KUADRA HL . This is designed to 'plug onto' the bare end of the main panels.

If you wish to add a narrow fixed deflector panel anywhere in your design this will be the KUADRA HL Fixed Deflector

All Kuadra HL panels must be be supported from either an 'H' or an 'HF' fixed panel from the KUADRA H range.

The standard height of this 8mm thick toughened glass panel is 2000mm. Custom sizes may be ordered to match other custom size screens from the KUADRA H range. Sizes can range anywhere from 150mm to1600mm wide , and 800mm tall to 240mm. But remember, the HL spray deflector screen must be the same height as the one supporting it.

Note: This item is only suitable for use with glass panels from the KUADRA H Range.

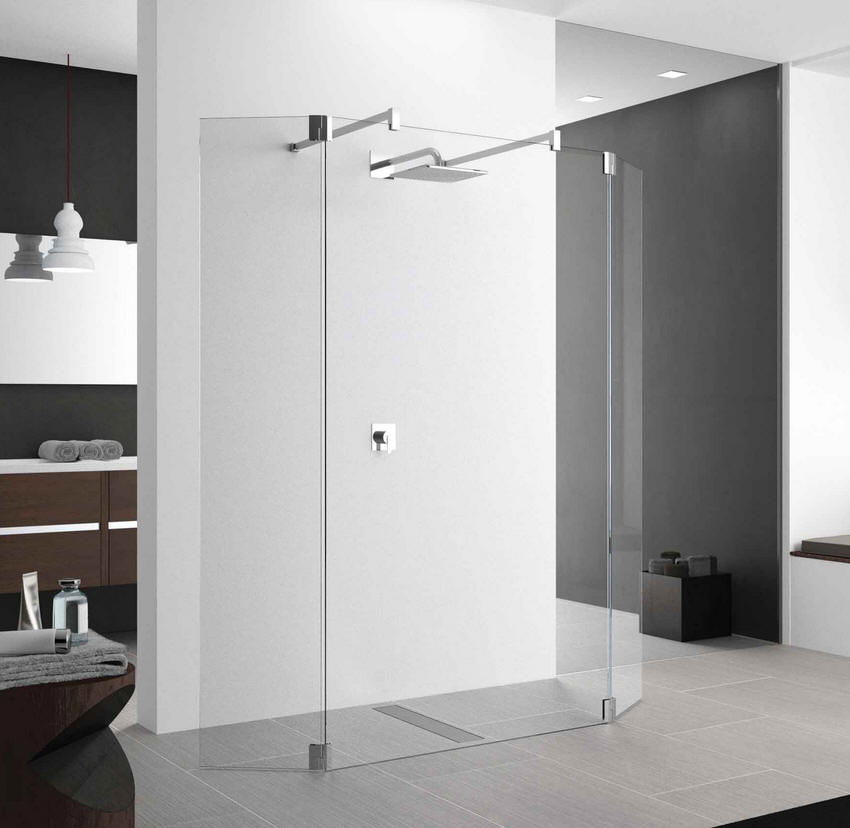

Novellini KUADRA HF with 2 x KUADRA HL fixed deflectors

Above: KUADRA H5 Config (Two fixed return deflector panels)

Below: KUADRA H4 Config (Two hinged deflector panels - see HFA Pivoting deflector panels)

Novellini KUADRA HF with 2 x KUADRA HFA hinged flipper panels

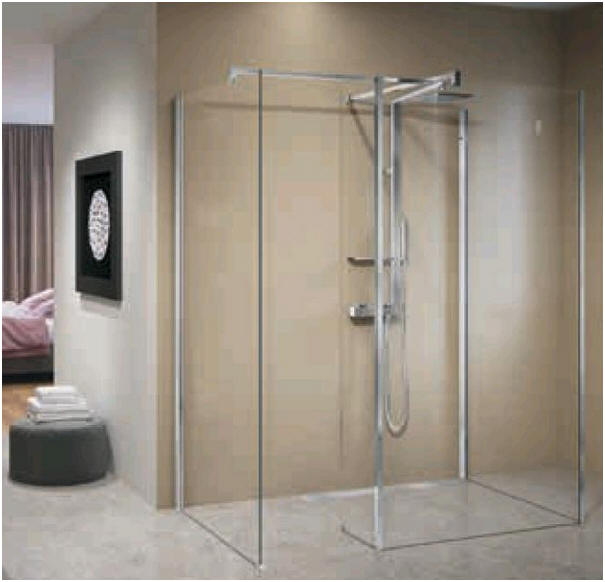

2 x Kuadra H wall fixed screens toether with a Kuadra HL as a fixed panel and a Kuadra HL as a fixed spray defelctor configured to create an attractive walk in shower enclosure

Above: KUADRA H+HL fixed panels

configured to create a contemporary walk in shower enclosure

Examples of how the KUADRA HL panel configures

Diagram howing Kuadra H together with a Kuadra HL fixed panel as a walk in shower enclosure

Diagram showing Kuadra H with a Kuadra HL fixed deflector

As a return panel from a KUADRA H shower screen. Additional KUADRA HL panels can be joined

As a fixed deflector

Diagram showing a Kuadra H wall fixed shower panel supporting a Kuadra HL fixed shower screen and a Kuadra HL fixed deflector panel



The Kuadra HL is an add-on fixed glass panel. According to the size you select the panel can be used to serve a number of purposes. Wider panels might be used as fixed screens, whereas the narrower panels might be used as fixed return panels to contain and deflect overspray.

Illustrated: Top right, the HL as a fixed return on a Kuadra H screen. Middle right, a larger HL attached to a Kuadra H as a fixed screen. Bottom right, a diagram showing a Kuadra H + HL + HL.





NOVELLINI Kuadra HL walk in shower
fixed defector screen price list

Standard screen height = 2000mm
Kuadra HL small fixed deflector
Screen width (mm
Nominal F Brace incl   Profile Colour
Clear Glass     Chrome Matt Black Inox

150 N   £145.67 £145.67 £161.05
300 N   £159.24 £159.24 £175.53
400 N   £178.25 £178.25 £196.34

Special Sizes
The KUADRA  HL deflector panel is available in the following special size range:
150mm - 1600mm wide
800mm to 2400 tall
PLEASE ENQUIRE

Kuadra HL large fixed panel
Nominal D Brace incl     Profile Colour
Clear Glass     Chrome Matt Black Inox

680 Y   £345.63 £345.63 £380.92
780 Y   £361.02 £361.02 £397.21
880 Y   £375.49 £375.49 £413.49
980 Y   £391.78 £391.78 £431.59
1180 Y   £421.64 £421.64 £464.16
1380 Y   £451.50 £451.50 £496.74
1580 Y   £481.35 £481.35 £530.21

Nominal D Brace incl     Profile Colour
Mirror (Spy) Glass   Chrome Matt Black Inox

680 Y   £462.35 £462.35 £509.40
780 Y   £486.78 £486.78 £535.64
880 Y   £551.02 £551.02 £606.22
980 Y   £575.45 £575.45 £633.36
1180 Y   £648.74 £648.74 £713.89
1380 Not available in these sizes
1580







As the Kuadra HL fixed panel is large enough to require support (the deflector panel does not) a bracing bar is included where appropriate with your purchase.





Been offered a 'Price Match'? Read more...



Kuadra shower enclosure frame and glass options

Customise your enclosure with the following frame colours and glass types.

Frame colour

Chrome

Matt Black Inox



Chrome frame option



Glass Type

Clear





Clear glass sample





Product Literature
Product data sheet Installation Handbook (2G)
