The two most common wet room shower floor scenarios are timber and screed floor installations. Novellini Duo and Quattro Decks are ideal for timber floors, this section offers you solutions for solid screed (concrete floor) wet room floor drainage.

Linear wet room shower drains for screed and concrete floors

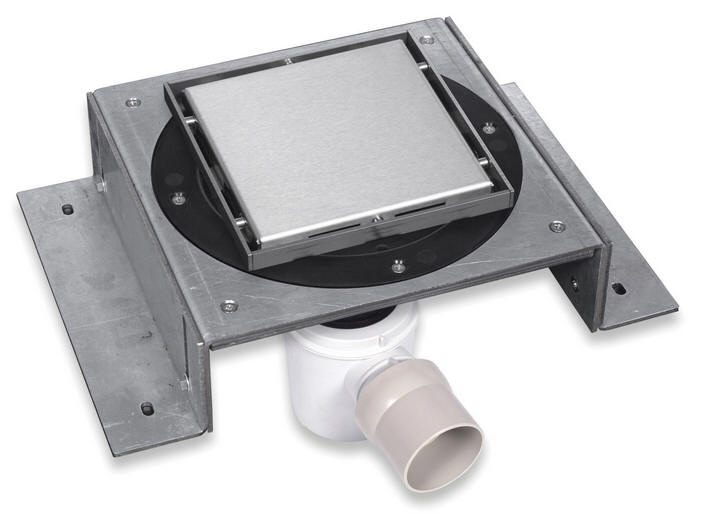

Square Screen floor gully for wet room shower floor

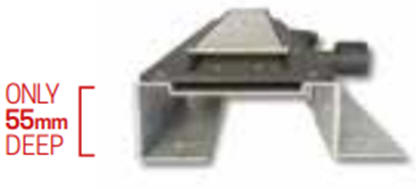

Screed floor gully. Only 55mm minimum profile height.

Novellini solid floor linear drains have been designed to fit comfortably within a minimal screed thickness that modern construction methods often demand .

Utilising a unique 'waterless trap' which carriers a lifetime guarantee and BBA approval, these Linear Drains present an incredibly shallow profile - only 55mm from the base to the top of the tray when adjusted to the minimum height. This is particularly useful when retrofitting to an existing solid floor as it reduces to amount of excavation necessary.

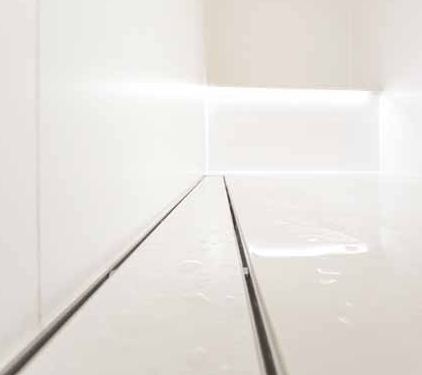

Linear wall drain with tile optional recess allowing tile to be rebated into top of cover grill

Other exciting features of Novellini Linea Drains include impressive flow handling capability (up to a massive 50 l/min), an extensive size range, grill options offering stainless or inlaid tile finish and an option to have the drain positioned tight to the adjacent wall - The Linear Wall Drain.

Screed (solid) wet room floor construction

To view a typical cross-section of a solid (screed or concrete) floor installation using a Novellini wet room floor linear drain in conjunction with Screedsafe (waterproof floor membrane) and Wallsafe (waterproof liquid wall membrane) Click Here



NOVELLINI solid floor wet room shower drain sizes and prices

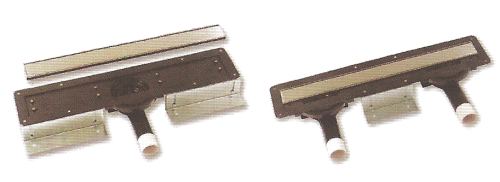

Novellini wet room Linea Floor Drain

- single outlet (for a TWO way fall)

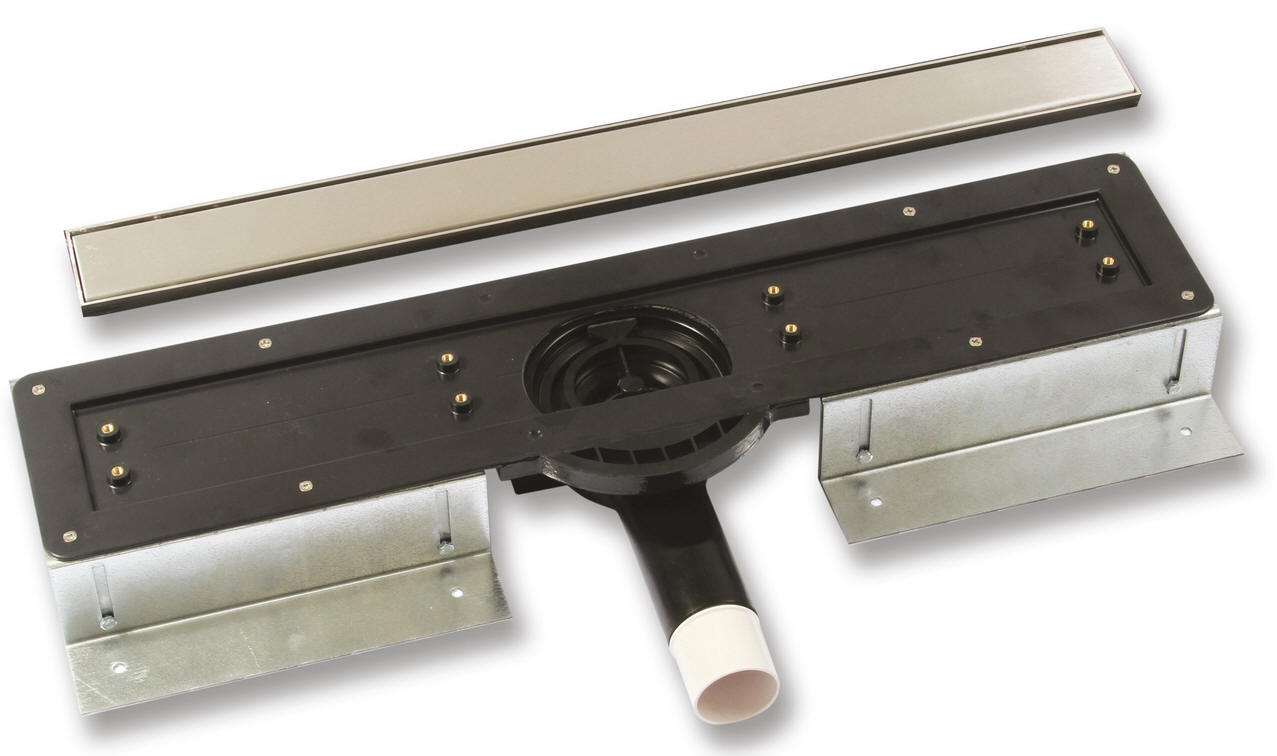

Novellini linear floor gully for a screed wet room shower floor

Description

Grill length

Order ref code

Price (inc VAT)

Single trap Linear Floor Drain, supplied with stainless (G1) grill as standard,

Max flow rate 29 l/min

600mm

CD60 G1

£325.56

700mm CD70G1 £334.08

800mm

CD80 G1

£359.65

900mm CD90 G1 £365.61

1000mm

CD100 G1

£393.74

1100mm CD110 G1 £408.22

1200mm

CD120 G1

£420.16

  1300mm CD130 G1 £428.68
  1400mm CD140 G1 £438.90
  1500mm CD150 G1 £449.99
  • Price includes linear waste outlet,  1 x trap and stainless grill G1.

  • Grill may be upgraded to G3 type with inset tiling rebate (please see below)

  • This model installs away from wall with a fall in floor front and rear of grill


Order






Novellini wet room Linea Floor Drain

- twin outet (for a TWO way fall)

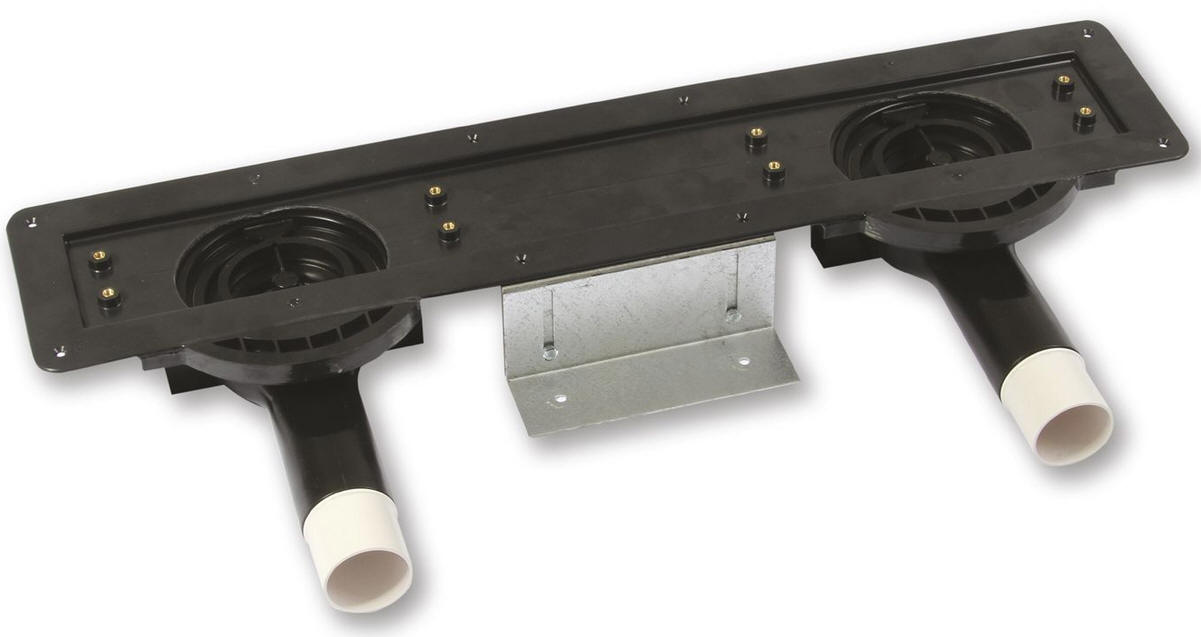

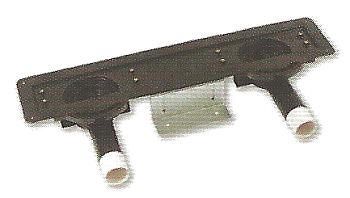

Twin outlet high flow rate linear floor drain for screed wet room shower floor

Description

Grill length

Order ref code

Price (inc VAT)

Double trap Linear Floor Drain, supplied with stainless (g1) grill as standard,

Max flow rate 50 l/min

600mm

CDDT60 G1

£403.11

700mm CDDT70G1 £415.90

800mm

CDDT80 G1

£436.35

900mm CDDT90 G1 £444.02

1000mm

CDDT100 G1

£470.44

1100mm CDDT110 G1 £475.55

1200mm

CDDT120 G1

£491.75

  1300mm CDDT130 G1 £496.01
  1400mm CDDT140 G1 £507.98
  1500mm CDDT150 G1 £516.46
  • Price includes linear waste outlet, 2 x trap and stainless grill G1.

  • Grill may be upgraded to G3 type with inset tiling rebate (please see below)

  • This model installs away from wall with a fall in floor front and rear of grill


Order

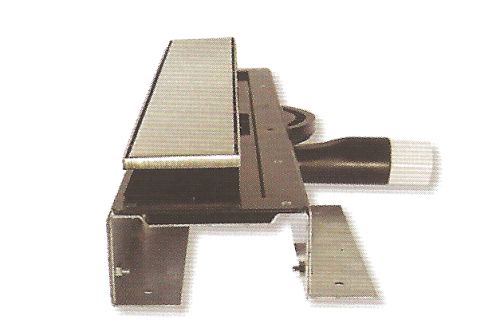

Novellini wet room Linea Wall Drain

- single outet (for a ONE way fall following the wall line)

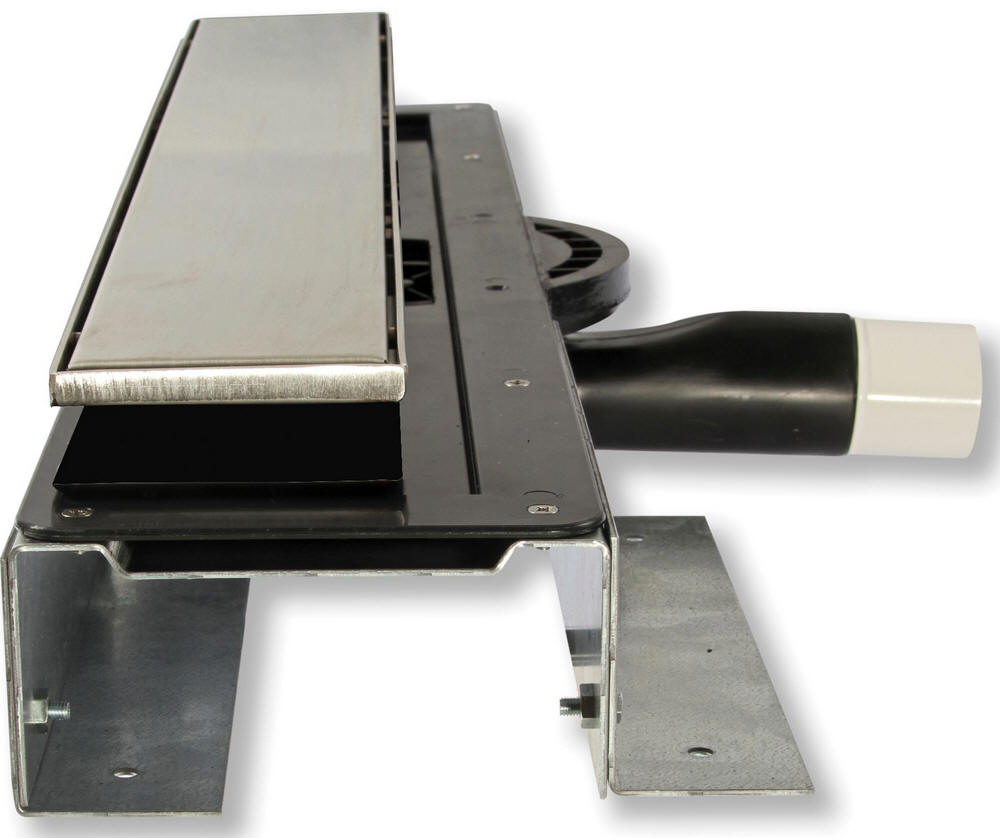

Linear wall gully for wet room shower where the drain is against the wall line.

Description

Grill length

Order ref code

Price (inc VAT)

Single trap Linear Wall Drain, supplied with stainless (g1) grill as standard,

Max flow rate 29 l/min

600mm

CWD60 G1

£364.76

700mm

CWD70 G1

£377.55

800mm

CWD80 G1

£398.85

900mm

CWD90 G1

£417.60

1000mm

CWD100 G1

£432.09

1100mm

CWD110 G1

£449.99

1200mm

CWD120 G1

£476.40
1300mm

CWD130 G1

£496.01
1400mm

CWD140 G1

£507.08
1500mm

CWD150 G1

£516.46


  • Price includes linear waste outlet, 1 x trap and stainless grill G1.

  • Grill may be upgraded to G3 type with inset tiling rebate (please see below)

  • This model installs tight to adjacent wall - one way fall towards grill


Order






Novellini wet room Linea Wall Drain

- twin outet (for a ONE way fall following the wall line)

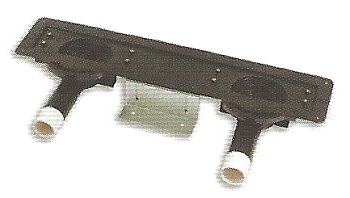

Twin waste outlet option for the wet room shower linear wall drain

Description

Grill length

Order ref code

Price (inc VAT)

Double trap Linear Wall Drain, supplied with stainless (g1) grill as standard,

Max flow rate 50 l/min

600mm

CWDDT60 G1

£436.35

700mm

CWDDT70 G1

£449.13

800mm

CWDDT80 G1

£470.44

900mm

CWDDT90 G1

£480.66

1000mm

CWDDT100 G1

£503.68

1100mm

CWDDT110 G1

£521.57

1200mm

CWDDT120 G1

£536.06
1300mm

CWDDT130 G1

£543.73
1400mm

CWDDT140 G1

£553.96
1500mm

CWDDT150 G1

£564.19

  • Price includes linear waste outlet, 2 x trap and stainless grill G1.

  • Grill may be upgraded to G3 type with inset tiling rebate (please see below)

  • This model installs tight to adjacent wall - one way fall towards grill


Order






Novellini concrete floor Linear wet room shower waste grill and trim options

Order reference code

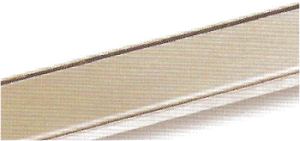

G1

Stainless steel linear waste outlet grill

The G1 standard grill is a stainless plate that fits along the length of waste outlet (drain) up to which your wet room shower floor may be tiled.

Unless specified to the contrary this grill will be supplied with your order.



Price:

Included in price


Order reference code

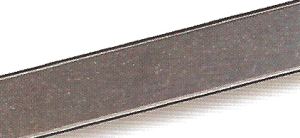

G3

The G3 grill incorporates a tiling rebate in to which you may inlay a tile to match the surrounding shower floor. Click here for example.

When specified, this grill will be supplied in place of the standard G1 grill. An additional cost applies for this option.

Linear waste outlet cover with rebate for tile insert





Price:

£56.40 inc VAT

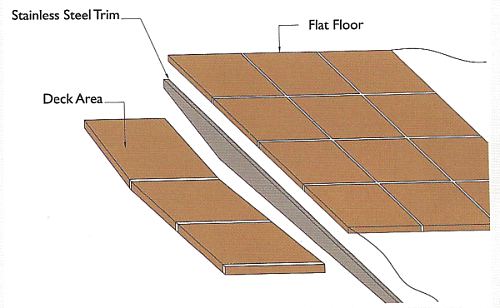

Stainless steel trim detail

With concrete floor Linear shower waste drains, stainless steel trims may be obtained separately (at additional cost) to trim the area to the left and right of the deck - if required. The trim finishes neatly any edges that may exist as a result of the height differential between the slope of the deck and the surrounding floor.

Stainless steel trim detail for the Novellini Duo Deck wet room floor flormer tray

Tile trim (Code / Length)

Price inc VAT



NWFSS1 - 300/600mm

42.00

NWFSS2 - 600/600mm

48.00

NWFSS3 - 300/900mm

48.00

NWFSS4 - 300/1200mm

60.00

NWFSS5 - 300/1500mm

66.00

NWFSS6 - 900/900mm

66.00

NWFSS7 - 300/700mm

48.00



A delivery charge will apply to this product if ordered separately









Order
