Novellini linear waste wet room shower floor formerNovellini wet room floor forming tray

Novellini DUO wet room shower floor deck

Novellini wet room shower floor former with linear waste outlet

Index > All about wet rooms > Wet room shower floor formers > DUO DECK
The DUO Deck wet room shower floor former provides a gentle preformed slope from two directions towards a linear style waste outlet and is suitable for a timber floor.

A perfect wet room shower can be created in conjunction with wall and floor waterproof tanking kits that ensure your installation remains watertight for many years to come.

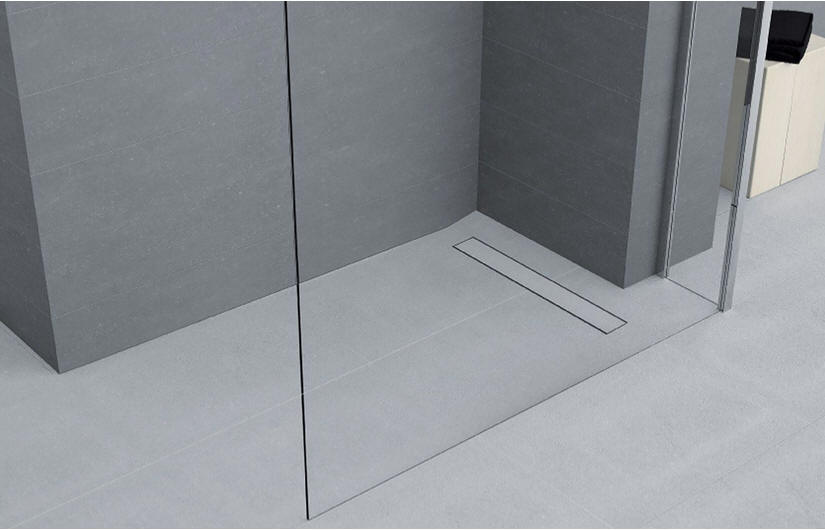

The elegance of a wet room shower floor with linear drain

Perfect for large format floor tiles

If you wish to use large tiles a Novellini Duo Deck minimises the number of cuts that can prove tricky on other types of wet room floor former.

  • Two way fall is suited to large tiles

  • Duo Deck is easily trimmed

  • Lifetime guarantee

  • 22mm thickness - replaces standard thickness floor boards.

  • Choose from 9 preformed sizes

  • Flow rate up to a massive 41 l/min

Wet room floor construction

To view a typical cross-section of a timber floor installation using a Novellini wet room floor deck in conjunction with Tilesafe (waterproof floor membrane) and Wallsafe (waterproof liquid wall membrane) Click Here

NOVELLINI DUO DECK wet room shower floor former kit sizes

Novellini DUO Deck 1
Order reference code

DUOKIT 1

Novellini DUO DECK 1 - Linea drain 900 x 900 wet room floor former
Overall Dimensions 900 x 900

  • Price includes linear drain floor former, waste outlet, trap and grill of  your choice

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)

  • G1 = Stainless gully cover

  • G3 = Tile-in rebated gully cover
DUOKIT1G1 £527.28 inc VAT

DUOKIT1G3

 £581.88 inc VAT

Order

Novellini DUO Deck 2
Order reference code

DUOKIT 2

Novellini DUO DECK 2 - Linea drain 1200 x 900 wet room floor former
Overall Dimensions 1200 x 900

  • Price includes linear drain floor former, waste outlet, trap and grill of  your choice

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)

  • G1 = Stainless gully cover

  • G3 = Tile-in rebated gully cover
DUOKIT2G1 £638.82 inc VAT
DUOKIT2G3 £692.64 inc VAT

Order

Novellini DUO Deck 3
Order reference code

DUOKIT 3

Novellini DUO DECK 3 - Linea drain 1200 x 900 wet room floor former
Overall Dimensions 1200 x 900

  • Price includes linear drain floor former, waste outlet, trap and grill of  your choice

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)

  • G1 = Stainless gully cover

  • G3 = Tile-in rebated gully cover
DUOKIT3G1 £638.82 inc VAT
DUOKIT3G3 £692.64 inc VAT

Order

Novellini DUO Deck 4
Order reference code

DUOKIT 4

Novellini DUO DECK 4 - Linea drain 1500 x 900 wet room floor former
Overall Dimensions 1500 x 900

  • Price includes linear drain floor former, waste outlet, trap and grill of  your choice

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)

  • G1 = Stainless gully cover

  • G3 = Tile-in rebated gully cover
DUOKIT4G1 £736.32 inc VAT
DUOKIT4G3 £790.14 inc VAT

Order

Novellini DUO Deck 5
Order reference code

DUOKIT 5

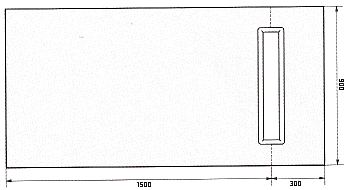

Novellini DUO DECK 5 - Linea drain 1800 x 900 wet room floor former
Overall Dimensions 1800 x 900

  • Price includes linear drain floor former, waste outlet, trap and grill of  your choice

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)

  • G1 = Stainless gully cover

  • G3 = Tile-in rebated gully cover
DUOKIT5G1 £772.98 inc VAT
DUOKIT5G3 £828.36 inc VAT

Order

Novellini DUO Deck 6
Order reference code

DUOKIT 6

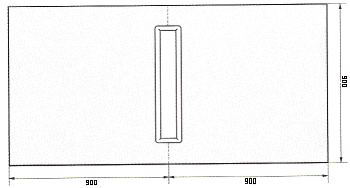

Novellini DUO DECK 6 - Linea drain 1800 x 900 wet room floor former
Overall Dimensions 1800 x 900

  • Price includes linear drain floor former, waste outlet, trap and grill of  your choice

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)

  • G1 = Stainless gully cover

  • G3 = Tile-in rebated gully cover
DUOKIT6G1 £772.98 inc VAT
DUOKIT6G3 £828.36 inc VAT

Order

Novellini DUO Deck 7
Order reference code

DUOKIT 7

Novellini DUO DECK 7 - Linea drain 1000 x 1000 wet room floor former
Overall Dimensions 1000 x 1000

  • Price includes linear drain floor former, waste outlet, trap and grill of  your choice

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)

  • G1 = Stainless gully cover

  • G3 = Tile-in rebated gully cover
DUOKIT7G1 £638.82 inc VAT
DUOKIT7G3 £692.64 inc VAT

Order

Novellini DUO Deck 8
Order reference code

DUOKIT 8

Novellini DUO DECK 8 - Linea drain 1200 x 1000 wet room floor former
Overall Dimensions 1200 x 1000

  • Price includes linear drain floor former, waste outlet, trap and grill of  your choice

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)

  • G1 = Stainless gully cover

  • G3 = Tile-in rebated gully cover
DUOKIT8G1 £638.82 inc VAT
DUOKIT8G3 £692.64 inc VAT

Order

Novellini DUO Deck 9
Order reference code

DUOKIT 9

Overall Dimensions 1500 x 1000

  • Price includes linear drain floor former, waste outlet, trap and grill of  your choice

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)

  • G1 = Stainless gully cover

  • G3 = Tile-in rebated gully cover
DUOKIT9G1 £736.32 inc VAT
DUOKIT9G3 £790.14 inc VAT

Order

Novellini DUO Deck wet room floor waste outlet and grill options

The Duo Deck wet room shower floor former is supplied with a linear waste outlet and trap.

The standard single-trap linear drain can handle 25 l/min. It is possible to add an additional trap that installs below the drain and increases the handling capacity to a massive 41 litres per minute!

The trap has a multi-directional 50mm outlet spigot and the kit is supplied with a 50mm-42mm reducer for connection to UK plastic pipework.

You may select which type of cover plate the gully will be supplied with. Please see below.

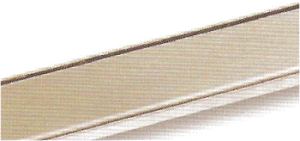

Order reference code G1

The G1 standard grill is a stainless plate that fits along the length of waste outlet (drain) up to which your wet room shower floor may be tiled.

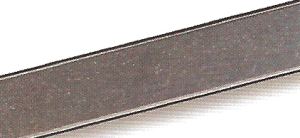

Order reference code G3
The G3 grill incorporates a tiling rebate in to which you may inlay a tile to match the surrounding shower floor. Click here for example

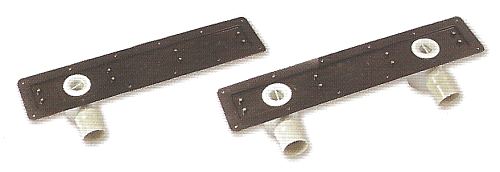

Additional waste traps

Order reference code

DUOWA90

DUOVT90

Additional traps are available (if required) to enhance the flow handling capability of the linear drain. Simple to install (during initial installation) the additional trap locates underneath the linear drain body adding another route by which waste water can be piped to the soil.

The standard single trap Linear waste will handle 24 litres per minute. (One trap is included with Duo Deck drain kit)

With two waste traps the handling capacity increases to 41 litres per minute! Horizontal or vertical options available.
Price: £49.14 inc VAT Horizontal Outlet Vertical Outlet

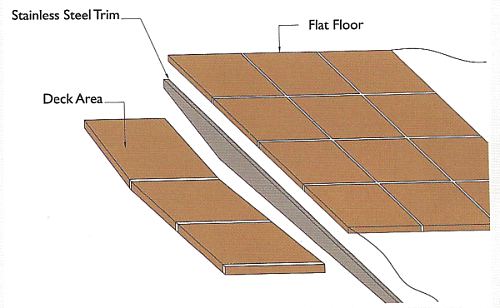

Trim detail

Each deck is supplied with a stainless steel trim detail to make good the small area where the slope of the deck and the surrounding level floor meet. This is usually sufficient when installing the deck in a corner.

If you require additional trim details these can be ordered/purchased separately.

Tile trim (Code / Length) Price inc VAT
NWFSS1 - 300/600mm

50.40
NWFSS2 - 600/600mm

56.70
NWFSS3 - 300/900mm

56.70
NWFSS4 - 300/1200mm

70.20
NWFSS5 - 300/1500mm

78.30
NWFSS6 - 900/900mm

78.30
NWFSS7 - 300/700mm

56.70




Order
