Novellini Young 2B Saloon style double shower doors


 Novellini Young 2B semi-frameless twin hinged shower doors

Index > Shower Enclosures > Novellini > Young 2.0 > Saloon style shower doors

Novellini Young 2B saloon style semi-frameless shower doors for corner or alcove shower enclosure

The Novellini YOUNG 2B shower door comprises a pair of semi-frameless shower doors hinged on opposite sides but working as one in a style reminiscent of saloon doors.

The advantage of this style of shower doors lies in the short projection of each door when open. Where each door is only approximately half the total width of the opening, they can offer a good size access with a minimal swing into the surrounding area. What's more, each door can open inward and outward making it an excellent choice where space is limited.

The saloon style shower door is suitable for use in an alcove, or use with the addition of a fixed side panel (Type F2B) to create a corner shower enclosure.

6mm toughened safety glass is coated to reduce the formation of lime scale and bacteria. This attractive shower enclosure is 2 metre tall and available with a choice of profile colour and glass type. (Clear, Aqua & Satin).

The YOUNG 2B can also be supplied in custom sizes from 570mm wide, and heights ranging from 1400mm to 2200mm making it an ideal choice for conversions or where space is tight.

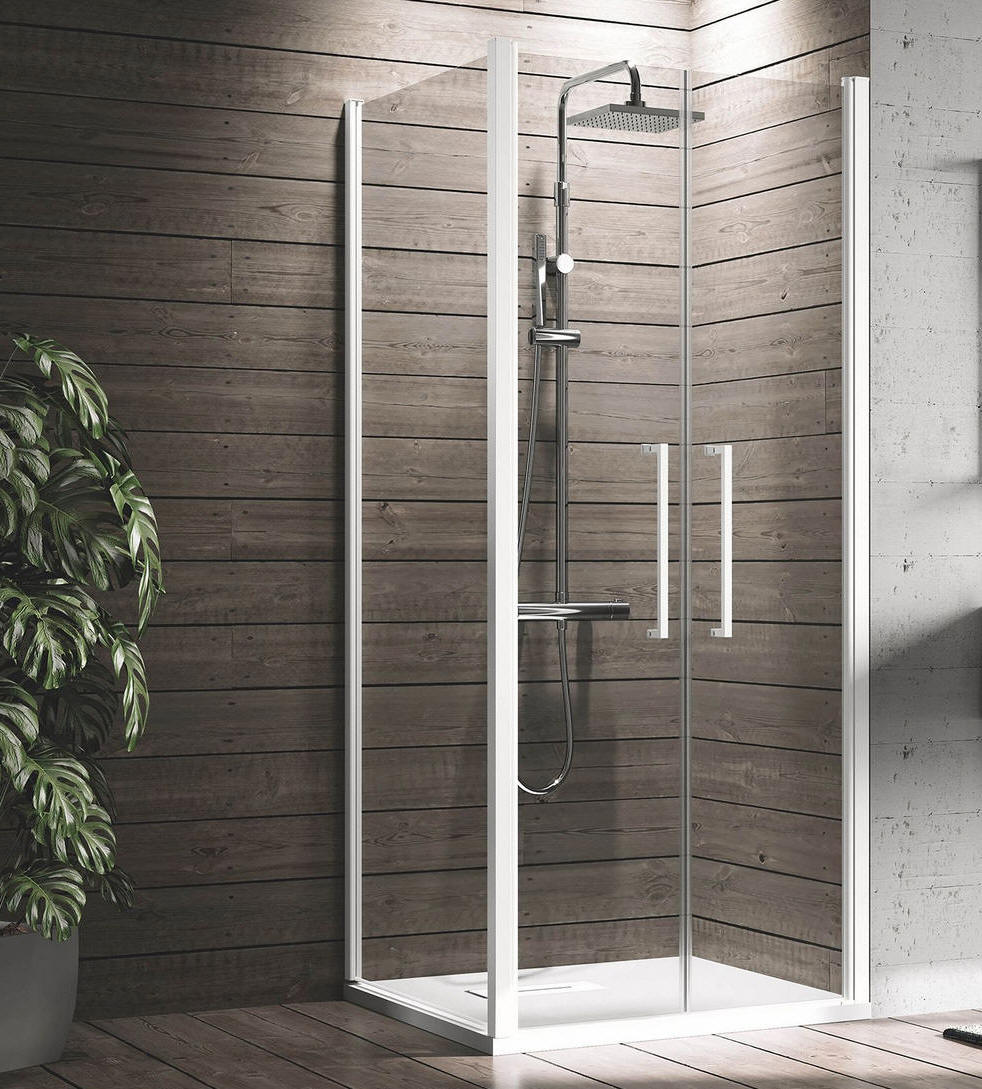

(Picture below shows the YOUNG 2B saloon style shower door plus a fixed side panel to create a corner shower enclosure. Please note an overhead bracing bar is used to steady the side panel in a corner configuration. A bracing bar is not necessary when door is used in an alcove setting.)

Novellini YOUNG 2B saloon style double doors - hinged from either side. Suitable for Alcove or Corner installation by using the F2B side panel

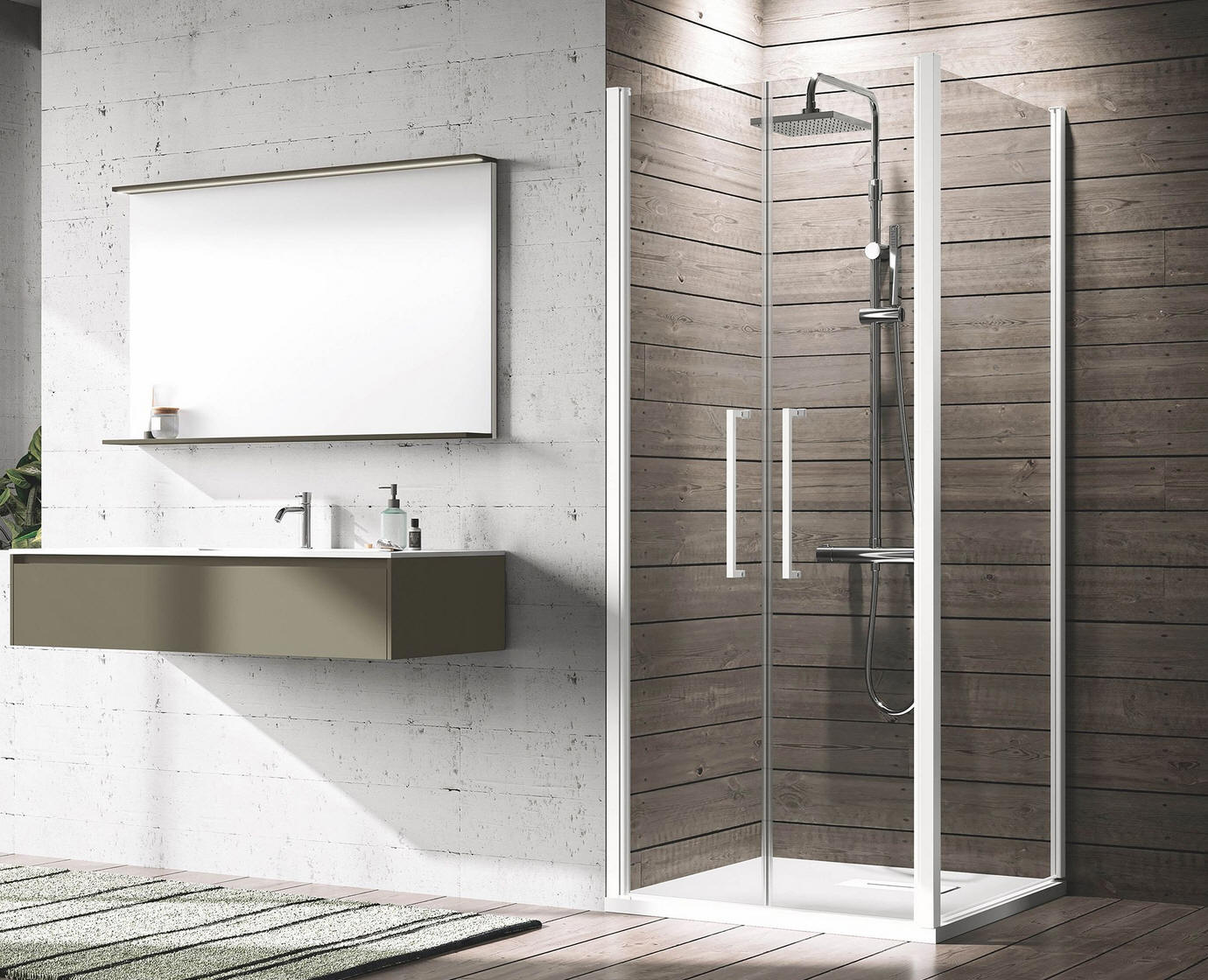

Novellini YOUNG 2B Saloon Style shower door shown in cirner setting

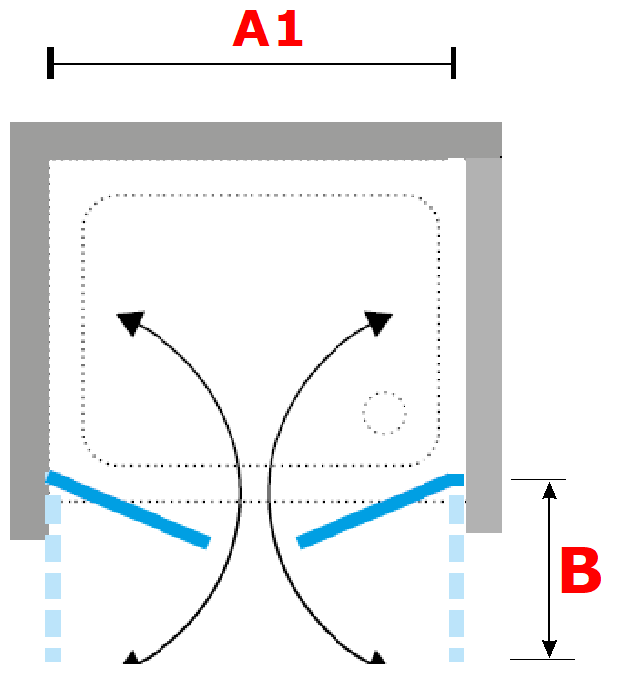

Novellini YOUNG 2B saloon style shower door diagram 2

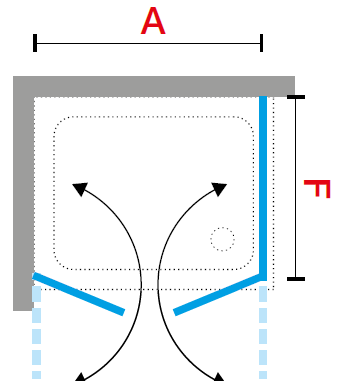

Novellini YOUNG 2B saloon style shower door diagram 3

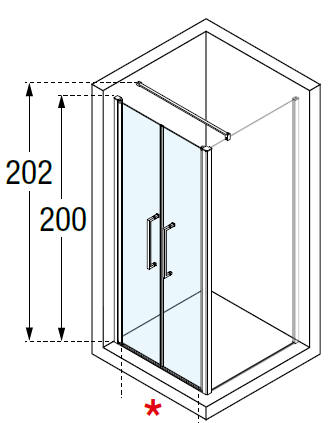

Novellini YOUNG 2B saloon style shower door diagram 1





NOVELLINI YOUNG 2B

Saloon style double shower door

Standard Width with Width in   Access (*) Swing (B)   Price inc VAT
(mm) side panel alcove         Frame colour
  A A1         Silver Chrome or Black
  580-620 570-610   450 230   543.85 596.31
  640-680 630-670   510 260   543.85 596.31
700 680-720 670-710   550 280   543.85 596.31
  720-760 710-750   590 300   569.07 624.57
760 740-780 730-770   610 310   569.07 624.57
800 780-820 770-810   650 330   569.07 624.57
  840-880 830-870   710 360   593.29 652.82
900 880-920 870-910   750 380   593.29 652.82
  940-980 930-970   810 410   593.29 652.82
1000 980-1020 970-1010   850 430   618.51 681.07
  1040-1080 1030-1070   910 460   618.51 681.07
1100 1080-1120 1070-1110   950 480   618.51 681.07
  1140-1180 1130-1170   1010 510   644.75 709.32
1200 1180-1220 1170-1210   1050 530   644.75 709.32
1400 1380-1420 1370-1410   1250 630   676.02 743.63
1500 1480-1520 1470-1510   1350 680   707.30 779.95
1600 1580-1620 1570-1610   1450 730   707.30 779.95
1700 1680-1720 1670-1710   1550 780   733.54 808.20
1800 1780-1820 1770-1810   1650 830   733.54 808.20

                 Order

Bespoke Sizes (Specials) available
Height 1400-2200   Width 570-1770     POA POA




To create a corner enclosure simply add a fixed side panel from the table below...

NOVELLINI YOUNG F2B

fixed side panel to suit 2B door

Width             Price inc VAT
(mm) Dimension F (mm)         Silver Chrome or Black
  Min Max
  570 590         287.56 316.82
  590 610         287.56 316.82
  650 670         300.68 330.95
700 670 690         300.68 330.95
  690 710         300.68 330.95
760 730 750         313.80 345.07
  750 770         313.80 345.07
  760 780         313.80 345.07
800 770 790         313.80 345.07
  790 810         313.80 345.07
  810 830         313.80 345.07
  850 870         325.90 360.21
900 870 890         325.90 360.21
  890 910         325.90 360.21
  910 930         325.90 360.21
  950 970         325.90 360.21
  970 990         341.04 375.34
  990 1010         341.04 375.34
  1010 1030         341.04 375.34
1200 1170 1190         341.04 375.34
  1190 1210         341.04 375.34

                 Order
Bespoke Sizes (Specials) available
Bespoke sizes are available. Please enquire for quotation.
Size range: Width Min 570mm, Height 1400mm to 2200mm






Been offered a 'Price Match'? Read more...

Options

Customise your enclosure with the following frame colours and glass types.

Frame colour



Silver

Black

Chrome





Sliver frame option

Black frame option

Chrome frame option


Glass Type

Clear

Aqua

Satin





Clear glass sample

Aqua glass sample

Satin glass sample





Product Literature
Product data sehet Product Installation 1 Product Installation 2
