 Novellini Young 1B hinged shower door (with profile)


 Novellini Young 2 (1B) alcove shower door

Index > Shower Enclosures > Novellini > Young 2.0 > 1B Hinged door for alcove shower enclosure

Novellini Young 1B Hinged shower door for an alcove, or

corner with the addition of a fixed side panel

A glass hinged shower door that can be used to enclose an alcove shower or used in junction with the matching side panel (F1B) to make a corner shower enclosure.

The Novellini Young 2 range boasts 6mm thick toughened safety glass (coated with Crystal Clear treatment to help negate the formation of lime scale and bacteria) and an impressive height of 2 metres.

NEW Black profile colour option available

Novellini YOUNG 1B - Semi-frameless hinged shower door suitable for alcove or corner shower enclosure

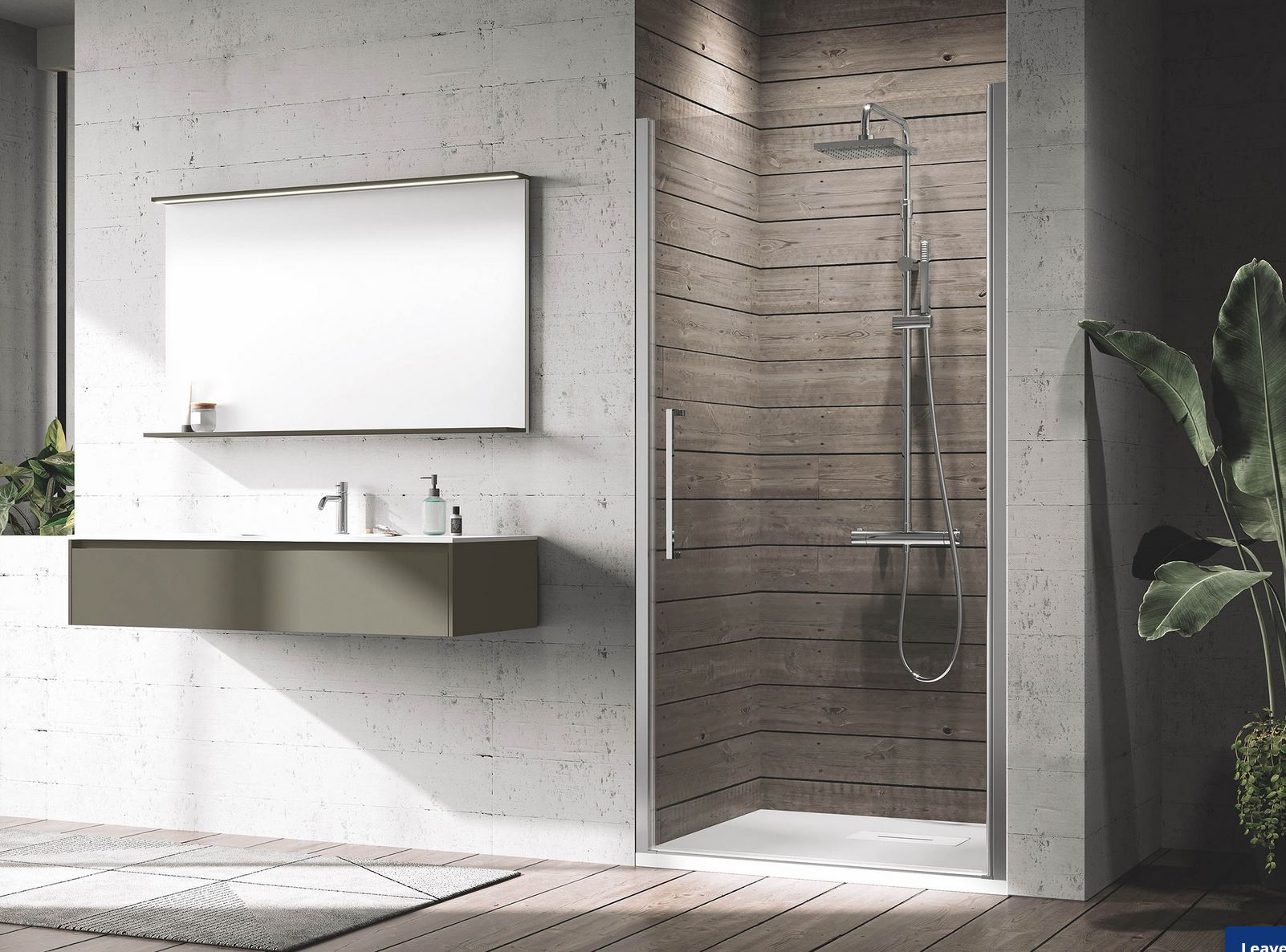

Above: The Novellini 1B semi-frameless hinged shower door shown with Chrome wall profiles in an alcove setting. Note how the door is able to swing both inward and outward.

Novellini Young 2 F1B shower enclosure

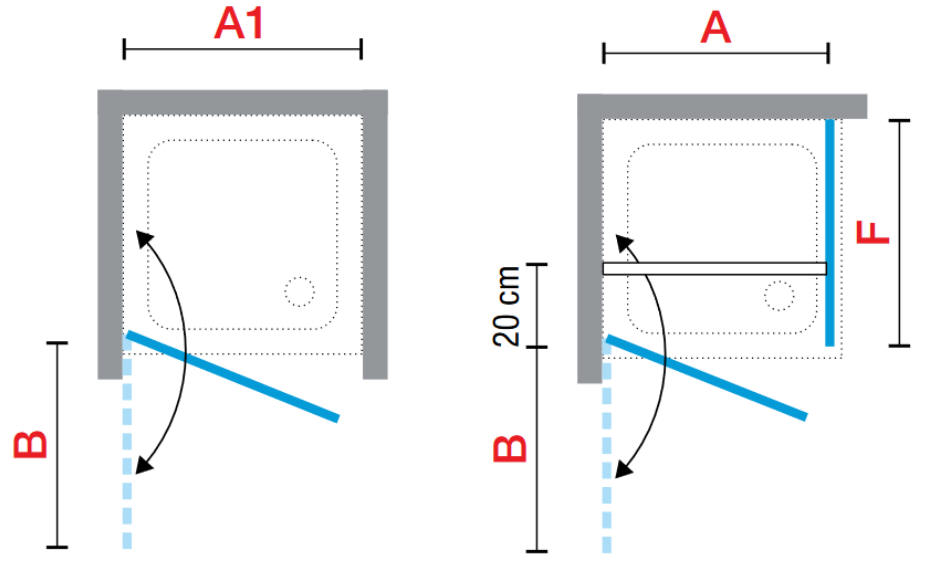

Novellini Young 2 (1B) alcove shower door diagram (1)


Door opens inward and outward.

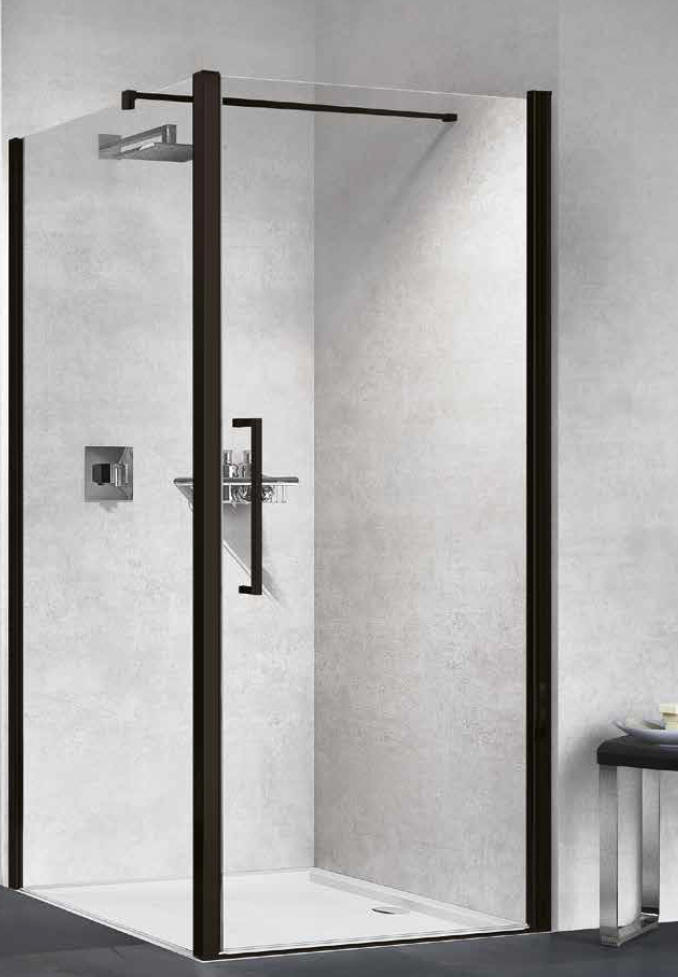

Below: The same hinged door but with a fixed F1B side panel to create a corner shower enclosure. The NEW matt black colour option gives an ultra-modern appearance.

Novellini 1B and F1B hinged shower door and fixed side panel creating a corner shower enclosure. Shown here with the matt black colour option.



Custom 1B door sizes available


Height 1400mm 2200mm   - -   poa poa
Width 540mm 990mm   - -   poa poa



NOVELLINI YOUNG 1B

HINGED SHOWER DOOR (With profile)

With closer profile - suitable for corner (with side panel) or alcove
  Actual Dimension (A)   Access (*) Swing (B)
Standard with in         Price inc VAT
(mm) Side panel Recess         Frame colour
              Silver Chrome
  580-620 570-610   470 480   383.42 421.76
700 680-720 670-710   570 580   383.42 421.76
760 730-770 720-760   620 630   383.42 421.76
800 780-820 770-810   670 680   415.70 458.08
  800-840 790-830   690 700   415.70 458.08
  830-870 820-860   720 730   433.87 476.24
900 880-920 870-910   770 780   433.87 476.24
  930-970 920-960   820 830   450.01 494.41
1000 980-1020 970-1010   870 880   450.01 494.41

Special Sizes
This door can be supplied to bespoke heights. Please enquire.
                 Order

 10522



NOVELLINI YOUNG F1B

Fixed side panel to suit 1B door

Standard             Price inc VAT
(mm) Dimension F         Frame colour
  from to         Silver Chrome
  570 590         275.45 302.70
  590 610         275.45 302.70
  650 670         293.62 321.87
700 670 690         293.62 321.87
  690 710         293.62 321.87
760 730 750         311.78 343.06
  750 770         311.78 343.06
800 770 790         311.78 343.06
  790 810         311.78 343.06
  850 870         330.95 363.24
900 870 890         330.95 363.24
  890 910         330.95 363.24
  950 970         330.95 363.24
1000 970 990         348.10 382.41
  990 1010         348.10 382.41
1200 1170 1190         348.10 382.41
  1190 1210         348.10 382.41

Special Sizes
This side panel suits the YOUNG 1B door and can be supplied to bespoke heights.
Please enquire.
10522



Custom side panel sizes available (POA)

    Height     1400mm - 2200mm

    Width         200mm - 1200mm





To create a corner shower enclosure add...

F1B fixed side panel

Novellini Young 2 (F1B) corner shower enclosure showe side panel

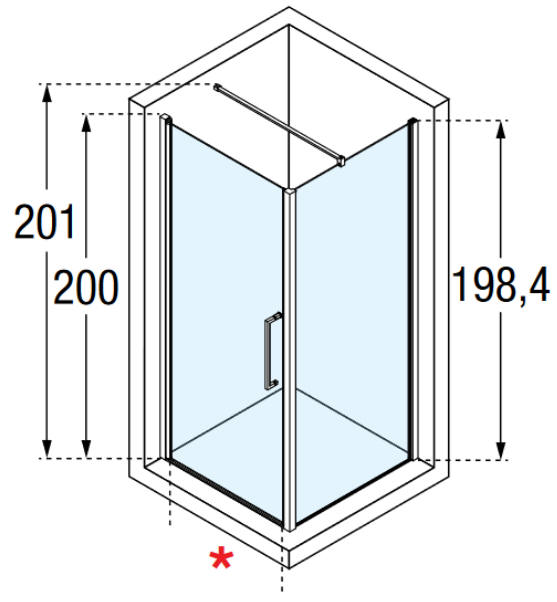

Novellini Young 2 (F1B) corner shower enclosure diagram (1)

Been offered a 'Price Match'? Read more...

Options

Customise your enclosure with the following frame colours and glass types.

Frame colour

Silver

Black

Chrome



Sliver frame option

Black frame option

Chrome frame option


Glass Type

Clear

Aqua

Satin



Clear glass sample

Aqua glass sample

Satin glass sample





Product Literature
Product data sheet Installation Handbook
