 Novellini Lunes G Pivot shower door


 Novellini Lunes (G) framed single panel pivot shower door for recess, corner or mid-wall

Index > Shower Enclosures > Novellini > Lunes > Pivot shower door

Novellini Lunes G pivot shower door

The Novellini Lunes G framed pivot shower door is available in sizes from 700mm to 1000mm and is suitable for use in alcove, corner and mid-wall installations.

The Lunes G pivot shower door is available with a choice of frame colours - white, silver or chrome. There is also a choice of glass types - clear, obscure and Esprit printed modesty pattern.

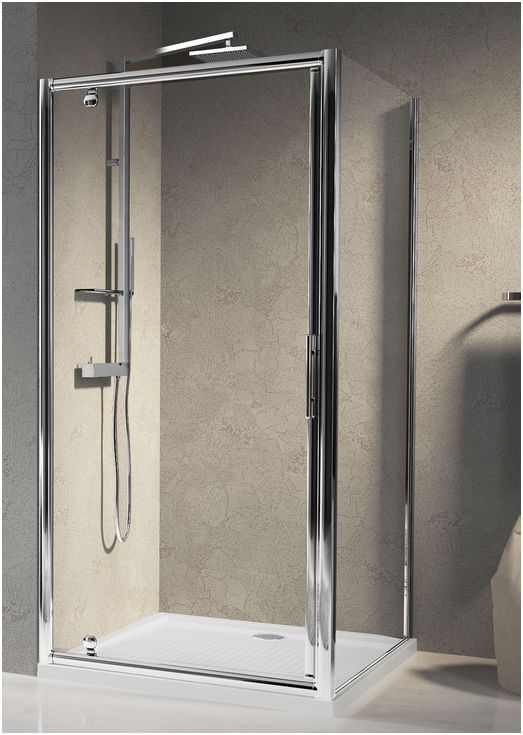

Shown here with a Lunes F fixed side panel (sold separately) to create a corner shower enclosure.

Lunes G hinged shower door shown here with a Lune F fixed side panle configured as a corner shower enclosure Simply choose from the available sizes shown on the table below.

Create a corner or mid-wall enclosure by adding fixed side panels. Choose from the options given on the table below.

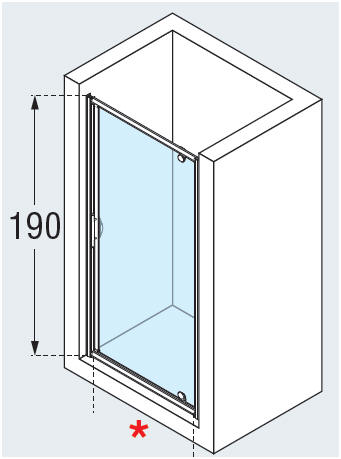

Lunes G hinged shower door diagram

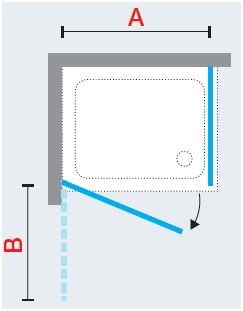

Novellini Lunes G corner

configured as a corner shower enclosure against two solid walls (additional side panel)

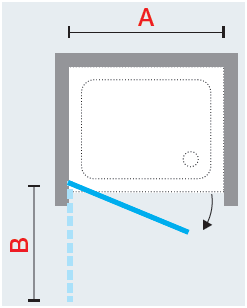

Novellini Lunes G Alcove

configured as a corner shower enclosure against two solid walls

Novellini Lunes G mid-wall

configured for Mid-wall with the addition of fixed side panels - one left, one right

Lunes G corner shower diagram Lunes G alcove shower diagram


Can be handed either L or R





NOVELLINI LUNES G pivot shower door

Standard Overall Width (A)   Access Swing   Price inc VAT
(mm)     * B   Frame colour
  from to         Silver/White Chrome
700 660 720   430 400   207.48 221.76
760/800 720 780   490 460   212.52 225.96
800 780 840   550 520   216.72 230.16
900 840 900   610 580   222.60 237.72
1000 960 1020   730 700   228.48 242.76

Other sizes
> 600 660   370 340   200.76 215.88
> 900 960   670 640   228.48 242.76

Special Order
  Min Max
Height 1600 2000         321.72 345.24




to create a corner or mid-wall enclosure add...

NOVELLINI LUNES F enclosure fixed side panel

Standard             Price inc VAT
(mm)             Frame colour
  from to         Silver/White Chrome
700 660 720         174.72 189.00
760 720 780         181.44 194.04
800 840 900         196.56 208.32
900 960 1020         213.36 225.12


Other sizes



1000 780 840         187.32 199.92
1200 900 960         207.48 220.08





Been offered a 'Price Match'? Read more...

Options

Customise your enclosure with the following frame colours and glass types.

Frame colour

White

Silver

Chrome





White frame option

Sliver frame option

Chrome frame option




Glass Type

Clear

Obscure

Esprit Printing

Aqua



Clear glass sample

Obscure glass

Esprit printing modesty glass





Product Literature
Product data sheet Installation Handbook 1
