 Novellini LUNES 2.0 G Pivot shower door


 Novellini Lunes 2.0 pivot shower door

Index > Shower Enclosures > Novellini > Lunes 2.0 > Pivot shower door

Novellini LUNES 2.0 G framed pivot shower door

The LUNES 2.0 G pivot shower door can be installed to an alcove, in a corner or mid-wall with the addition of the requisite fixed side panel Configuration.

This framed pivoting shower door can be handed to open to the left or right. Although the standard height is 1950mm, the door can be manufactured to custom heights between 1600mm and 2000mm.

Available with a choice of 5mm thick glass types (clear, Aqua, Niva and Lunes 2.0 print) and frame colours of white, silver, matt silver or chrome finishes.

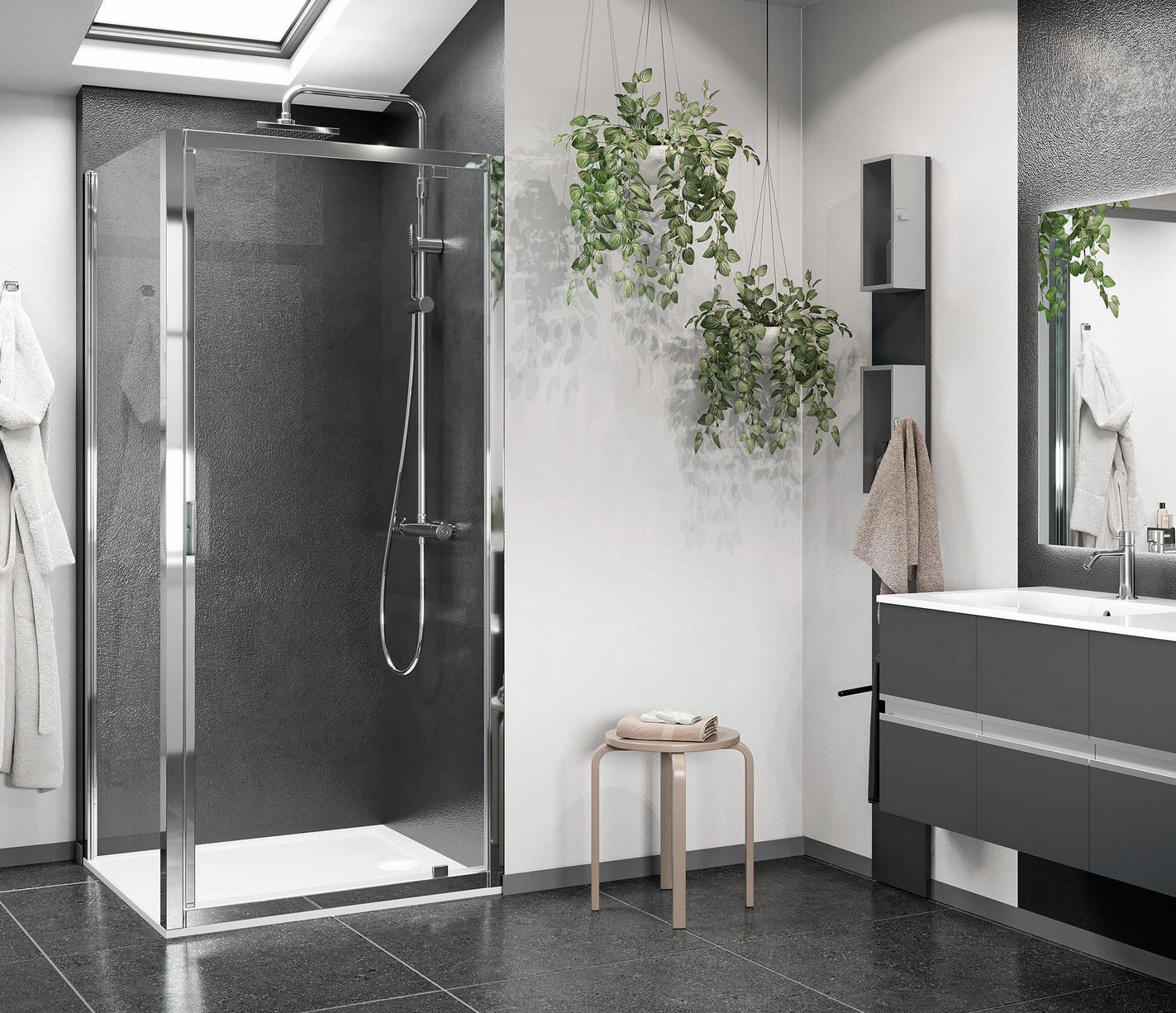

LUNES 2.0 G pivot shower door shown with fixed side panel (F) in a bathroom setting.

Novellini LUNES 2.0 G - Pivot shower door

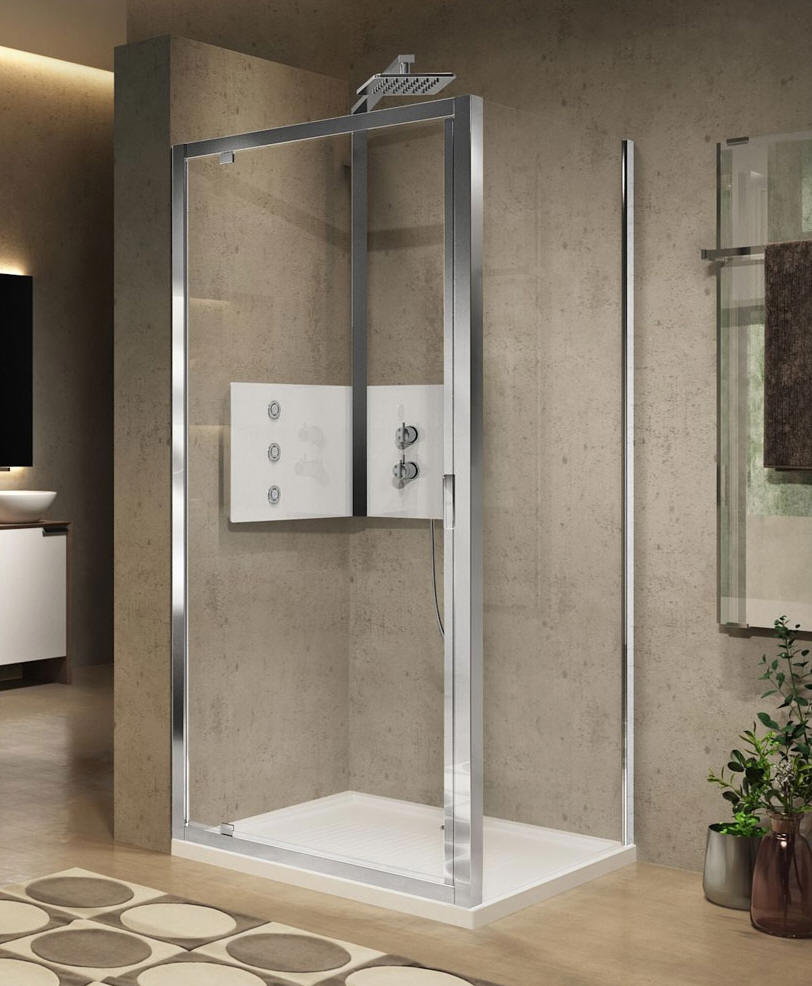

Above: LUNES 2.0 G pivot shower door configured as a corner enclosure by adding a fixed side panel. Door on its own may be used to enclose an alcove.



To create a corner enclosure

Simply add a fixed side panel from the LUNES 2.0 F or FZ range. (See below)

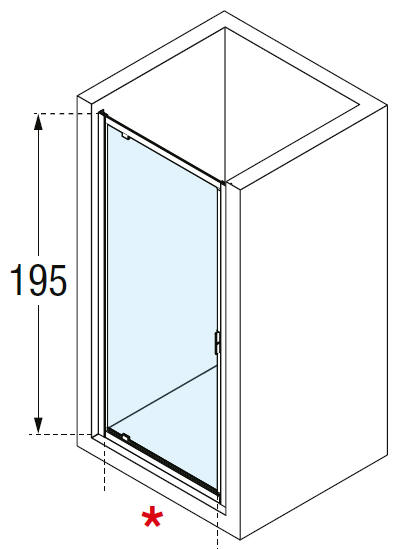

Novellini Lunes 2 pivot shower door diagram



Above: Diagram shows the LUNES 2.0 G pivot shower door in an alcove setting with left hand pivot

Novellini LUNES 2.0 G pivot shower door in an ALCOVE

Door can pivot left or right

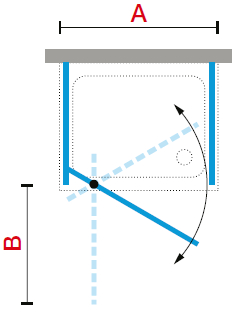

Novellini Lunes 2 G diagram showing an alcove shower enclosure with pivot shower door

Novellini LUNES 2.0 G pivot shower door in a corner

Pivot door + Fixed side panel right or left

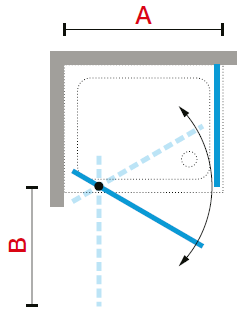

Novellini Lunes 2 G corner enclosure pivot shower door diagram

Novellini LUNES 2.0 G mid-wall pivot door shower

enclosure

Pivot door + fixed panels right and left

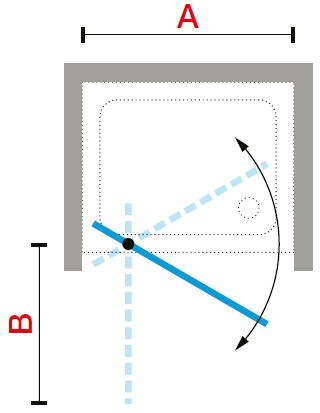

Novellini Lunes 2 G diagram showing mid-wall shower enclosure with pivot shower door and 2 fixed panels



Novellini LUNES 2.0 fixed shower side panels

To create a corner or mid-wall shower enclosure add fixed shower screens from the

LUNES 2.0 F or FZ range.



Link through to the LUNES 2.0 F and FZ range of fixed shower side panels



NOVELLINI LUNES 2.0 G

Pivot shower door

  Overall Width   Swing Access   Price inc VAT
(mm) A   B *   Frame colour
  from to         Silver/Matt Silver/White Chrome
  600 660   410 400   £260.32 £278.48
700 660 720   470 460   £268.39 £286.55
760 720 780   530 520   £274.45 £292.61
800 740 800   550 540   £279.49 £298.66
  780 840   560 550   £279.49 £298.66
900 840 900   620 610   £287.56 £306.73
  900 960   680 670   £296.64 £313.80
1000 960 1020   740 730   £296.64 £313.80


Special Order
  Min Max
Height 160 2000   Special Order   POA POA

 010522

























Been offered a 'Price Match'? Read more...

Options

Customise your enclosure with the following frame colours and glass types.

Frame colour

White

Silver

Chrome

Matt Silver



White frame option

Sliver frame option

Chrome frame option

Matt Silver frame option


Glass Type

Clear

Aqua

Niva

Lunes 2 Print



Clear glass sample



Product Literature
Installation Handbook 1 Installation Handbook 2
