 Novellini Kuadra H MIRROR walk in shower screen with reflective mirror glass


 Novellini KUADRA H Mirror glass walk in shower panel

Index > Shower Enclosures > Novellini > Kuadra Range > Kuadra H Collection > Kuadra H SPY

Novellini Kuadra H MIRROR glass walk in shower screen

As the name suggests, the Kuadra H MIRROR glass panel is a variant of the KUADRA H series

but with mirrored glass finish. Available in two versions, one with a mirrored modesty panel, the

other with the glass screen fully mirrored (known as SPY), each bring an opulent luxury to your

bathroom design.



The fully mirrored 'SPY' can be manufactured to custom width and height sizes from

200mm-1800mm wide, and 800mm-2400mm tall.



The modesty panel design ('MIRROR') is only available at a standard height of 2000mm and from

670mm-1400mm wide.



The 'MIRROR' and 'SPY' versions are designed for fixing to an adjacent wall and offer a generous

30mm of adjustment in the wall profile just in case your walls aren't absolutely perpendicular.

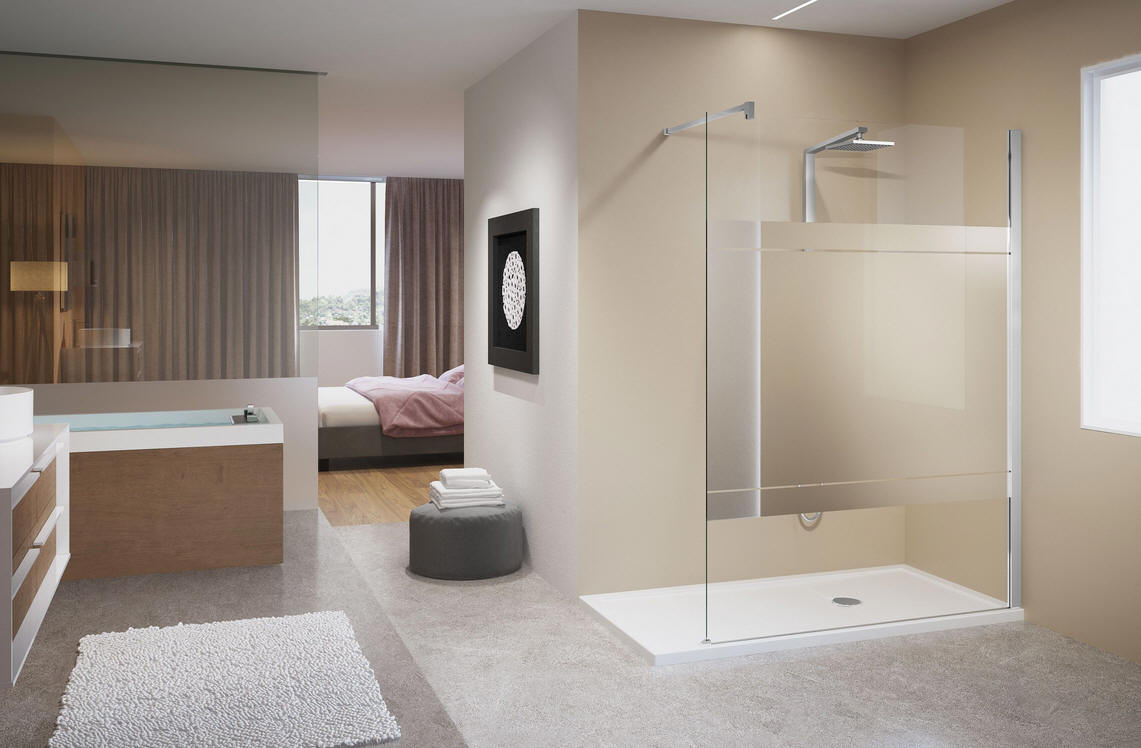

Novellini KUADRA H MIRROR shower screen with mirrored modesty panel
Above: Image shows the KUADRA H MIRROR walk in shower screen with mirrored modesty panel.

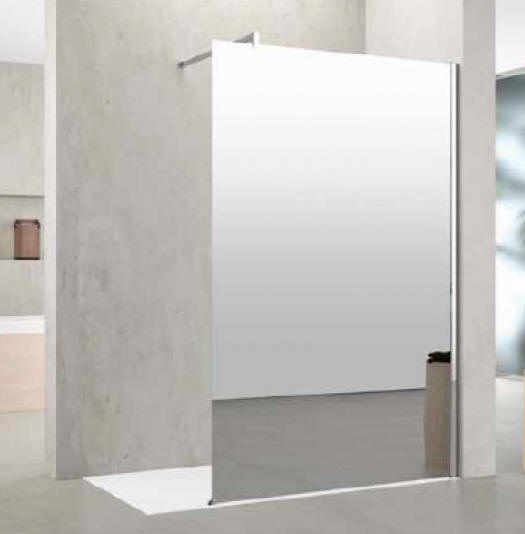

Below: The KUADRA H SPY fully mirrored walk in shower screen.

Novellini KUADRA H SPY fully mirrored walk in shower enclosure screen


KUADRA H SPY Diagram 1

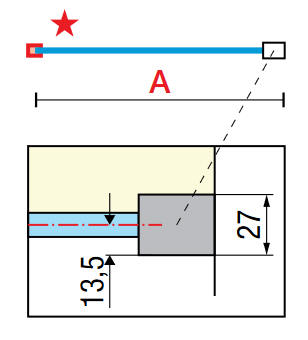

KUADRA H SPY wall profile detail

Novellini KUADRA H walk in shower screen foot options



Price shown is per panel. An assortment of panels from the Novellini Kuadra range may be

added to the Kuadra H screen to create a custom walk in shower enclosure. Pleae don't hesitate to

call if you require assistance.



NOVELLINI Kuadra H MIRROR

walk in shower screen price list

Screen size (mm)
Nominal A     Ģinc VAT
  Adjusts       Glass type
          Clear Mirror
300 270-300
400 370-400
500 470-500
600 570-600
700 670-700
750 720-750
800 770-800
900 870-900
1000 970-100
1100 1070-1100
1200 1170-1200
1300 1270-1300
1400 1370-1400



Specials
350-970 wide 180-220 tall
970-1800 wide 220-220 tall






Kuadra H SPY and MIRROR shower enclosure options

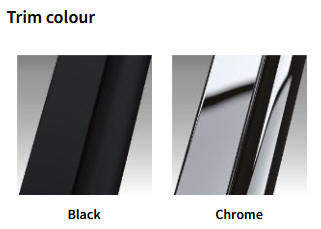

Customise your enclosure with the following wall profile colours.

Unlike the standard KUADRA H shower screen, the 'MIRROR' and 'SPY' models are only available in the two profile colours shown.

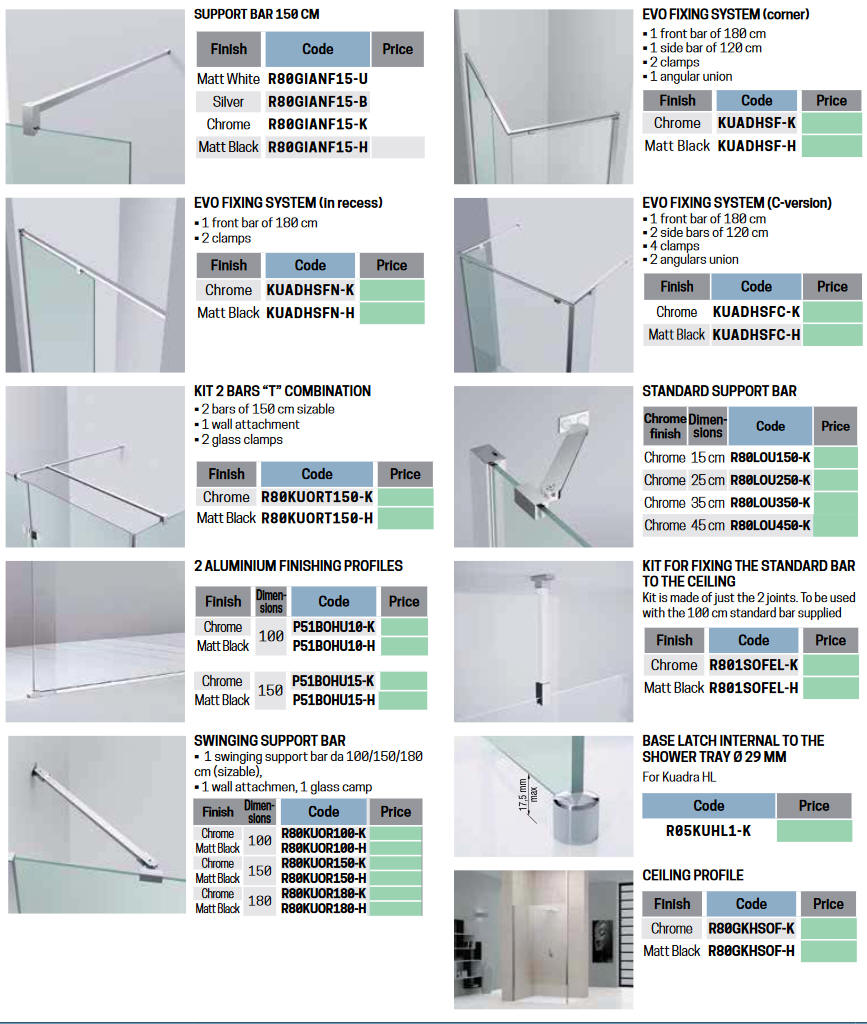

Other frame and support options available for the KUADRA H MIRROR and SPY shower screen

KUADRA H MIRROR frame and support options 1



Product data sheet Installation Handbook (2G)



Novellini Kuadra H SPY - mirror finish shower screen



Above: The Kuadra H Spy - shower screen shown here with mirror finish (see out, not in)



Below: The Kuadra H Mirror - walk in shower screen with mirrored modesty panel



Novellini Kuadra H MIRROR modesty panel walk in shower screen
