Novellini MONO Deck wet room shower floor former with linear wall drain


Novellini wet room shower floor former with linear wall drain

Index > All about wet rooms > Wet room shower floor formers > MONO DECK

The wet room shower floor former suitable for use with timber floors

The MONO Deck wet room shower floor former provides a single gentle preformed slope towards a linear style waste outlet situated at the base of an adjacent wall. The MONO Deck is suitable for a timber floor.

Simply replace what would have been the floor with your MONO Deck and the slope for a perfect wet room shower is formed. When used in conjunction with wall and floor waterproof tanking kits your installation will remain totally watertight for many years to come.

Novellini MONO Deck wet room shower floor former will a single slope to a linear wall drain.

Novellini MONO Deck IMAGE 2

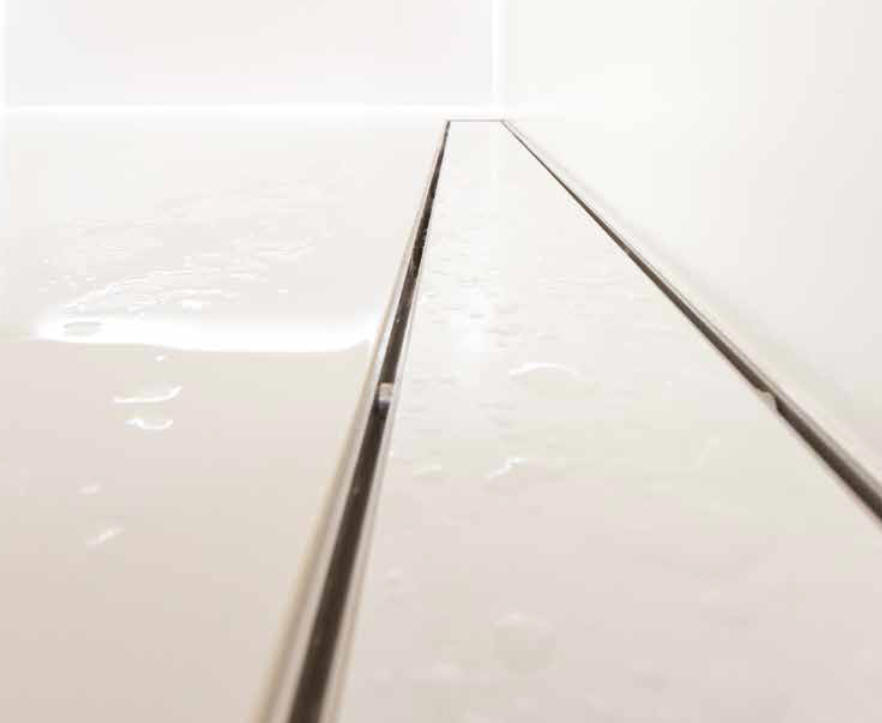

The MONO Deck lends itself to the use of large tiles as the number of cuts is minimised. With only the wall behind the linear drainage gully (rather than a small slope on the wall side of the drain) there is no need for difficult or tricky tiling cuts. The beautiful unobtrusive finish that can be achieved will adorn even the most contemporary of bathrooms.

The superb appearance of the linear wall drain can further be enhanced with the addition of a waste cover that can be tiled. See the G3 waste option below.

  • One way fall is suited to large tiles

  • MONO Deck is easily trimmed

  • 'Tile in' G3 linear waste cover option

  • Lifetime guarantee

  • 22mm thickness

  • Choose from 8 sizes otions

  • Flow rate up to a massive 41 l/min

Wet room floor construction

To view a typical cross-section of a timber floor installation using a Novellini wet room floor deck in conjunction with Tilesafe (waterproof floor membrane) and Wallsafe (waterproof liquid wall membrane) Click Here

NOVELLINI MONO DECK wet room shower floor former kit sizes

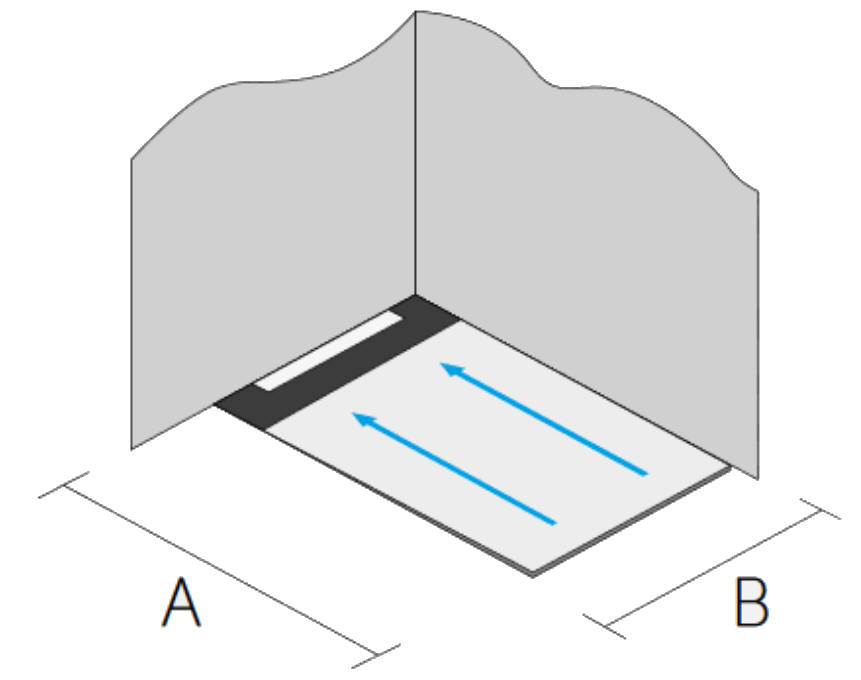

Short wall layout

Dimension A Dimension B Grill length Code £ inc VAT
1000mm Trimmable

800-1000mm

700mm MONOKIT1 540.32
1200mm MONOKIT2 576.12
1400mm MONOKIT3 594.02
1700mm MONOKIT 4 697.14

Order

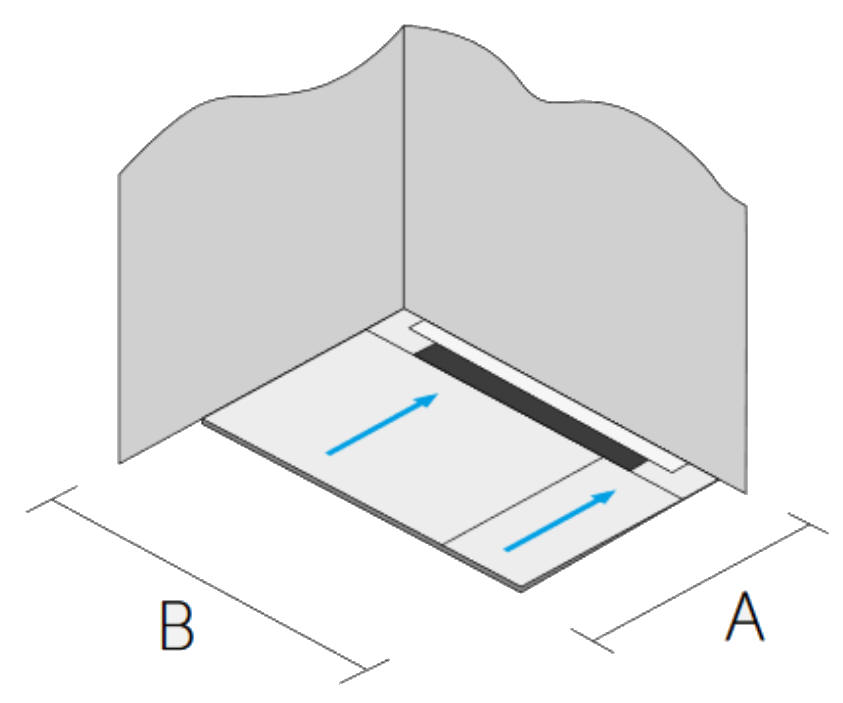

Long wall layout

Dimension B Dimension A Grill length Code £ inc VAT
1200mm Trimmable

800-1000mm

900mm MONOKIT5 577.82
1400mm 1100mm MONOKIT6 723.55
1600mm 1300mm MONOKIT7 751.68
1800mm 1500mm MONOKIT8 778.95

Order





Custom Board and Drainage Gully sizes are available to special order upon request. Please don't hesitate to enquire.



Novellini linear gully floor waste outlet and grill options

The Duo Deck wet room shower floor former is supplied with a linear waste outlet and trap.

The linear drain has a stainless steel cover running it's length which can be lifted for cleaning purposes. The standard linear drain can handle an impressive 25 l/min. It is however possible to add an additional trap that easily installs* in the drainage component that can significantly increase the waste handling capacity to a massive 41 litres per minute!

The standard horizontal trap has a multi-directional 50mm outlet spigot and the kit is supplied with a 50mm-42mm reducer for connection to UK plastic pipework.

There is an option to change the cover plate to one with a tiling rebate so tiles may be inlaid. Please see below.


Order reference code G1

The G1 standard grill is a stainless plate that fits along the length of waste outlet (drain) up to which your wet room shower floor may be tiled.

Unless specified to the contrary this grill will be supplied with your order.


Price: Included in DUO Deck price

Order reference code G3
The G3 grill incorporates a tiling rebate in to which you may inlay a tile to match the surrounding shower floor. Click here for example

When specified, this grill will be supplied in place of the standard G1 grill. An additional cost applies for this option.




Price: £59.75 inc VAT


Additional waste traps (if required)
Order reference code

DUOWA90

DUOVT90

Additional traps are available (if required) to enhance the flow handling capability of the linear drain. Simple to install (during initial installation) the additional trap locates underneath the linear drain body adding another route by which waste water can be piped to the soil.

The standard single trap Linear waste will handle 25 litres per minute. (One trap is included with Duo Deck drain kit)

With two waste traps the handling capacity increases to 41 litres per minute! Horizontal or vertical options available.

Price: £45.17 inc VAT Horizontal Outlet Vertical Outlet
