Impey Aquagrade screed floor former for wet room showers

Aquagrade


Wet room shower floor trowel former for a solid screed floor









This product is no longer available















Aquagrade for a perfect gradient in a solid (screed) wet room shower floor

Wet room shower areas have been made so much easier thanks to the advent of floor formers. Designed by Impey UK, the Aquagrade is a clever trowel guide that ensures your floor slopes at exactly the right angle towards the drain while laying the screed.

Aquagrade takes the guesswork out of creating a screed wet room shower floor. The clever lattice design not only guides you float it also helps prevent sagging during the curing process.

Aquagrade alleviates the complexities of manually creating a perfect fall in a screed floor.

To compliment their award-winning and innovative Aqua-Dec easyfit system the truly unique Aqua-Grade system is the perfect solution for those looking to create screed (solid) wet room shower floor areas.

And don't forget, with AQUAGRADE we give you your choice of waste outlet FREE!



There are two types of Aqua-grade

...with a Square gully

Impey AQUAGRADE screed floor shower wet room floor former

...with a Linear gully

Each type is available in a range of sizes



Guide to Sizing an Wet Room shower area







Click Here to view installation images


Click Here to view Installation videos





Aqua-grade with square waste outlet gully



Click an Image to enlarge







Aqua-grade Square - No Wall, Four Falls

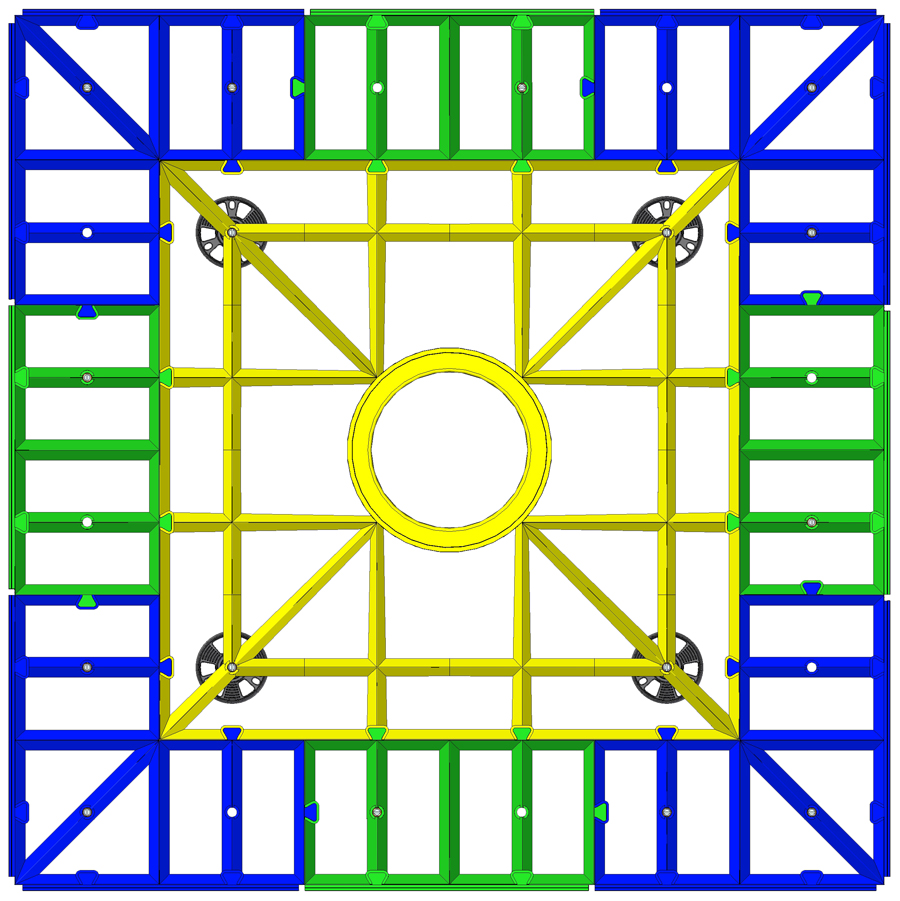

Aqua-Grade 1 (wet room shower area 900 x 900)

No wall, Four Falls

Code:

AG9090/4F

Impey AQUAGRADE 1

Kit comprises of:

1 x 600mm x 600mm starter base

4 x 300mm x 150mm corner section

4 x 300mm straight infill section

16 x 20mm foot spacer

16 x 20mm x M8 adjustable foot

4 x Foot mounting plate

Formerly known as: AG1 - 900 x 900mm

Price: £inc VAT

(price includes choice of waste. To view waste options click here)

Order

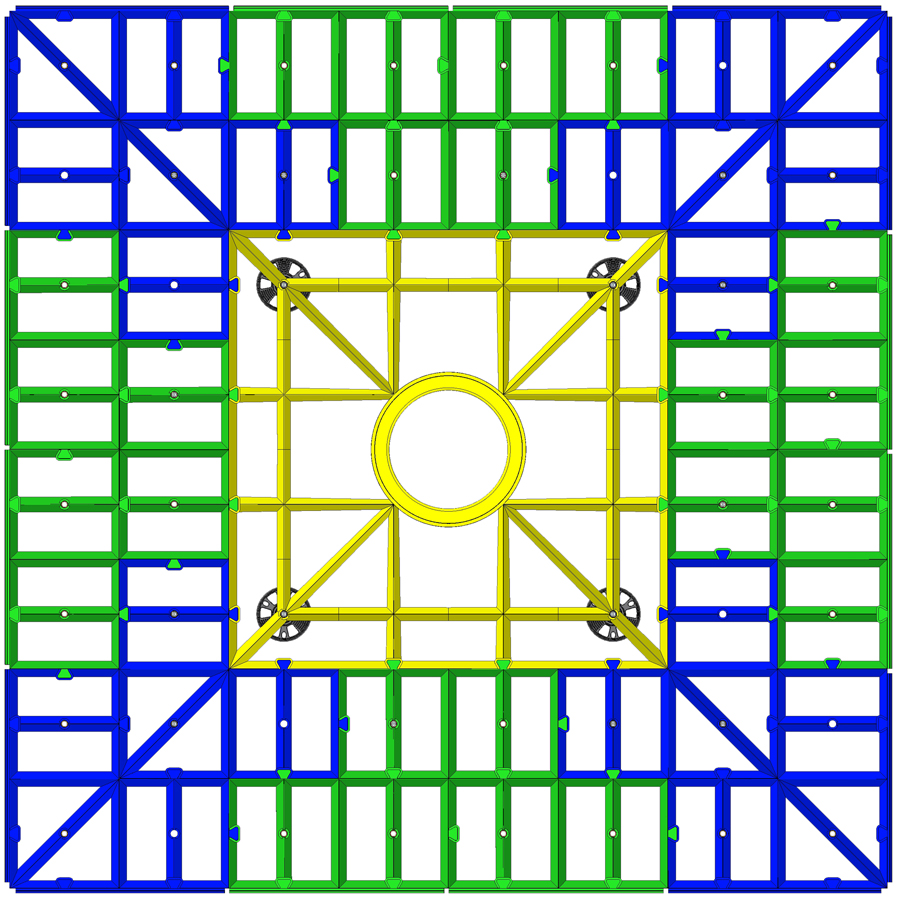

Aqua-Grade 4 (wet room shower area 1200 x 1200)

No wall, Four Falls

Code:

AG120120/4F

Impey AQUAGRADE 4



Kit comprises of:

1 x 600mm x 600mm starter base
8 x 300mm x 150mm corner section
12 x 300mm straight infill section
32 x 20mm foot spacer

32 x 20mm x M8 adjustable foot
4 x Foot mounting plate

Formerly known as: AG4 - 1200 x 1200mm

Price: £inc VAT

(price includes choice of waste. To view waste options click here)

Order





Aqua-Grade 7 (wet room shower area 1500 x 1500)

No wall, Four Falls

Code:

AG150150/4F

Impey AQUAGRADE 7

Kit comprises of:

1 x 600mm x 600mm starter base
12 x 300mm x 150mm corner section
24 x 300mm straight infill section
72 x 20mm foot spacer
52 x 20mm x M8 adjustable foot
4 x Foot mounting plate

Formerly known as: AG7 - 1500 x 1500mm

Price: £ inc VAT

(price also includes choice of waste. To view waste options click here)

Order










Aqua-grade - One Wall, Three Falls



Aqua-Grade 3 (wet room shower area 1200 x 900)

One wall, Three Falls

Code:

AG12090/3F

Impey AQUAGRADE 3

Kit comprises of:

1 x 600mm x 600mm starter base
4 x 300mm x 150mm corner section
7 x 300mm straight infill section
2 x 450mm straight infill section
23 x 20mm foot spacer

23 x 20mm x M8 adjustable foot
4 x Foot mounting plate

Formerly known as: AG3 - 1200 x 900mm

Price: £---- inc VAT

(price includes choice of waste. To view waste options click here)

Order

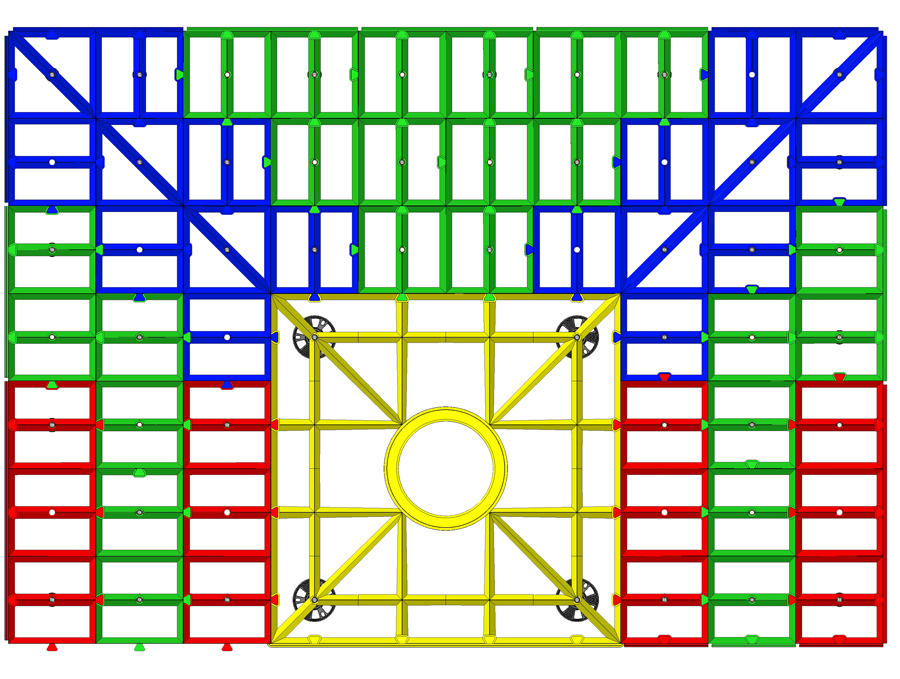

Aqua-Grade 6 (wet room shower area 1500 x 1050)

One wall, Three Falls

Code:

AG150105/3F

Impey AQUAGRADE 6

Kit comprises of:

1 x 600mm x 600mm starter base
6 x 300mm x 150mm corner section
12 x 300mm straight infill section
4 x 450mm straight infill section
47 x 20mm foot spacer
35 x 20mm x M8 adjustable foot
4 x Foot mounting plate

Formerly known as: AG6 - 1500 x 1050mm

Price: £---- inc VAT

(price includes choice of waste. To view waste options click here)

Order

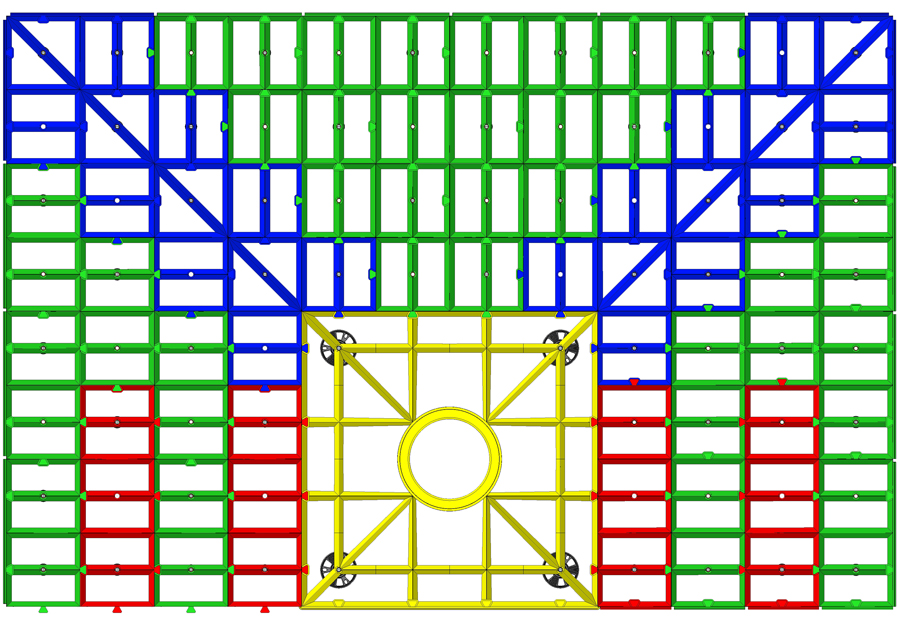

Aqua-Grade 8 (wet room shower area 1800 x 1200)

One wall, Three Falls

Code:

AG180120/3F

Impey AQUAGRADE 8

Kit comprises of:

1 x 600mm x 600mm starter base
8 x 300mm x 150mm corner section
22 x 300mm straight infill section
4 x 450mm straight infill section
77 x 20mm foot spacer
50 x 20mm x M8 adjustable foot
4 x Foot mounting plate

Formerly known as: AG8 - 1800 x 1200mm

Price: £---- inc VAT

(price also includes choice of waste. To view waste options click here)

Order










Aqua-grade - Two Walls, Two Falls

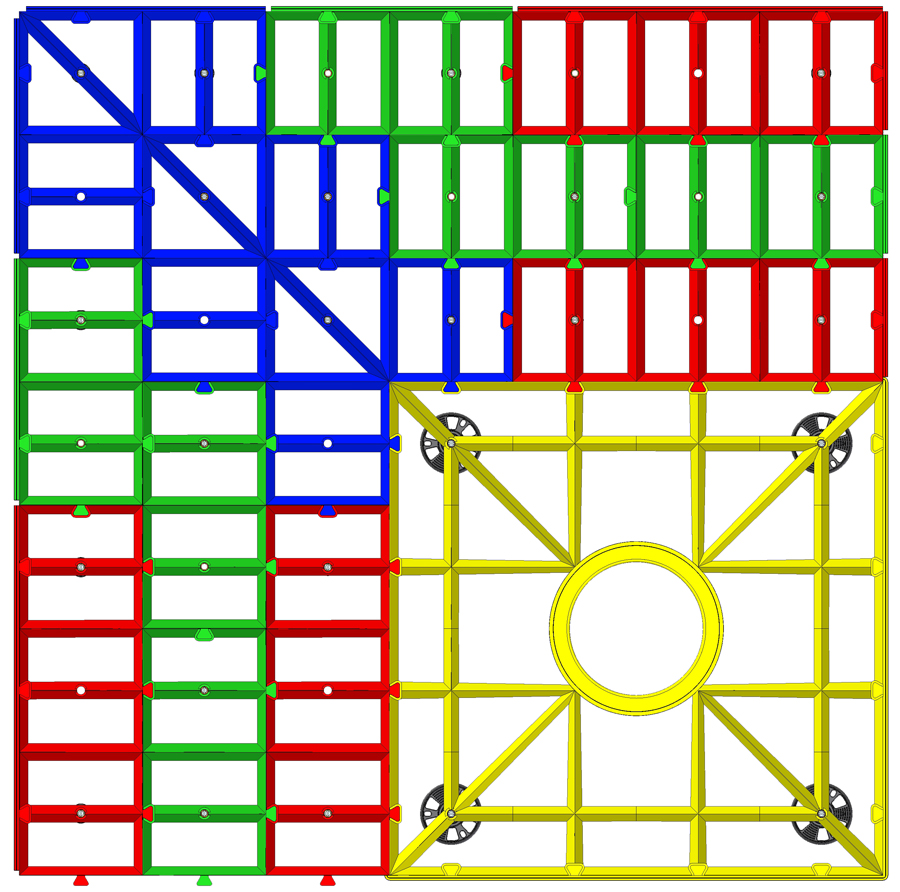

Aqua-Grade 2 (wet room shower area 1050 x 1050)

Two walls, Two Falls

Code:

AG105105/2F

Impey AQUAGRADE 2



Kit comprises of:

1 x 600mm x 600mm starter base

3 x 300mm x 150mm corner section

6 x 300mm straight infill section

4 x 450mm straight infill section

31 x 20mm foot spacer

24 x 20mm x M8 adjustable foot

4 x Foot mounting plate

Formerly known as: AG2 - 1050 x 1050mm

Price: £---- inc VAT

(price includes choice of waste. To view waste options click here)

Order





Aqua-Grade 9 (wet room shower area 1200 x 1200)

Two walls, Two Falls

Code:

AG120120/2F

Kit comprises of:

1 x 600mm x 600mm starter base

3 x 300mm x 150mm corner section

6 x 300mm straight infill section

4 x 450mm straight infill section

31 x 20mm foot spacer

24 x 20mm x M8 adjustable foot

4 x Foot mounting plate

Formerly known as: AG2 - 1050 x 1050mm

Price: £----- inc VAT

(price includes choice of waste. To view waste options click here)

Order

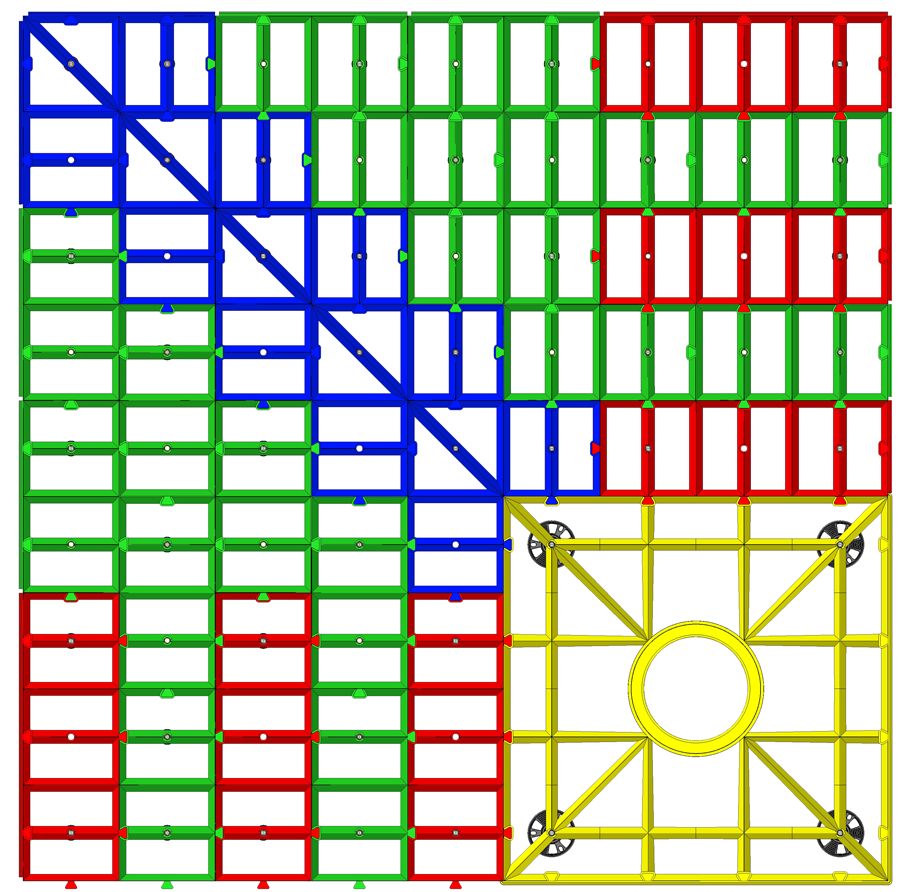

Aqua-Grade 5 (wet room shower area 1350 x 1350)

Two walls, Two Falls

Code:

AG135135/2F

Impey AQUAGRADE 5

Kit comprises of:

1 x 600mm x 600mm starter base
5 x 300mm x 150mm corner section
16 x 300mm straight infill section
6 x 450mm straight infill section
76 x 20mm foot spacer
42 x 20mm x M8 adjustable foot
4 x Foot mounting plate

Formerly known as: AG5 - 1350 x 1350mm

Price: £---- inc VAT

(price includes choice of waste. To view waste options click here)

Order

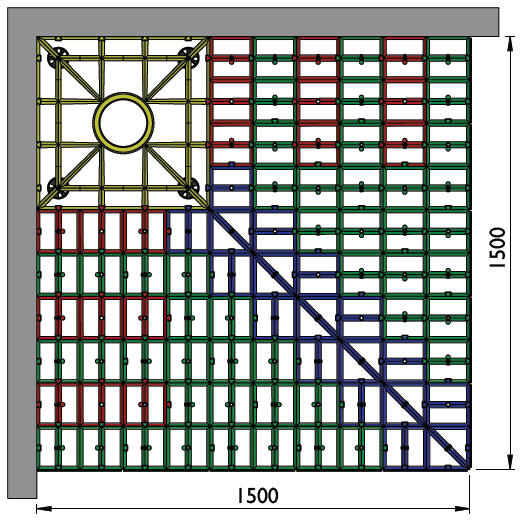

Aqua-Grade 10 (wet room shower area 1500 x 1500)

Two walls, Two Falls

Code:

AG150150/2F

Kit comprises of:

1 x 600mm x 600mm starter base
6 x 300mm x 150mm corner section
- 300mm straight infill section
- 450mm straight infill section
- 20mm foot spacer
- 20mm x M8 adjustable foot
- Foot mounting plate

Formerly known as: AG10 - 1350 x 1350mm

Price: £---- inc VAT

(price includes choice of waste. To view waste options click here)

Order











Aqua-grade with Linear waste outlet gully





The configuration of an Aqua-grade Linear can best be denoted by:

1. Length of gulley (400mm / 600mm / 800mm)

2. The number of slopes (falls) towards the gulley (one / two / three / four)

One fall

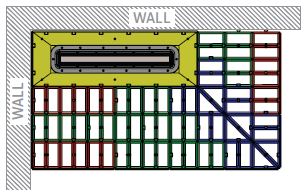

Two falls

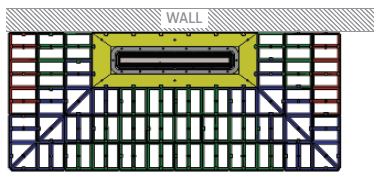

Three falls

Four falls










400mm Linear Waste

Order

Aqua-grade with 400mm Linear waste gulley - Two Falls
      inc VAT
Size 1200mm x 900mm Code: AG40L12090/2F -
  1350mm x 1050mm Code: AG40L135105/2F -
  1500mm x 1200mm Code: AG40L150120/2F -





Aqua-grade with 400mm Linear waste gulley - Three Falls


£ inc VAT

Size 1500mm x 750mm Code: AG40L15075/3F -
  1800mm x 900mm Code: AG40L18090/3F -



Aqua-grade with 400mm Linear waste gulley - Four Falls


£ inc VAT

Size 1200mm x 900mm Code: AG40L12090/4F -
  1500mm x 1200mm Code: AG40L150120/4F -







600mm Linear Waste

Order


Aqua-grade with 600mm Linear waste gulley - One Fall


£ inc VAT

Size 900mm x 900mm Code: AG60L9090/1F -
  1200mm x 900mm Code: AG60L12090/1F -
  1350mm x 900mm Code: AG60L13590/1F -
  1500mm x 900mm Code: AG60L15090/1F -



Aqua-grade with 600mm Linear waste gulley - Two Falls


£ inc VAT

Size 1350mm x 750mm Code: AG60L13575/2F -
  1500mm x 900mm Code: AG60L15090/2F -
  1650mm x 1050mm Code: AG60L165105/2F -



Aqua-grade with 600mm Linear waste gulley - Three Falls


£ inc VAT

Size 1800mm x 750mm Code: AG60L18075/3F

-



Aqua-grade with 600mm Linear waste gulley - Four Falls


£ inc VAT

Size 1500mm x 900mm Code: AG60L15090/4F -
  1800mm x 1200mm Code: AG60L180120/4F -









800mm Linear Waste

Order


Aqua-grade with 800mm Linear waste gulley - One Fall
      £ inc VAT
Size 1050mm x 1050mm Code: AG60L105105/1F
  1200mm x 1050mm Code: AG60L120105/1F
  1350mm x 1050mm Code: AG60L135105/1F
  1500mm x 1050mm Code: AG60L150105/1F





Aqua-grade with 800mm Linear waste gulley - Two Falls


£ inc VAT

Size 1500mm x 750mm Code: AG60L150750/2F





Aqua-grade with 800mm Linear waste gulley - Three Falls


£ inc VAT

Size 1950mm x 750mm Code: AG60L195750/3F





Aqua-grade with 800mm Linear waste gulley - Four Falls


£ inc VAT

Size 1650mm x 900mm Code: AG60L16590/4F









CUSTOM Aqua-grade Linear Kits

Bespoke Aqua-grade Linear
Aqua-grade can be made up in a range of bespoke sizes. Please  Call us to discuss your requirement.



























Aqua Grade Installation Guide





Order
