AQUADEC Wet room shower waste trap options


IMPEY Aquadec Wet room shower floor drainage

Index > All about wet rooms > Wet room shower floor formers > IMPEY Aquadec Easy Fit > Drainage options

Get your Impey Aquadec waste trap FREE!

Purchase your Aqua-Dec from www.showerright.co.uk and the waste trap of your choice is

included in the price! Saving you up to 155.00!!

Waste outlets compatible with the Aqua Dec Wet Room Floor Systems


When using an Impey Aquadec you will require a waste outlet and trap specific to the type of floor finish you intend to use and the direction you which to pipe the waste away.

A range of Wet Room floor waste outlets specially designed for the task. Whether your floor is tiled or covered in vinyl there is a trap designed specifically for you. Options of waste outlet direction are also available - horizontal or vertical. If your installation requires a waste pump there's even an option (and a pump) for that.

Waste traps may be bought separately (please see individual prices) but are included in the price when you purchase an Aquadec from us. Simply specify which waste trap is required when you order. (Don't hesitate to call if you require guidance)

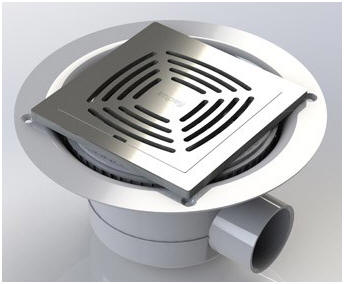

The NEW Impey wet room floor gulley grate

IMPEY wet room shower floor gully

Included with the tiled floor 'trap adapta' waste outlet.



The grill pictured above is supplied as standard with 'Trap Adapters' suited for tiled floor installation.

There are four alternative cover plates available should you wish to customise your wet room floor.

Laser cut from a solid stainless steel plate, these designs are identified by the names listed alongside.

Costing 21.00 (inc VAT) your requirement should be specified when purchasing your Aquadec to enjoy free delivery.

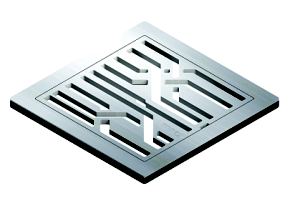

Alternative gully cover plate for Impey Wet Room floor drain - The FIBRE

'FIBRE'



Code: Quad/WJ/02/SS

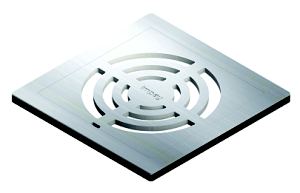

Alternative gully cover plate for Impey Wet Room floor drain - The GRID 'GRID'

Code: Quad/WJ/03/SS

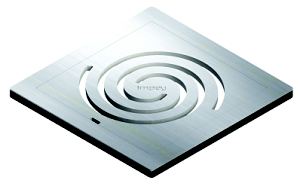

Alternative gully cover plate for Impey Wet Room floor drain - The IDENTITY

'IDENTITY'



Code: Quad/WJ/04/SS

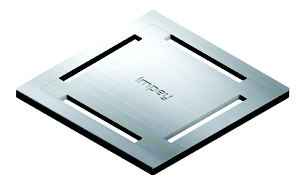

Alternative gully cover plate for Impey Wet Room floor drain - The STAMP 'STAMP'

Code: Quad/WJ/05/SS



Alternative cover plates may be ordered at any time, but will attract a postage charge if ordered separately.



Shower waste traps for tiled floors

DSS1/H

Depth 103mm

Horizontal Outlet waste trap

IMPEY wet room shower floor gully with horizontal outlet spigot

This drainage option has a stainless steel top and allows the Aqua-Dec to be tiled. It is provided with a horizontal outlet shower trap. Tiling depth between 6 to 26mm depending on membrane and thickness of adhesive. The waste has a 40mm outlet.

155.74 inc VAT*

*Included in the purchase price of AQUADEC



DSS1/V

Depth 138mm

Vertical Outlet waste trap

This drainage option has the same stainless steel grate as the horizontal outlet version shown in the image above . It is designed for use when tiling the floor. The orientation of the outlet spigot is vertical allowing the connecting waste pipe to exit straight down.

Tiling depth between 6 to 26mm depending on membrane and thickness of adhesive. The waste has a 40mm outlet.



155.74 inc VAT*

*Included in the purchase price of AQUADEC

IMPEY wet room shower floor gully with vertical outlet spigot

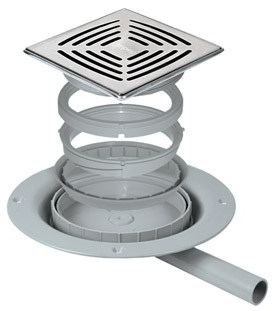

DSS2

Depth 38mm
IMPEY wet room shower floor gully with horizontal outlet specific to a waste pump This drainage option is designed for use with a tiled floor and facilitates connection to a waste water pump.

For our range of shower waste pumps please refer to the section further down this page.

136.21 inc VAT*

*Included in the purchase price of AQUADEC



Recommended drainage pump:

Dry Dec 20

Click to enlarge

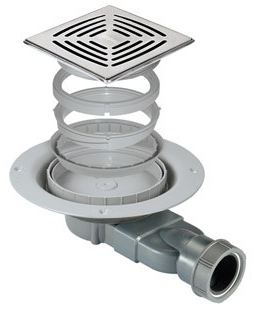

DSS7

Depth 63mm

IMPEY slimline wet room shower floor gully with horizontal outlet spigot

Slimline waste option suitable for use with the Aquadec, Aquadec Advance and Aquagrade and Aquadec EasyFit wet room shower floor formers.

Minimal intrusion below floor level with waterless trap design and gravity waste outlet into 40mm pipework.

132.76 inc VAT*

*Included in the purchase price of AQUADEC

Click to enlarge




Shower waste traps for vinyl floors

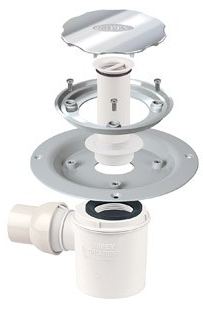

DSS5/H

Depth 126mm
IMPEY wet room shower floor gully for a vinyl floor covering with horizontal outlet spigot

Featuring a chrome-plated clamping ring and cover plate suitable for all types of vinyl floor. Horizontal outlet.

119.70 inc VAT*

*Included in the purchase price of AQUADEC

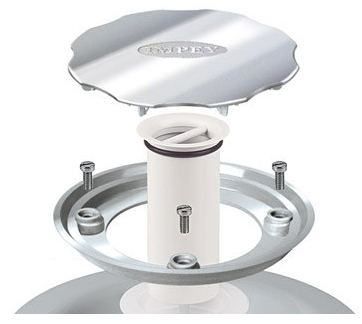

Chrome cover - click to enlarge





(Grey plastic cover option - Code: WSF1/H)



Click to enlarge

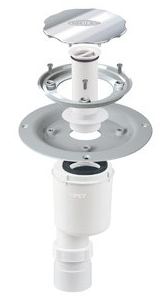

DSS5/V

Depth 130mm

IMPEY wet room shower floor gully for a vinyl floor covering with vertical outlet spigot

Featuring a chrome-plated clamping ring and cover plate suitable for all types of vinyl floor. Vertical outlet.

114.00 inc VAT*

*Included in the purchase price of AQUADEC





Chrome cover - click to enlarge





(Grey plastic cover option - Code: WSF1/V)

Click to enlarge

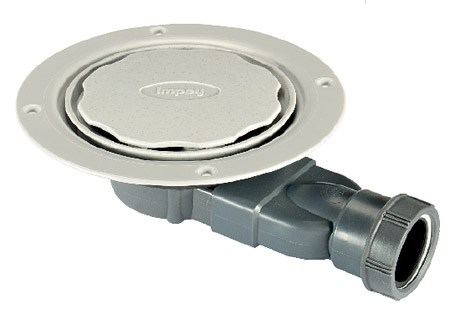

SLW1


IMPEY slimline wet room shower floor gully for a vinyl floor covering with horizontal outlet spigot

Vinyl floor model: Extremely shallow shower waste trap for gravity drainage. Grey plastic cover. Waterless trap design allows use in confined spaces and will not freeze or evaporate. 40mm outlet.

132.76 inc VAT*

*Included in the purchase price of AQUADEC



Click to enlarge



DSS3/H

Depth 130mm

IMPEY wet room shower floor gully for a vinyl floor covering with horizontal outlet spigot



Featuring a chrome-plated clamping ring and cover plate suitable for all types of vinyl floor. Horizontal outlet. 50mm outlet with 40mm reducer for 1.5" pipework.

119.70 inc VAT*

*Included in the purchase price of AQUADEC





(ABS cover plate option - Code: TSG1)



Click to enlarge

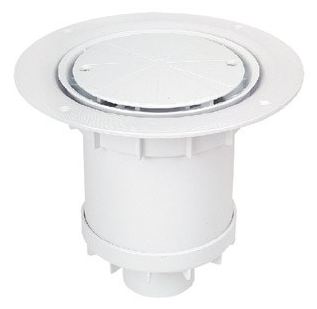

TSG2



IMPEY wet room shower floor gully for a vinyl floor covering with vertical  outlet spigot

75mm vinyl floor shower waste gully for vertical drainage

Has a 75mm water seal and a 110mm outlet which allows the installer to connect the bottom of the trap directly to 110mm waste pipe. Plastic cover plate. Also supplied with a 50mm reducer if required.

Click to enlarge

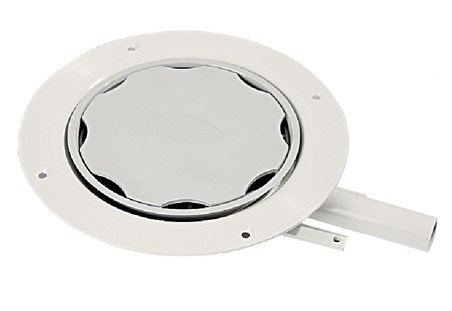

TAD13 and UGP1/P




IMPEY wet room shower floor gully for a vinyl floor covering with horizontal outlet spigot for a waste water pump

For use with the Impey range of shower waste pumps.Flow rate of up to 12 litres per minute.Designed for use with proprietary slip-resistant vinyl floor coverings.

Click to enlarge





DSS4



Aquadec DSS4 vinyl floor wet room waste outlet facilitating waste pump connection

This drainage option has a stainless steel top and allows the Aqua-Dec to be vinyled. It also allows the waste water to be pumped away when used with the Digital Pump shown below.

92.00 inc VAT*

*Included in the purchase price of AQUADEC



Compatible drainage pump: Dry Dec 20

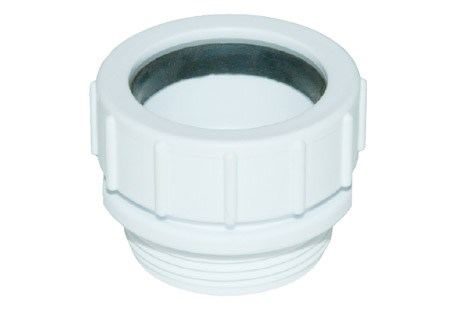

DSS/BC


Shower waste to bath waste adaptor

For use with Impey trap adapters to connect the bath to the Impey trap fulfilling 'Lifetime Homes' requirements.

Click to enlarge

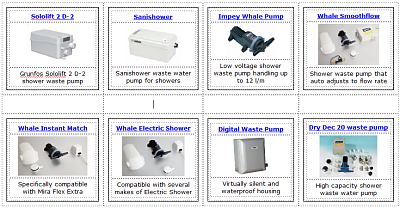

Pumped drainage solutions when a gravity drain is not an option

Click the image to visit the pumped shower drainage options page
