Novellini CUSTOM trimable shower trays for awkward corners

Novellini

Novellini Custom shower tray


Low Profile Stone resin shower tray that can be cut to fit awkward shapes.





Novellini Custom stone resin low profile shower tray

A particularly useful premium quality stone resin low profile shower tray that can be cut to accommodate awkward shapes. This superior quality shower tray drains to a linear gully equipped with a large fast flow trap that can transport an impressive 50 litres per minute.

Customisable shower tray

  • 35mm profile

  • Can be trimmed to shape

  • Highly stable

  • Steel reinforcing profiles

  • Knock resistant

  • Available in White

  • Gloss finish or anti-slip options

  • Surface mount or rebate into floor

  • Up to 50 litres high flow waste outlet

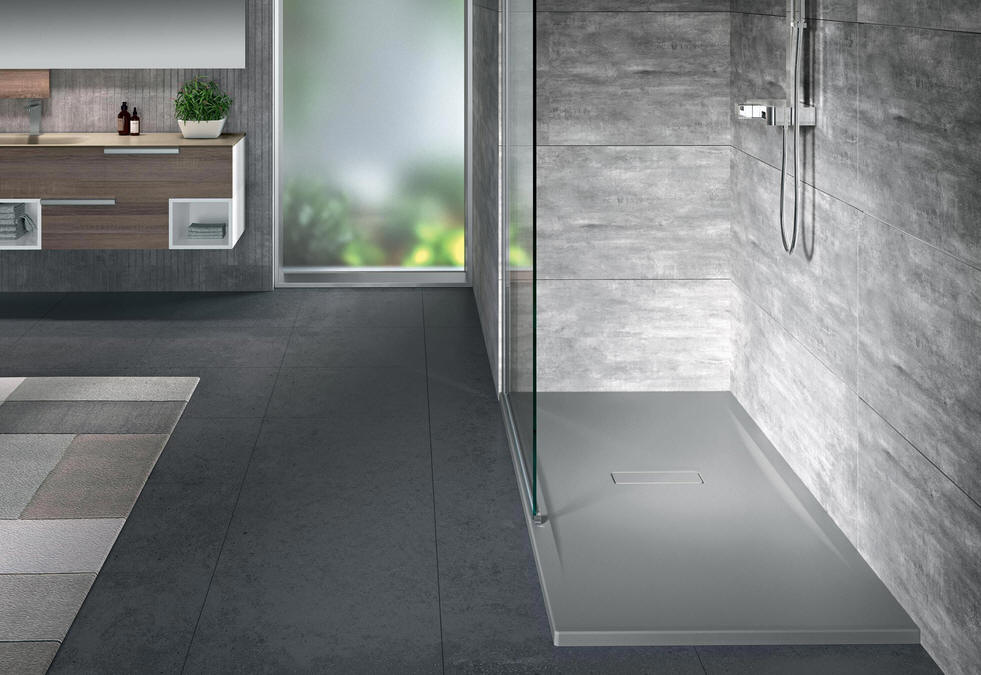

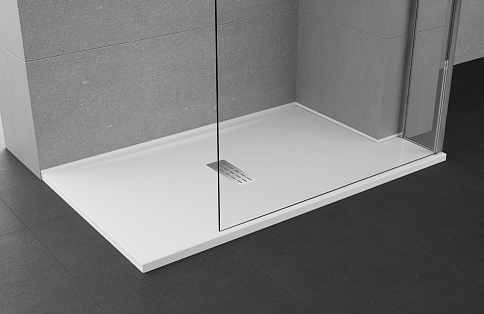

Novellini Custom shower tray fitted to awkward corner

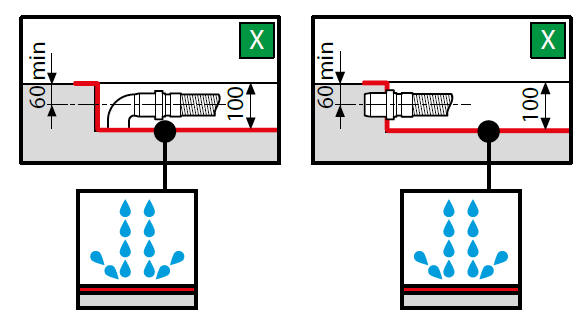

Can be recessed into the floor for level access, or laid on the surface for low profile entry

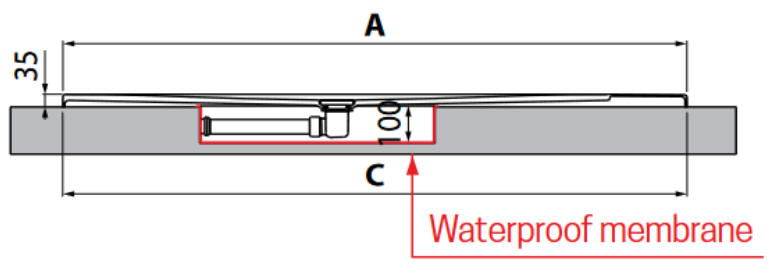

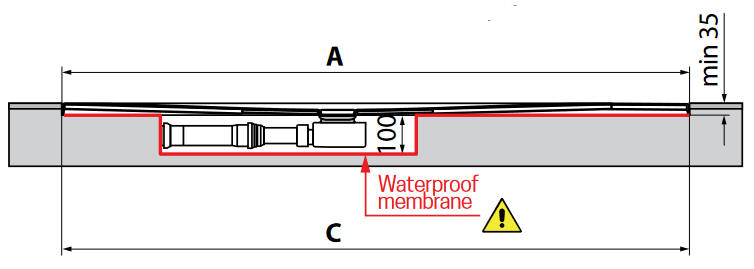

Novellini Custom shower tray recessed into floor for level access Novellini Custom shower tray surface mounted provides low step height

Waste trap can move up to 50 litres per minute Steel reinforced stone resin tray

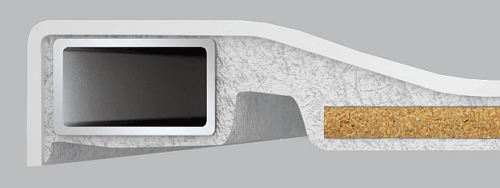

Cross-section of the Novellini Custom shower tray showing the steel reinforcing profile
Please refer to the following technical documents for this product:

Product Brochure

Installation Manual

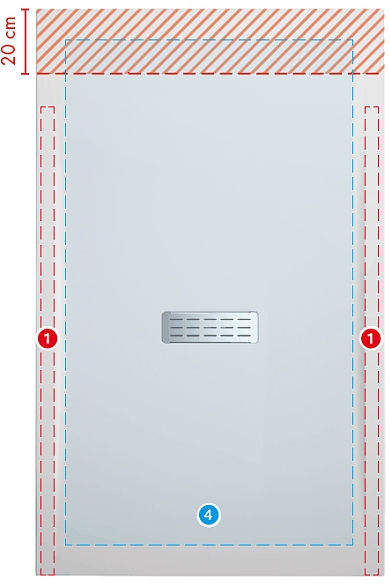

Shapeable area - The shower tray with a trimmable area

Drawing shows the component areas of the Novellini Custom shower tray The Custom shower tray boasts the following features:
  • Steel profiles reinforce the structure of the tray (1)

  • Resin filled acrylic panel reinforces the centre area (2)

Cross-section showing Novellini Custom shower tray construction

  • Shapeable area free of reinforcing (3)Cross-section of the trimmable end of the Novellini Custom shower tray

  • Available with a regular gloss surface or with anti-slip treatment (4) - Please specify which you require when ordering.





Optional plastic edging kit

Option plastic trim to finish around awkward shapes

As you can probably imagine, if you cut into the timmable area of the tray you will loose the edging profile in that section (the small lip that runs around the perimeter). An optional edging profile is available that can be retrofitted after the tray is trimmed to reinstate the lost edge. This is only an option, but is recommended and will leave an aesthetically pleasing result.

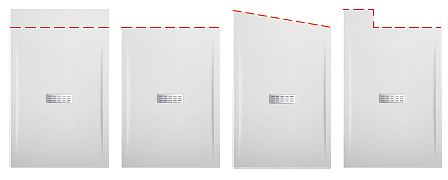

Illustrations of how the Novellini shower tray can be trimmed and shaped

The Novellini CUSTOM shower tray can be cut to numerous shapes within the shapeable area




Novellini customer shower tray diagram

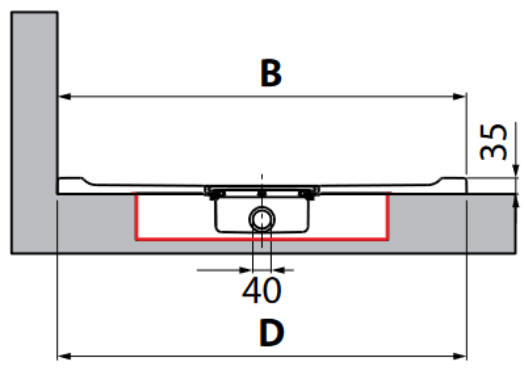

Novellini customer shower tray diagram (end view)



Tray height = 35mm (Low Profile)

Measurements

inc VAT

Tray (mm)

A

B

C

D

P

White Gloss

Non-slip

1200 x 700

1192

692

1194

694

500

255

305

1200 x 800

1194

792

1196

794

500

255

305

1200 x 900

1194

892

1196

894

500

267

316

1400 x 700

1392

692

1392

694

600

262

311

1400 x 800

1392

792

1394

794

600

278

328

1400 x 900

1392

892

1394

894

600

292

341

1600 x 700

1592

692

1594

692

700

304

354

1600 x 800

1592

792

1594

794

700

304

354

1600 x 900

1592

892

1594

894

700

315

364

1800 x 800

1792

792

1794

794

800

320

371

1800 x 900

1792

892

1794

894

800

328

377

Notes:

+/- 2mm

+/- 3mm







Optional -

Optional edging kit (to reinstate tray edge in cut area)

36.30*

Necessary -

European to UK flexible waste pipework adaptor (RISCAB)

8.00*

*Important

Delivery on these items is included when ordered with a tray. If ordered separately please be aware that a delivery charge will apply.




Flexible waste connector to convert between European and UK waste pipe sizes

Flexible waste pipe adaptor (RISCAB)

Novellini products are manufactured in Italy. Whilst fully compliant with all UK legislation and standards there is an anomoly with the waste outlet size.

Pictured left: The European to UK flexible waste pipework adaptor (RISCAB) that is necessary for an easy transition between the subtle differences in wastepipe size used in Europe and the UK. Whilst it is deemed 'necessary', this is an advisory comment and you are of course at liberty to decline.


Like to see more shower trays?

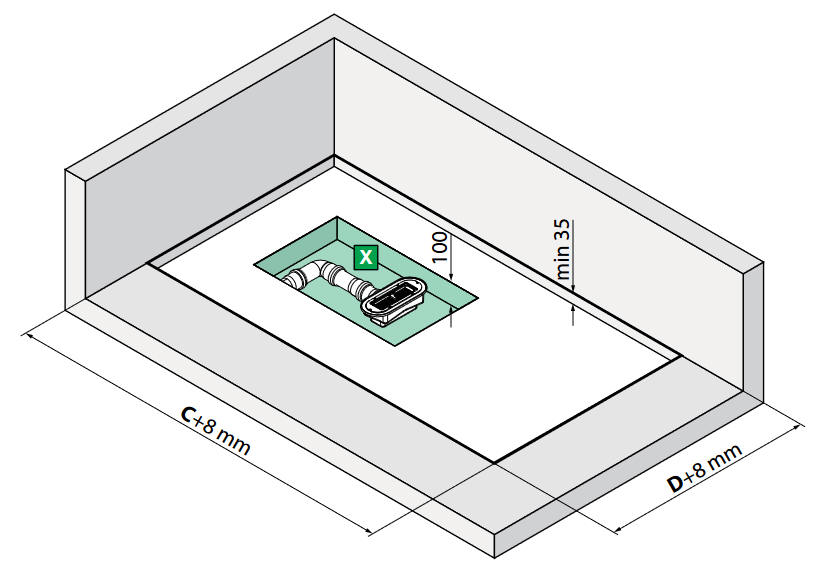

Novellini customer shower tray floor cutout diagram

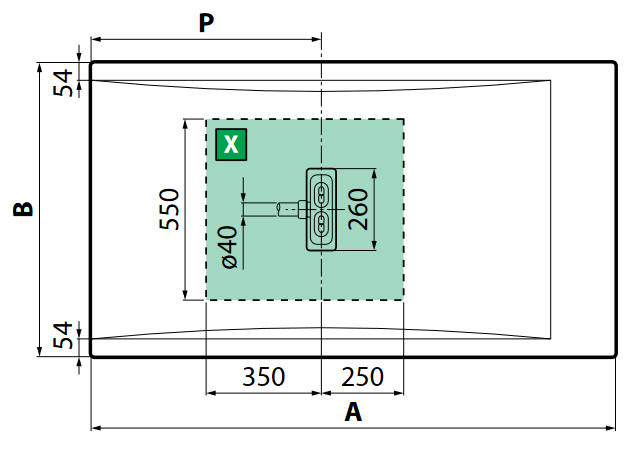

Novellini customer shower tray waste outlet diagram
