Mendip shower tray Low profile with above ground waste

Ideal solution when you can't run pipe work under the floor

Index > Shower Trays > Mendip Shower Tray

Low profile shower tray with plumbing above floor level

Low profile shower tray with above ground waste - ideal for solid floors

The Mendip range of shower trays have been specially designed for installations where the trap and waste pipe can not be buried or hidden in or under the floor.

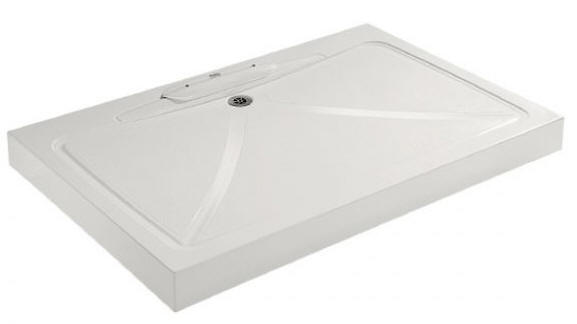

Mendip low profile shower tray 2

At 90mm the MENDIP shower trays are the lowest 'low profile' model that can offer a waste outlet above floor level. The waste trap and pipe work are built into the body of the tray allowing for a very quick and easy installation negating the need to bury pipe work.

For this reason, the Mendip is known as the 'above ground waste tray'.

The waste pipe outlet can be positioned on any corner which provides versatile fitting options and as standard the tray comes fitted with the Solos Dallmer waste with 50mm water seal. The waste trap is contained within an inspection chamber on top at the back of the tray so servicing is simple.

To compliment the Mendip range of trays and to facilitate easy wheeled access, a 50mm half step and a ramp are available as optional accessories.

The Mendip range of trays are hand laid from GRP and designed to safely carry a load of 40 stone and come with a 15 year warranty.

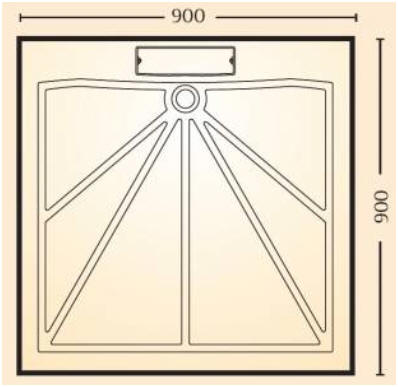

Mendip 1 low level shower tray

Order reference code	MD1
Overall Dimensions	900 x 900mm
Depth	90mm
Gradient	20mm
Handed	No / Reversible
Price inc VAT:	£464.26
Price includes waste

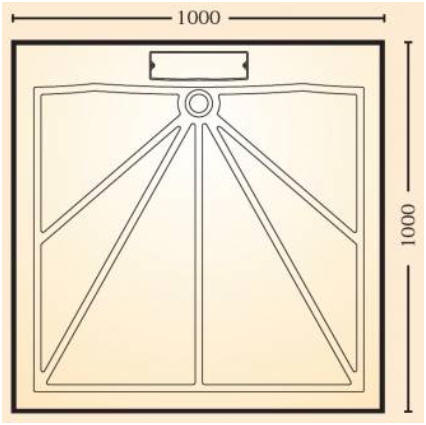

Mendip 2 low level shower tray

Order reference code	MD2
Overall Dimensions	1000 x 1000mm
Depth	90mm
Gradient	20mm
Handed	No / Reversible
Price inc VAT:	£469.55
Price includes waste

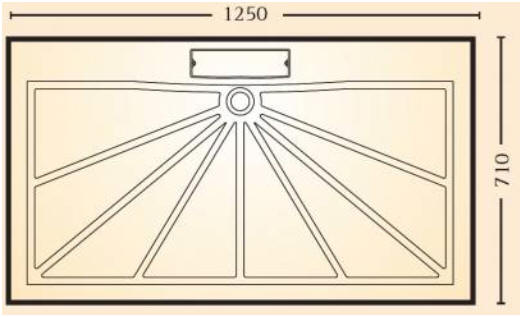

Mendip 3 low level shower tray

Order reference code	MD3
Overall Dimensions	1250 x 710mm
Depth	90mm
Gradient	20mm
Handed	No / Reversible
Price inc VAT:	£473.12
Price includes waste

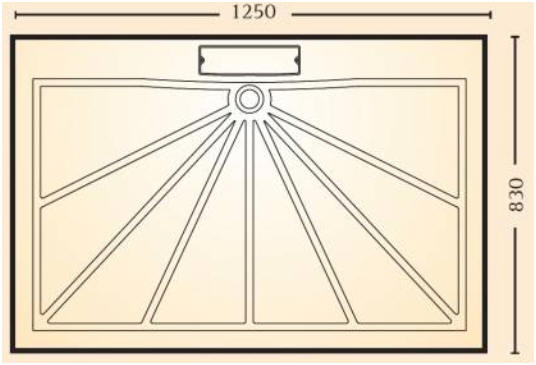

Mendip 4 low level shower tray

Order reference code	MD4
Overall Dimensions	1250 x 830mm
Depth	90mm
Gradient	20mm
Handed	No / Reversible
Price inc VAT:	£480.55
Price includes waste

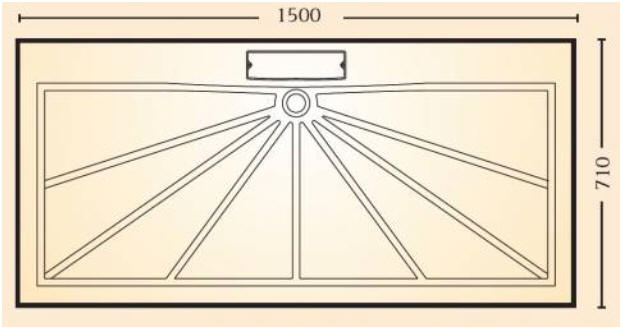

Mendip 5 low level shower tray

Order reference code	MD5
Overall Dimensions	1500 x 710mm
Depth	90mm
Gradient	20mm
Handed	No / Reversible
Price inc VAT:	£489.66
Price includes waste

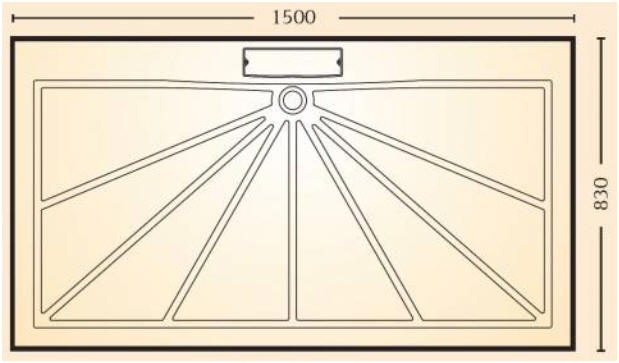

Mendip 6 low level shower tray

Order reference code	MD6
Overall Dimensions	1500 x 830mm
Depth	90mm
Gradient	20mm
Handed	No / Reversible
Price inc VAT:	£496.55
Price includes waste

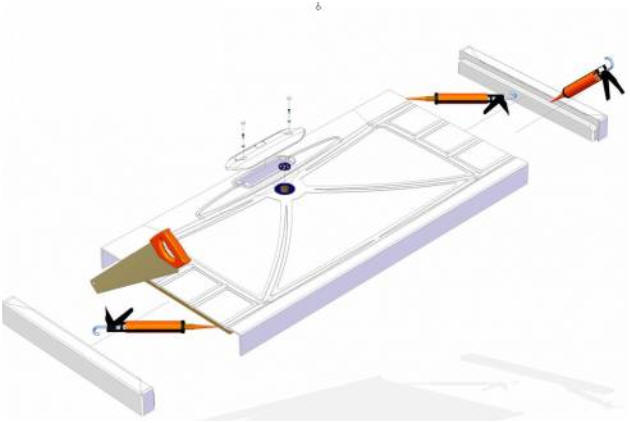

Mendip 7 low level variable Length shower tray

Order reference code	MD7
Overall Dimensions	1850 x 710mm
Depth	90mm
Gradient	20mm
Trimable Area	350mm from each end
Handed	No / Reversible
Price inc VAT:	£575.93
Price includes waste

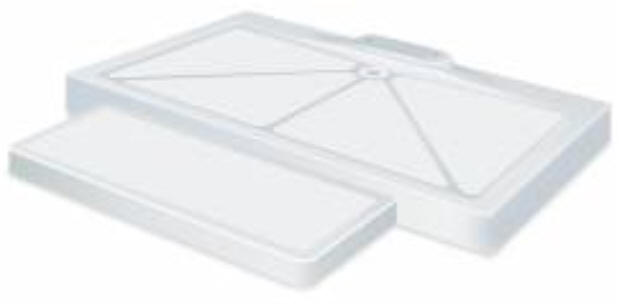

Mendip low level shower tray half step

Order reference code	MDSTEP
Overall Dimensions	720 x 300mm
Height	50mm
Gradient	N/A
Trimable Area	N/A
Handed	N/A
Price inc VAT:	£155.44
Step only! This is an accessory to be added to your choice of MENDIP shower tray. The image shows how the step relates to the shower tray and is for illustration only.

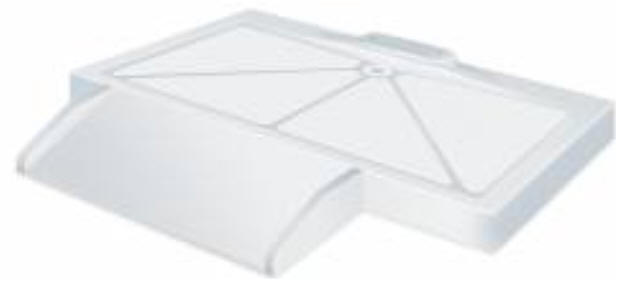

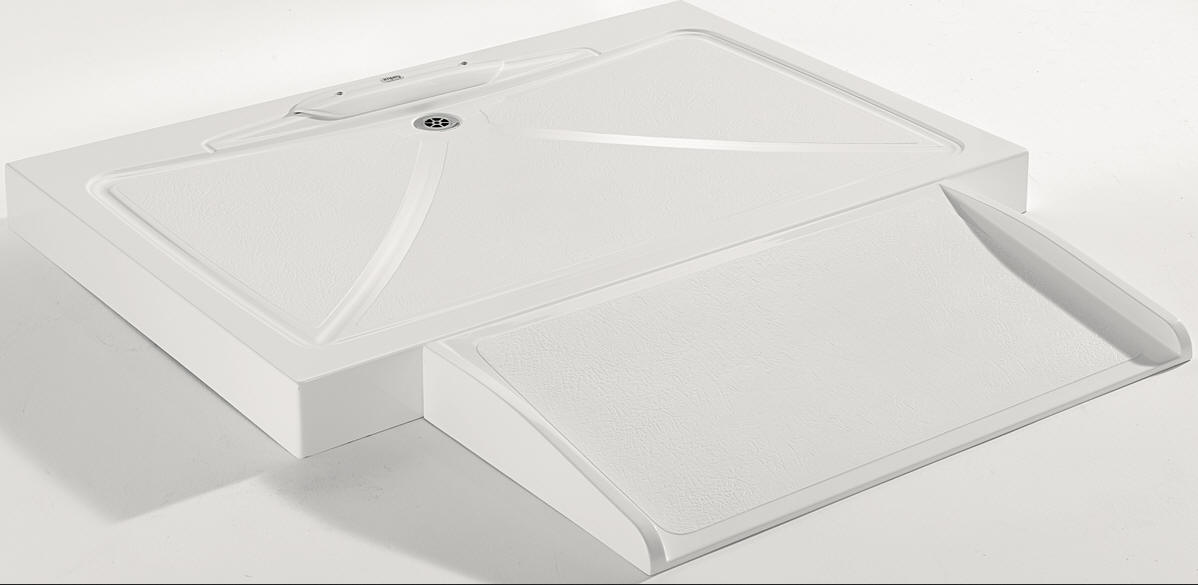

Mendip low level shower tray ramp


Order reference code	MDRAMP
Overall Dimensions	900 x 400mm
Height	90mm
Gradient	N/A
Trimable Area	N/A
Handed	N/A
Price inc VAT:	£156.52
Step only.
