Envirotec offset & rectangular shower pods


1200 x 800 offset and rectangular leak free shower pods

Index > Leak free shower pods > Envirotec > Envirotec Offset and Rectangular shower pods

1200 x 800 Rectangular and Offset quadrant shower pods

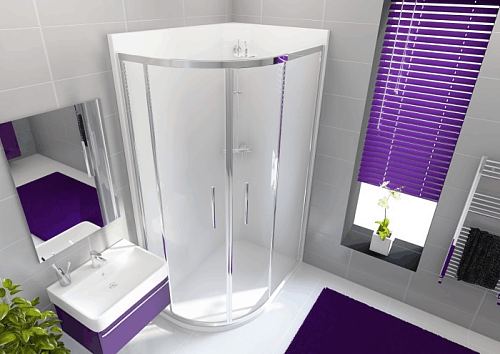

Envirotec Offset quadrant leak free shower pod

Offset and rectangular self contained shower pods

When space permits and a larger shower pod is required an offset quadrant or rectangular unit can be the perfect solution.

All Envirotec shower pods have been designed with the same purpose in mind - to rid the home owner of accursed leaks.

Two and three piece construction (depending on quad or rectangle) places the joint/s between the upper and lower sections at a height that water cannot reach, hence there is simply nowhere for water to leak.

GRP construction ensures a waterproof finish that will endure and remain easy to clean for years to come.

Envirotec shower pods are sold as component parts

Unlike most manufacturers, Envirotec offer their shower pods as component parts. This is to say, you buy the shower pod shell and doors separately. This gives you the option of fitting alternative doors to those suggested should you wish to do so.

Plumbing your shower pod

Plumbing the Envirotec shower pod is easy. The corner shower pod is designed with a flat profile in the back corner to facilitate the positioning of shower equipment - mixer valve, electric or all-in-one power shower shower.

Behind the corner profile is a void (large enough to accept most recessed shower valves but some may require additional excavation of the building wall behind) where any pipes or cables that may be associated with your shower equipment can be run.

You have a choice when it comes to running the waste. The Envirotec pod is supplied with a 90mm 'top clean' outlet and trap. If the pod is sat directly on the floor (on the adjustable feet) the waste can be run in or under the floor. Should you need to raise the pod in order to run the waste above floor level then a riser kit can be ordered as an optional extra. The riser kit contains legs that raise the pod by 100mm and a plinth panel to neatly cover the void.

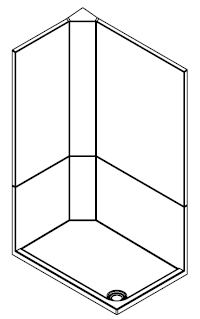

Diagram below shows three part construction of a 1200 x 800 rectangular shower pod

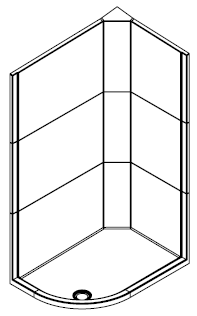

Diagram below shows three part construction of a 1200 x 800 offset quadrant shower pod






Envirotec Rectangular corner shower pod -

Key dimensions

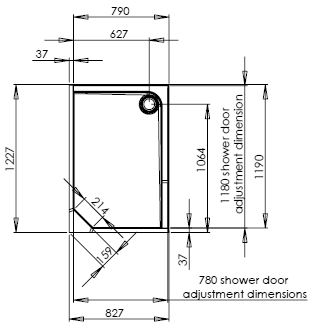

1200 x 800 rectangular shower pod diagram


Envirotec Rectangular corner shower pod -

Key dimensions

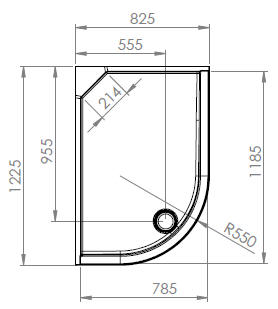

Above are the dimensions for the 1200 x 800 rectangular and offset corner pods. Please note the 'footprint' size of each which is slightly bigger than the designated size.

TBA















Rectangular shower pod vertical dimensions

(add 100mm if riser legs used)

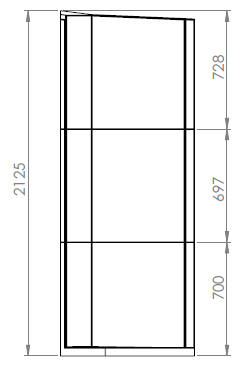

Offset quadrant shower pod vertical dimensions

(add 100mm if riser legs used)



Offset quadrant shower screen/doors

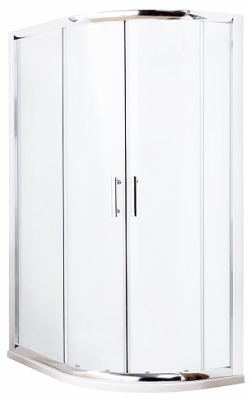

Offset quadrant shower doors

Corner entry quadrant doors

Rectangular shower pod door and screen

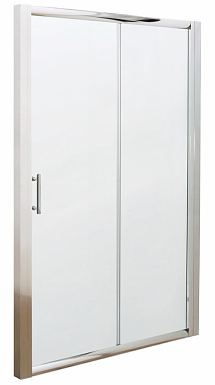

1200 sliding shower door

+

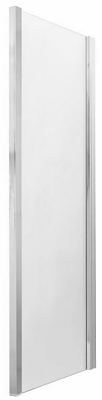

800 Fixed shower panel

1200 sliding door

+

800mm Fixed side panel

ENVIROTEC LEAK FREE SHOWER PODS SPECIAL OFFER

Envirotec Rectangular Shower Pod Price list


  Format Shape Size (mm) Finish Colour Price inc VAT

  2 Part Rectangular 1200x800 Classic White 1,490.00

  2 Part Rectangular 1200x900 Classic White Not available

  Available Left or Right Hand. Please specify.

  Easy Plumb Leg and Plinth Kit   White Only 98.50
  010522



Easy Plumb Kit = Riser leg kit and plinth panelOrder

Please note: The addition of the riser leg kit can raise the unit by up to 100mm from the floor. Please add this to the overall measurement if used.



Envirotec Offset Quadrant Shower Pod Price list


  Format Shape Size (mm) Finish Colour Price inc VAT

  2 Part Offset Quad 1200x800 Classic White 1,490.00

  2 Part Offset Quad 1200x900 Classic White Not available

  Available Left or Right Hand. Please specify.

  Easy Plumb Leg and Plinth Kit   White Only 98.50
  010522



Order

Envirotec Compatible Shower Doors

Select your pod (& Easy Plumb riser kit if required) then add the appropriate doors



Shower Doors 6mm glass

RRP Inc VAT
Rectangular   07/20

Package

 Price

  1200 x 800mm sliding door and side panel.

6mm glass x 1850mm tall.

795.00 555.70

Quadrant
  1200 x 800mm two door offset quadrant enclosure.

 6mm glass x 1850mm tall

895.00 599.55


These are discounted door prices that apply only when bought with a pod. If sold separately a higher price applies.

Envirotec Shower Equipment

  Order
Complete your Envirotec shower pods by adding shower equipment   Inc VAT

1

2

1. TMV2 Bar type mixer valve with hose, handset and riser kit Chrome 139.03
2. TMV2 Bar type mixer valve with hose, handset and riser kit + diverter and rain head Chrome 255.64
Your choice of shower equipment is not limited to the two shower valve kits offered above. They do however represent great value when purchased as part of a package.
        Feb 2018




Order

Telephone for assistance

Print this page





Self contained leak free rectangular and offset quadrant  shower pods

Due to a policy of continual improvement the manufacturer reserves the right to change product specification without notice
