Envirotec corner shower pod


800 and 900mm Leak free square corner shower pods



Index > Self Contained leak free shower pods > Envirotec > Envirotec Corner shower pod

Envirotec 800 x 800 and 900 x 900 square corner shower pods

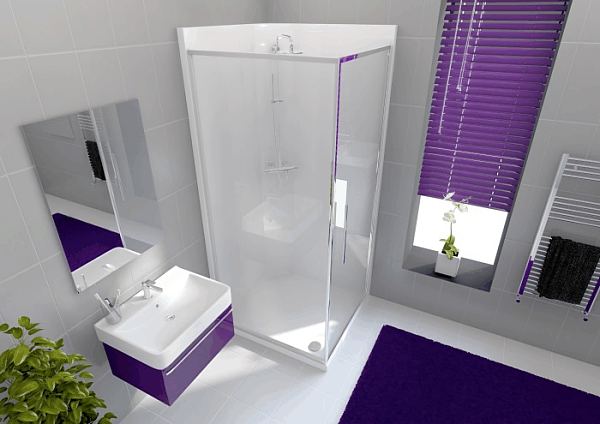

Envirotec square corner shower pods 900mm and 800mm

Envirotec corner shower pods

Envirotec shower pods have been designed to rid the home owner of the accursed leaks so often associated with almost every shower enclosure that ever existed.

Constructed using technology more often associated with boat building, Envirotec shower pods perform the opposite task by keeping water in rather than out! The simply cannot leak.

The usual places that water escapes from traditional shower enclosures have been designed out, so you can enjoy ownership in the confidence that leaks will no longer be an issue.

Two part shower pod construction

The shell of the Envirotec corner shower pod comprises two parts - the shower tray which incorporates the lower section of the back wall, and the upper section of the back wall. Your attention is drawn to the tray component and the extended lower wall section that reaches up a goodly distance. This exaggerated 'upstand' does away with the joint traditionally formed where tray and wall tiles meet - the very place that leaks normally occur. So you can see, by removing this weakness there's simply nowhere for water to escape.



Envirotec shower pods are sold as component parts

Unlike most manufacturers, Envirotec offer their shower pods as component parts. This is to say, you buy the shower pod shell and doors separately. This gives you the option of fitting alternative doors to those suggested should you wish to do so. The shell of each Envirotec pod is available in a choice of three colours, Porcelain White, Sandstone Granite and Black Granite. So not only can you rid yourself of a leaky shower, you can also choose the colour that compliments your bathroom decor.

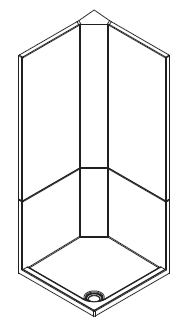

2 Piece construction

Plumbing in your shower pod

Plumbing the Envirotec shower pod is easy. The corner shower pod is designed with a flat profile in the corner to facilitate the positioning of shower equipment - mixer valve, electric or all-in-one power shower shower. Behind the corner profile is a void (large enough to accept most recessed shower valves but some may require additional excavation of the building wall behind) where any pipes or cables that may be associated with your shower equipment can be run.

You have a choice when it comes to running the waste. The Envirotec pod is supplied with a 90mm 'top clean' outlet and trap. If the pod is sat directly on the floor (on the adjustable feet) the waste can be run in or under the floor. Should you need to raise the pod in order to run the waste above floor level then a riser kit can be ordered as an optional extra. The riser kit contains legs that raise the pod by 100mm and a plinth panel to neatly cover the void.

Envirotec shower pods are available with a choice of colour finishes

Porcelain white colur swatch Sandstone granite colour swatch Black granite colour swatch
Porcelain White Sandstone Granite Black Granite

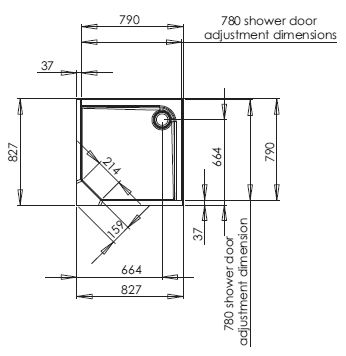

800mm square corner shower pod dimensions

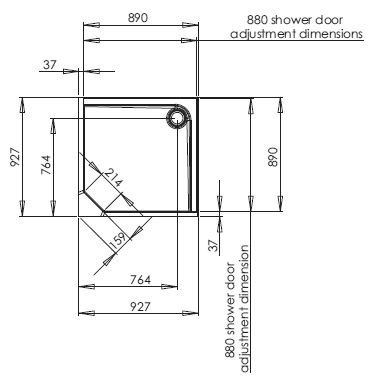

900mm square corner shower pod dimensions

The drawing above left provides all the critical dimensions you might need to know for the 800 x 800 pod. Above right you will find the dimensions corresponding to the 900 x 900 pod. Please note the 'footprint' size of each which is slightly bigger than the designated size.

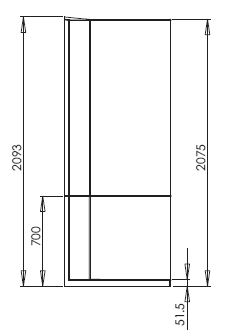

Vertical dimensions for the Envirotec 800 corner shower pod

Vertical dimensions without leg kit

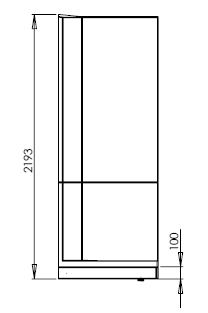

Vertical dimensions for the Envirotec 800 corner shower pod with riser kit fitted

Additional measurements when leg kit fitted



Choose from the following door and panel configurations to fit both the 800 and 900 square shower pods:

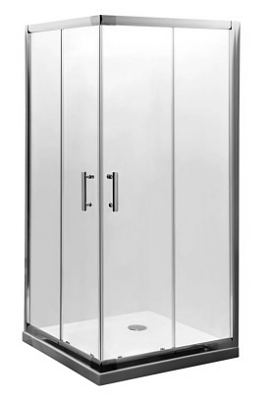

Corner entry shower enclosure with twin sliding doors

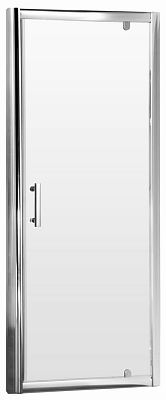

Pivot shower door

Fixed side shower panel

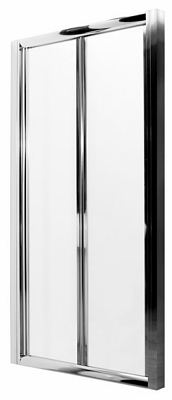

Bi-fold shower door

Corner entry sliding doors

Pivot door Fixed side panel

Bi-fold door



Select your Envirotec shower pod & Easy Plumb Riser Kit (if required) then add the doors and shower equipment of your choice.

Please note: The addition of the Easy Plumb riser leg kit can raise the unit by up to 100mm from the floor. Please add this to the overall measurement if used.



Envirotec Square Shower Pod Price list

Product Code

Envirotec Square Shower Pod price list

  inc VAT
White
SQ808WSUL Corner Square 800mm, White 686.34
ES808WSUL Easy Plumb Kit for Square Quad 800 White 85.61
SQ909WSUL Corner Square 900mm, White 686.34
ES909WSUL Easy Plumb Kit for SQ900 White 85.61


Limited

 Special Offer!

Purchase an 800mm or 900mm white square shower pod

with Easy Plumb kit

749.95


Black
SQ808BSUL Corner Square 800mm, Black 774.90
ES808BSUL Easy Plumb Kit for Square Quad 800 Black 128.41
SQ909BSUL Corner Square 900mm, Black 774.90
ES909BSUL Easy Plumb Kit for Square Quad 900 Black 128.41

Sandstone
SQ808SSUL Corner Square 800mm, Sandstone 774.90
ES808SSUL Easy Plumb Kit for Square Quad 800 Sandstone 128.41
SQ909SSUL Corner Square 900mm, Sandstone 774.90
ES909SSUL Easy Plumb Kit for Square Quad 900 Sandstone 128.41
SQ128SLUL Corner Rectangle 1200 x 800 Left Hand, Sandstone 974.16
ES128SLUL Easy Plumb Kit for Square Quad 1200X800 Left Handed Sandstone 128.41



Easy Plumb Kit = Riser leg kit and plinth panel

Please note: The addition of the riser leg kit can raise the unit by up to 100mm from the floor. Please add this to the overall measurement if used.



Order

Envirotec shower pod corner shower door sets

Product Code

Shower Doors 6mm thick glass

  inc VAT

DS6C808EX 800mm corner entry shower enclosure 6mm x 1850mm 291.52
DS6H808EX 800mm hinge door and side panel 6mm x 1900mm 274.61
DS6B808EX 800mm bifold door and side panel 6mm x 1900mm 274.53
DS6C909EX 900mm corner entry shower enclosure 6mm x 1850mm 308.62
DS6H909EX 900mm hinge door and side panel 6mm x 1900mm 288.32
DS6B909EX 900mm bifold door and side panel 6mm x 1900mm 288.78


Product Code

Shower Doors 8mm thick glass

  inc VAT

DS8C808EX 800mm corner entry shower enclosure 8mm x 2000mm 298.15
DS8H808EX 800mm hinge door and side panel 8mm x 2000mm 345.52
DS8B808EX 800mm bifold door and side panel 8mm x 2000mm 335.33

DS8H909EX 900mm hinge door and side panel 8mm x 2000mm 366.36
DS8B909EX 900mm bifold door and side panel 8mm x 2000mm 355.08
DQ8Q909EX 900mm two door quadrant shower enclosure 8mm x 2000mm 358.92




Shower Equipment



1

2

1. TMV2 Bar type mixer valve with hose, handset and riser kit

Chrome 139.03

2. TMV2 Bar type mixer valve with hose, handset and riser kit + diverter and rain head

Chrome 255.64

Your choice of shower equipment is not limited to the two shower valve kits offered above. They do however represent great value when purchased as part of a package.



Special offer

Free delivery on this product for most of mainland England






Order

Telephone for assistance

Print this page





Self contained leak free corner shower pods



Due to a policy of continual improvement the manufacturer reserves the right to change product specification without notice
