Super Ultra Low Profile shower tray


At just 4.5mm high the lowest profile of all low profile shower trays

Index > Shower Trays > Super Ultra Low Profile Shower Tray

Super-Ultra low profile shower trays

Ultra low shower tray for near level access. Superior quality by EASA.

The closest thing to a wet room shower while using a shower tray.

There are several ways to reduce the step in height to a shower. You can construct a Wet Room where the shower becomes an integral part of the floor of the room which will of course give you a zero step. Or you could rebate a low profile shower tray into the bathroom floor so it is level with the surrounding area. As with many things in life there is a trade-off with each - cost vs efficacy.

Rebating an ordinary low level tray into the floor has drawbacks. Although quicker to install than a wet room area, it can be difficult to seal the joint between the tray and the adjacent floor. Should there be a leak it may be a while before you find out as water always escapes downward without much initial fuss.

This Super-ultra low level shower tray could be the solution to quick installation, near level access and excellent integrity against water leaks.

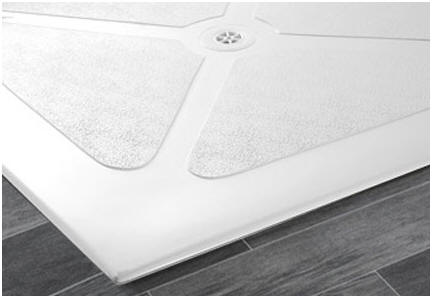

With just a 4.5mm thick flanged edge, this ultra low profile shower tray installs to a rebate in the floor but the flanged edge sits over the adjacent floor where a good water seal can be achieved - in effect becoming a hybrid of the wet room and recessed tray concepts and sharing the best qualities of each.

This Super-ultra low profile shower tray has an upstand on the edges nearest to adjacent walls, which themselves have a tiling upstand to ensure bone dry performance.

Once installed, there is only a 4.5mm lip over which the user needs to step. This almost non-existent lip make this range of trays excellent for wheelchair access.

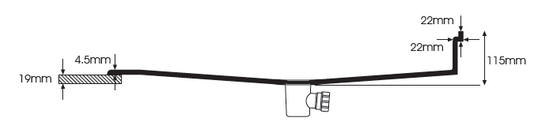

Level access shower tray installation diagram

Specifications:

19mm fall (perimeter to waste outlet)

60mm perimeter upstand (2 sides against the walls)

22mm tiling lip

95mm projection of waste trap under tray

4.5mm perimeter lip.



Available in a range of sizes:

SQUARE Super Ultra low level shower trays

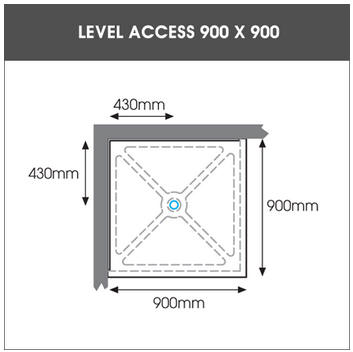

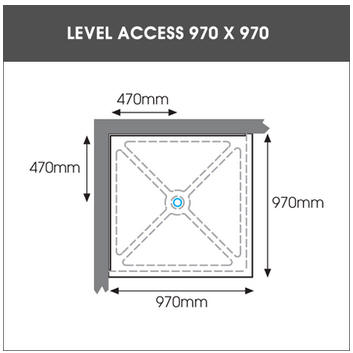

900mm x 900mm Level Access shower tray by EASA 970mm x 970mm Level Access shower tray by EASA

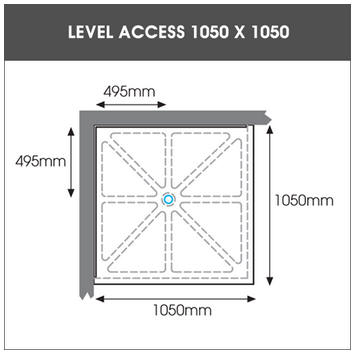

1050mm x 1050mm Level Access shower tray by EASA



Size (mm)

Hand

Excl

VAT

900 x 900 n/a 253.32
970 x 970 n/a 253.32
1050 x 1050 L or R 257.68
1200 x 800 L or R 253.32
1220 x 720 L or R 253.32
1220 x 770 L or R 253.32
1265 x 865 L or R 257.68

Order

This product qualifies for VAT Relief. Price stated excludes VAT.

Are you eligible for relief? Click this button for more information.

Are you eligible for VAT RELIEF? Click here for more information

RECTANGULAR Super Ultra low level shower trays

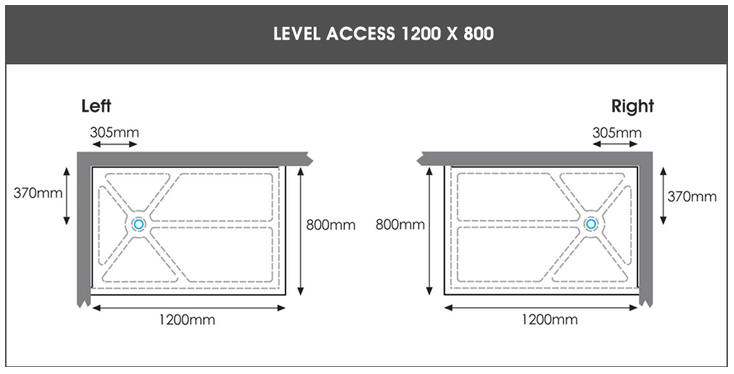

Level Access shower tray 1200mm x 800mm

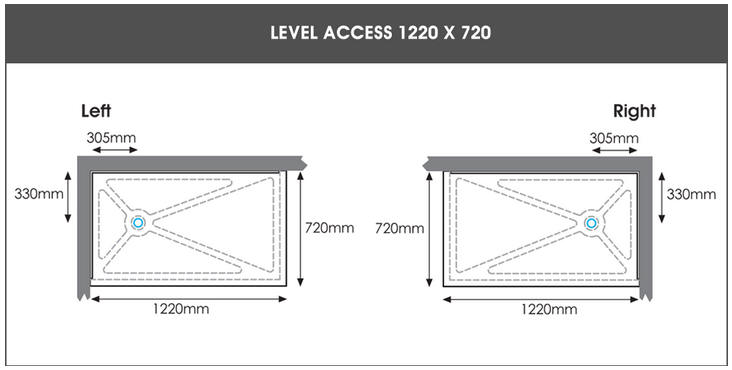

1220mm x 720mm Level Access shower tray by EASA

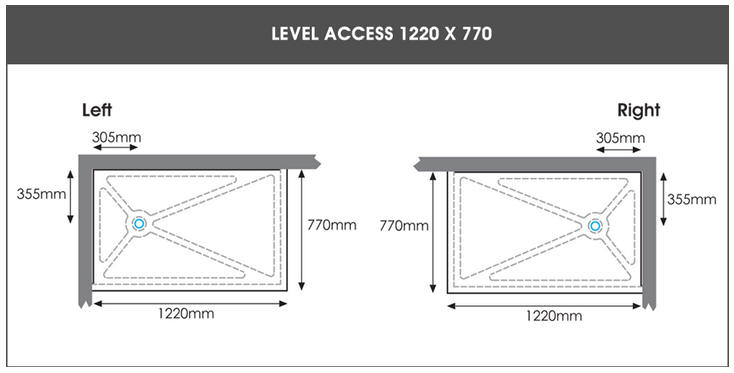

1220mm x 770mm Level Access shower tray by EASA

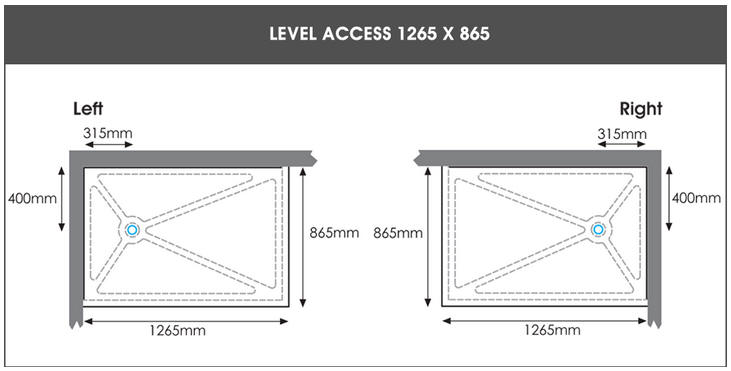

1265mm x 865mm Level Access shower tray by EASA

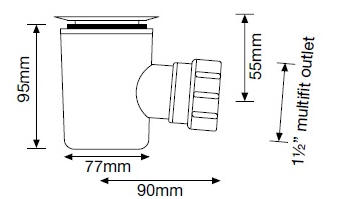

WASTE OUTLET SPECIFICATIONS:

Waste outlet gully and trap for the Level Access shower tray by EASA
