Replacement 3/4" BSP Quarter Turn Ceramic Disk Tap Valves
	Click here for tips and advice

Index > Tap Spares > 3/4" Quarter Turn Ceramic Disk Tap Valves (Professional range)

3/4" Quarter Turn Ceramic Disk Tap Valves (Professional range)

Suitable to replace most 3/4" quarter turn ceramic tap valves.

Used in many bath taps with larger 22mm (or 3/4") supply pipework.

3/4" BSP thread on body.

Sold as a pair.

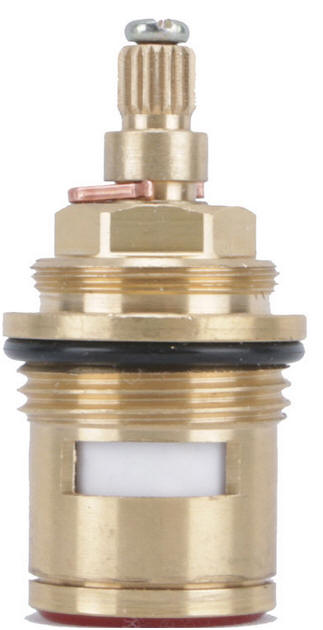

3/4" Ceramic disc quarter turn tap valve cartridge

Note:

There can be subtle differences in the manufacture of this type of valve. These differences result in small variations in the overall dimensions. Most valves will share similarities - a 3/4" BSP fitting (the threaded part) and the diameter of the valve body will always remain the same but the height/s may differ.

Differences can often be recognised visually, but it pays to measure as best possible.

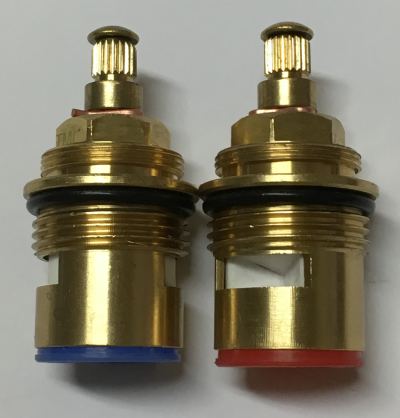

Two types of very similar valve are shown below. You may however notice that the bottom seal on Type 1 is incorporated within a brass ring that extends how far the body of the valve projects into the brassware by a couple of millimetres, whereas the the seal on the Type 2 valve fits inside the lower body making the valve slightly shorter. Only subtle, but you will appreciate what a difference this might make.

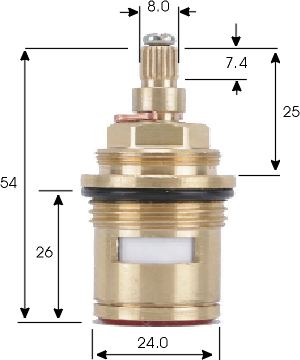

Type 1

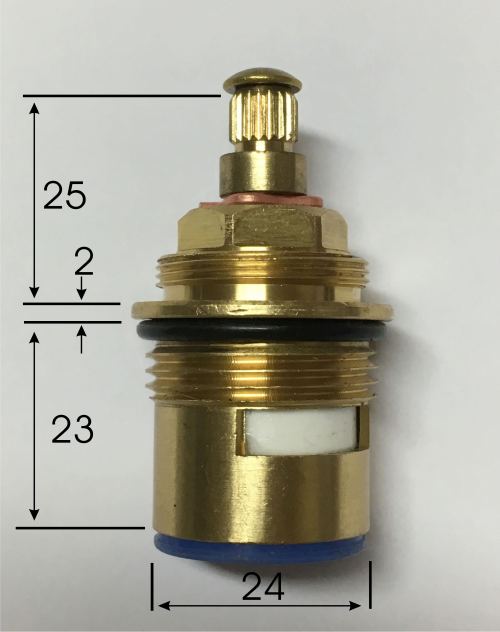

Type 2

Check your valve against this item for:

1. Appearance

2. Measurements shown on diagram

Replacement 3/4" (three quarter inch BSP) ceramic disk tap valve.

Alternative bath tap cartridge typical of modern brassware

Features

Left & Right hand opening (clockwise and anticlockwise) for Hot & Cold functions. A pair of valves will include one of each unless specifically ordered otherwise.

Precision engineered for long life and superior performance

24mm diameter at the base.

The spline is 8mm nominal diameter with 20 teeth

(For valve stems with 18 or 24 teeth on the spline please click here)

M4 thread in the top of spline

Upper body thread is M24 - Fits all shrouds and covers

These items are known to be suitable for the following:

* Nabis

*Bristan

Price: inc VAT

QT 3/4 CERAMIC

(Please state whether Type 1 or 2)
