Index > Tap Spares > 3/4" Long Stem quarter turn ceramic disk tap valve

A quarter turn replacement 3/4" BSP tap valve with long stem. Typically suited to bath taps or shower equipment.



Type: TVLS80

Sizes
24mm (nom) diameter at the base.
The spline is 8mm nom. diameter with 20 teeth
M4 thread in the spline

80mm over all length


3/4"" BSP thread (the thread that fits into the tap body)

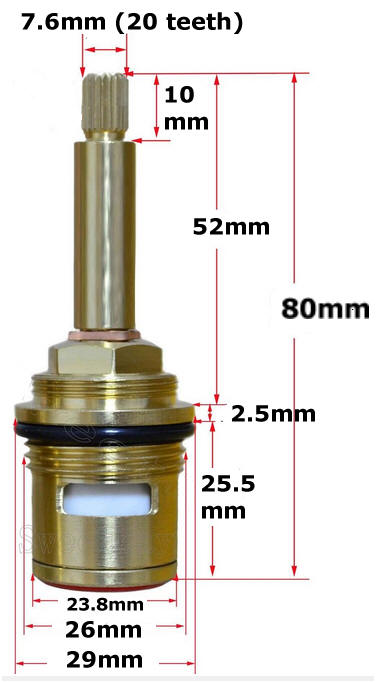

3/4" long stem quarter turn tap valve (ceramic disk)

Check your valve against this item for:

1. Appearance

2. Measurements shown on diagram

3. Check valve seat in tap for damage.









These items are known to be suitable for the following:

no specific data available







Other valve stem lengths are available.

(Please use our guide to enquire)



Other over all valve lengths (top to bottom) include:



50mm, 57mm, 60mm, 61mm, 70mm, 90mm, 99mm, 110mm



Price: inc VAT

Type: TVLS80

QT 3/4" Tap valve Long stem

Available opening to the left or the right (please specify)

39.95 each



Telephone order

Replacement long stem quarter turn tap valve (1/2")
