Low profile shower trays

Blackdown low profile shower trays


Super low profile shower trays that can be surface mounted or rebated into floor



Low profile shower trays for easy access and wheelchair use



This model of low profile shower tray is no longer available.

For suitable alternatives please call.

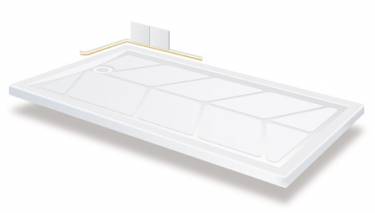

Blackdown low profile shower tray

The Blackdown is Impey's most popular shower tray option. High quality construction and superior rigidly. One of the most advanced shower trays available on the market.

The drainage aperture is positioned to enable the tray to be fully reversible and it also comes with the heavy duty Solos Dallmer water trap (with 50mm seal) and polished 'dome' waste cover.

The Blackdown range like the other shower trays in the Impey range are hand laid and formed from GRP at their factory in Somerset.

Fitting is also quick and easy and the trays are designed to be suitable for letting into the floor if level access is required, or alternatively the Blackdown trays are only 35mm high presenting a very low step-up height - if ramps are required they are also available.

The 1850x710 and 1850x830 Blackdown trays can also be cut to length if fitting between alcoves is required.

The Blackdown tray forms the basis for full cubicles with low level easy access - see Swift-fit cubicles





Blackdown 1 Low profile shower tray


Order reference code BD1

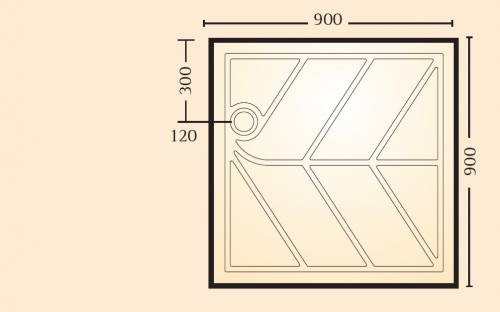

Super low profile Blackdown shower tray 900 x 900



Click Image to enlarge

Price:

Overall Dimensions 900 x 900mm
Depth 35mm

poa

Gradient 25mm



Handed No / Reversible Price also includes waste





Order your shower tray here

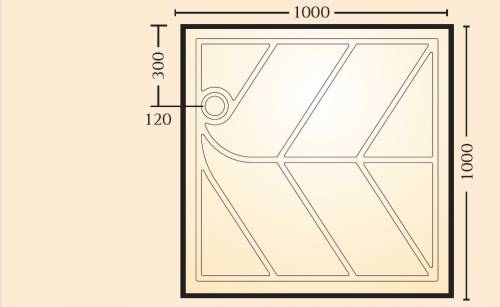

Blackdown 2 Low profile shower tray


Order reference code BD2

Super low profile Blackdown shower tray 1000 x 1000



Click Image to enlarge

Price:

Overall Dimensions 1000 x 1000mm
Depth 35mm

poa

Gradient 25mm



Handed No / Reversible Price also includes waste





Order your shower tray here



Blackdown 3 Low profile shower tray


Order reference code BD3

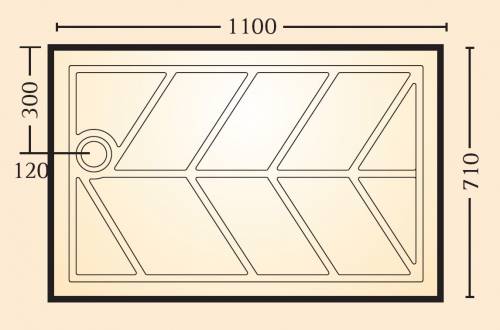

Super low profile Blackdown shower tray 1100 x 710



Click Image to enlarge

Price:

Overall Dimensions 1100 x 710mm
Depth 35mm

poa

Gradient 25mm



Handed No / Reversible Price also includes waste





Order your shower tray here



Blackdown 4 Low profile shower tray


Order reference code BD4

Super low profile Blackdown shower tray 1100 x 830



Click Image to enlarge

Price:

Overall Dimensions 1100 x 830mm
Depth 35mm

poa

Gradient 25mm



Handed No / Reversible Price also includes waste





Order your shower tray here



Blackdown 5 Low profile shower tray


Order reference code BD5

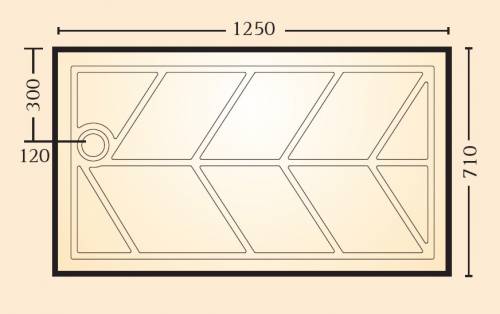

Super low profile Blackdown shower tray 1250 x 710



Click Image to enlarge

Price:

Overall Dimensions 1250 x 710mm
Depth 35mm

poa

Gradient 25mm



Handed No / Reversible Price also includes waste





Order your shower tray here



Blackdown 6 Low profile shower tray


Order reference code BD6

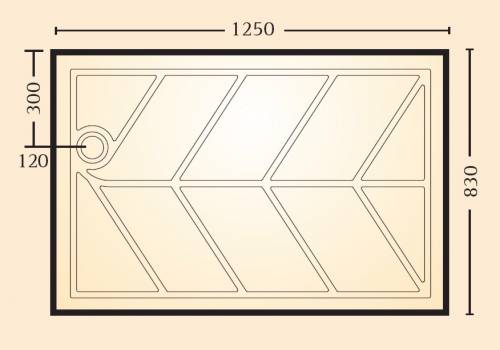

Super low profile Blackdown shower tray 1250 x 830



Click Image to enlarge

Price:

Overall Dimensions 1250 x 830mm
Depth 35mm

poa

Gradient 25mm



Handed No / Reversible Price also includes waste





Order your shower tray here



Blackdown 7 Low profile shower tray


Order reference code BD7

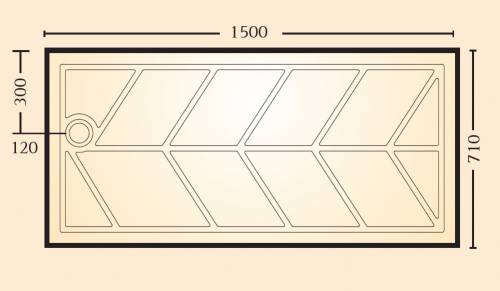

Super low profile Blackdown shower tray 1500 x 710



Click Image to enlarge

Price:

Overall Dimensions 1500 x 710mm
Depth 35mm

poa

Gradient 25mm



Handed No / Reversible Price also includes waste





Order your shower tray here



Blackdown 8 Low profile shower tray


Order reference code BD8

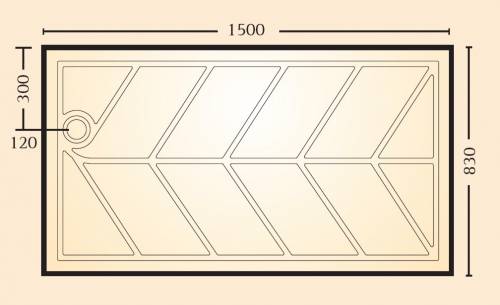

Super low profile Blackdown shower tray 1500 x 830



Click Image to enlarge

Price:

Overall Dimensions 1500 x 830mm
Depth 35mm

poa

Gradient 25mm



Handed No / Reversible Price also includes waste





Order your shower tray here



Blackdown 9 Low profile shower tray


Order reference code BD9

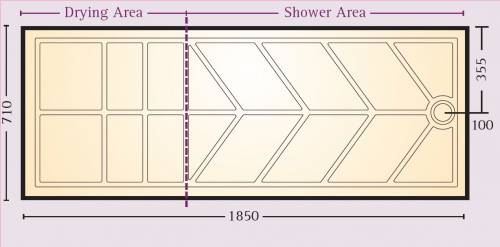

Super low profile Blackdown shower tray 1850 x 710



Click Image to enlarge

Price:

Overall Dimensions 1850 x 710mm
Depth 35mm

poa

Gradient 25mm



Handed Yes / Left or Right Price also includes waste





Order your shower tray here



Blackdown 10 Low profile shower tray


Order reference code BD10

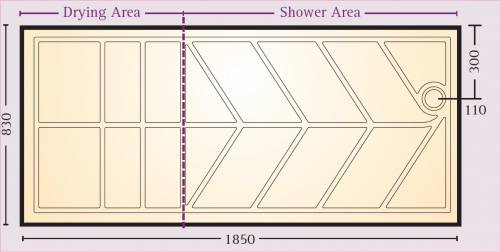

Super low profile Blackdown shower tray 1850 x 830



Click Image to enlarge

Price:

Overall Dimensions 1850 x 830mm
Depth 35mm

poa

Gradient 25mm



Handed Yes / Left or Right Price also includes waste
