 Novellini Young PLUS (G+F) hinged door corner shower enclosure

 Novellini Young PLUS semi-frameless corner shower enclosure

Index > Shower Enclosures > Novellini > Young PLUS > Corner shower enclosure

Novellini Young PLUS Semi-frameless hinged shower door and fixed panel for corner setting

The Novellini Young PLUS range is an exclusive variant of the very popular Young 2.0 range.

These modern minimalist shower enclosures are 2000mm tall and equipped with 8mm thick toughened and coated  glass. Available with Matt Black, Silver, Brushed Inox or Chrome coloured profiles.
To create a corner shower enclosure requires two components. The hinged door YOUNG PLUS G may only be used in conjunction with fixed side panel YOUNG PLUS F to create the enclosure illustrated below.

If you require a hinged shower door for an alcove setting please refer to the Young Plus 1B.

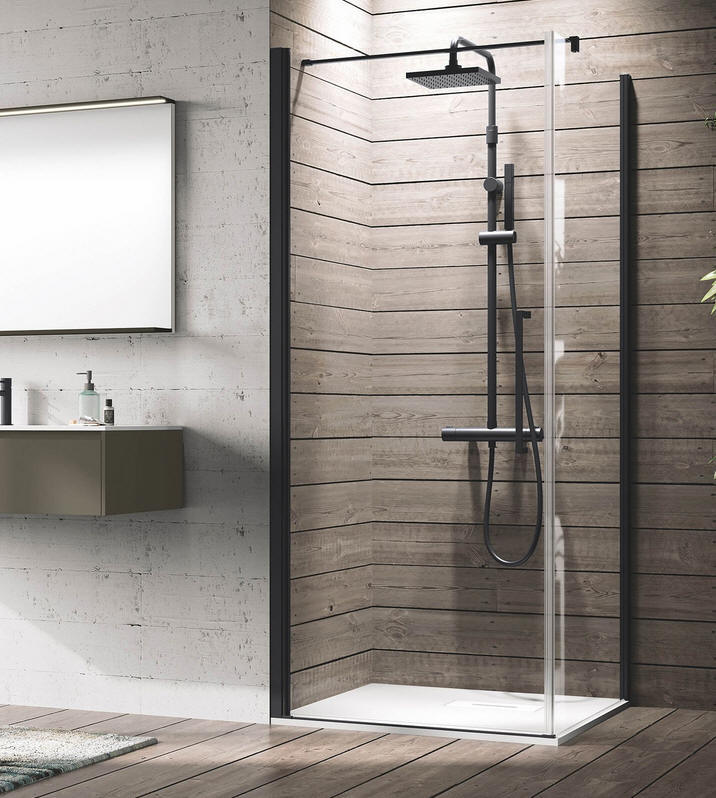

Novellini semi-frameless YOUNG PLUS G (Door) + F (Fixed side panel) to create a G+F corner shower encloause. Shown here with Matt Black profiles.

The Novellini Young PLUS (G) hinged shower door opens (swings) both inward and outward.

Fitted with a rising hinge, the enclosure is suitable for use with a shower tray or on a wet room floor that has been tiled or covered in vinyl non slip floor covering.

Bottom seal differs according to application. Please state which you require.

Optional 'wiper' seal if door is installed without supplied threshold



Optional wiper strip is door is installed without using the supplied threshold

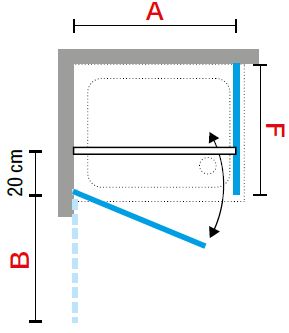

Novellini Young PLUS dimension diagram 2

Novellini Young PLUS dimension diagram



NOVELLINI YOUNG PLUS G

Minimalist Hinged shower door - Corner setting
  Overall Width   Swing Access Price inc VAT
(mm) A   B * Profile colour
  from to       Silver Chrome/Matt Black/Matt White Inox

- 760 780   670 680 £417.30 £461.76 £577.20
800 770 790   680 690 £426.66 £471.90 £590.46
800 790 810   700 710 £426.66 £471.90 £590.46
- 810 830   720 730 £426.66 £471.90 £590.46
850 830 850   740 750 £426.66 £471.90 £590.46
- 850 870   760 770 £426.66 £471.90 £590.46
900 870 890   780 790 £444.60 £492.18 £615.42
900 890 910   800 810 £444.60 £492.18 £615.42
- 910 930   820 830 £444.60 £492.18 £615.42
950 930 950   840 850 £444.60 £492.18 £615.42
- 950 970   860 870 £444.60 £492.18 £615.42
1000 970 990   880 890 £463.32 £513.24 £641.94
1000 990 1010   900 910 £463.32 £513.24 £641.94
- 1010 1030   920 930 £463.32 £513.24 £641.94
- 1030 1050   940 950 £463.32 £513.24 £641.94

The YOUNG PLUS G door must be paired with a fixed side panel from the YOUNG PLUS F range to create a corner enclosure.

Special Size   Bespoke sizes are available to Special Order

H - 1400-2200mm   Special Order POA POA POA
W - 600-1200mm
240826



To complete a corner enclosure the YOUNG PLUS G pivot door needs to be paired with one of the compatible fixed side panels listed below:



NOVELLINI YOUNG PLUS F

Fixed side panel - corner setting

Please specify handing (i.e. to which side of door it will install)
  Overall Width       Price inc VAT
(mm) F       Profile colour
  from to       Silver Chrome/Matt Black/Matt White Inox

70 670 690       £381.42 £421.98 £528.06
70 690 710       £381.42 £421.98 £528.06
- 760 780       £391.56 £433.68 £542.10
800 770 790       £391.56 £433.68 £542.10
- 790 810       £391.56 £433.68 £542.10
- 810 830       £391.56 £433.68 £542.10
- 830 850       £391.56 £433.68 £542.10
- 850 870       £414.96 £458.64 £573.30
900 870 890       £414.96 £458.64 £573.30
- 890 910       £414.96 £458.64 £573.30
- 910 930       £414.96 £458.64 £573.30
- 930 950       £414.96 £458.64 £573.30
- 950 970       £414.96 £458.64 £573.30
1000 970 990       £436.80 £461.45 £507.59
- 990 1010       £436.80 £461.45 £507.59
- 1010 1030       £436.80 £461.45 £507.59
- 1030 1050       £436.80 £461.45 £507.59
1200 1170 1190       £475.80 £527.28 £659.10
1200 1190 1210       £475.80 £527.28 £659.10

Special Size   Bespoke sizes are available to Special Order Order

H - 1400-2200mm   Special Order POA POA POA
W - 200-1200mm
240826







Been offered a 'Price Match'? Read more...

Options

Customise your enclosure with the following frame colours and glass types.

Frame colour

Matt Black

Chrome

Brushed Inox

Silver



Black frame option

Chrome frame option

Sliver frame option

Glass Type

Clear









Clear glass sample









Product Literature
Product data sheet Installation Handbook 1
