Novellini Young PLUS 1B hinged shower door for alcove setting

Novellini Young PLUS 1B hinged shower door

Index > Shower Enclosures > Novellini > Young PLUS > Hinged alcove shower door

Novellini Young PLUS 1B Hinged shower door

The Novellini Young PLUS range is an exclusive variant of the very popular Young 2.0 range.

These modern minimalist shower enclosures are 2000mm tall and equipped with 8mm thick glass. Available with black or chrome coloured profiles and a choice of either totally clear or clear with a satin modesty band glass - each being toughened and coated to resist lime scale.

The YOUNG PLUS 1B hinged shower door is ideal for use in an alcove courtesy of wall profiles on either side. The profiles, that can be supplied in Matt Black, Brushed Inox, Chrome or White (white available to special order only) facilitate adjustment for out-of-true walls and fine adjustment.

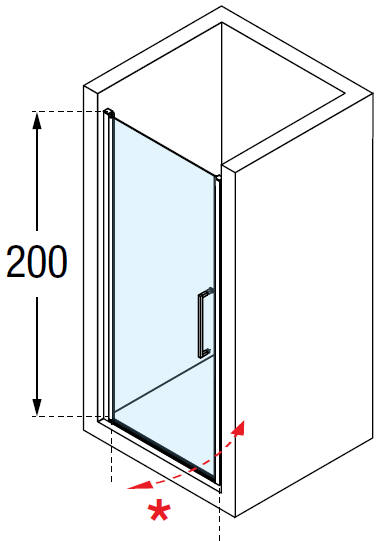

The illustration below shows the 1B hinged door with chrome coloured wall profiles and the optional glass with satin modesty panel.

Novellini YOUNG PLUS 1B hinged shower door for alcove installation. Available with black or chrome coloured wall profiles and clear or modesty glass.

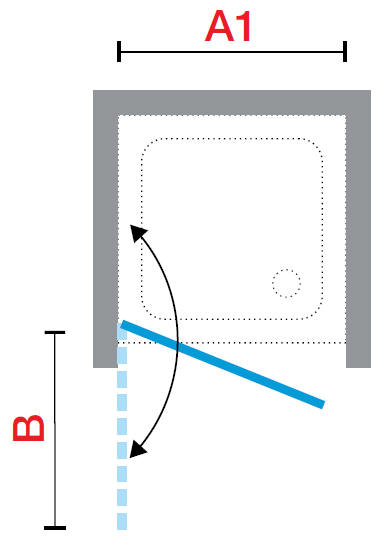

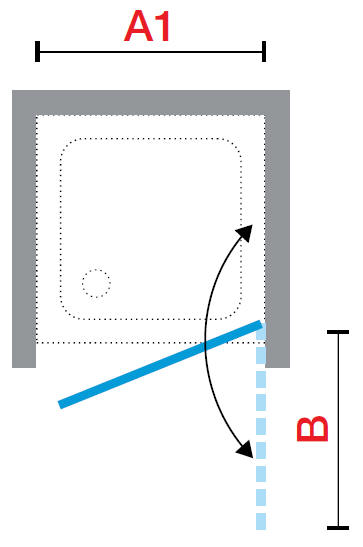

Novellini YOUNG PLUS 1B diagram 1

The Novellini Young PLUS (1B) hinged shower door opens (swings) both inward and outward.

Fitted with a rising hinge, the enclosure is suitable for use with a shower tray or on a wet room floor that has been tiled or covered in vinyl non slip floor covering.

Bottom seal differs according to application. Please state which you require.

Optional 'wiper' seal if door is installed without supplied threshold

Optional wiper strip is door is installed without using the supplied threshold

NOVELLINI YOUNG PLUS 1B
Hinged shower door - Alcove setting

	Overall Width		Swing	Access	Price inc VAT
(mm)	A		B	*	Profile colour
	from	to			Silver	Chrome/Matt Black	Brushed Inox

800	770	810	680	690	£522.60	£577.98	£723.06
	820	860	730	740	£542.88	£601.38	£751.92
900	870	910	780	790	£542.88	£601.38	£751.92
	920	830	830	840	£563.16	£624.00	£780.00
1000	970	1010	880	890	£563.16	£624.00	£780.00


Note: The profile colour MATT WHITE is available to special order. The price is the same as Matt Black.
Special Size			Bespoke sizes are available to Special Order

			Special	Order	POA	POA	POA

240826

Although the YOUNG PLUS 1B door is designed for use in an alcove (recess) it can be used in a corner setting with the addition of a fixed side panel. The resulting enclosure will have a profile situated on the outer corner - unlike the YOUNG PLUS G which only has magnetic seals at the corner (no profile).

The fixed side panel is specific to the 1B door and is known as the F1B. Sizes and prices as follows:

NOVELLINI YOUNG PLUS F1B

Fixed side panel Reversible
Door must be supported by adjacent wall. It may not hinge from fixed panel.

	Overall Width				Price inc VAT
(mm)	F				Profile colour
	from	to			Silver	Chrome/Matt Black/Matt White	Inox

600	570	590			£340.08	£375.96	£470.34
700	670	690			£360.36	£399.36	£499.20
700	690	710			£360.36	£399.36	£499.20
800	770	790			£385.32	£425.88	£532.74
800	790	810			£385.32	£425.88	£532.74
900	870	890			£407.94	£450.84	£563.94
900	890	910			£407.94	£450.84	£563.94
1000	970	990			£429.00	£475.02	£594.36
1000	990	1010			£429.00	£475.02	£594.36
1200	1170	1190			£429.00	£475.02	£594.36
1200	1190	1210			£429.00	£475.02	£594.36

Note: The profile colour MATT WHITE is available to special order. The price is the same as Matt Black.

Special Size			Bespoke sizes are available to Special Order

H - 1400-2200mm			Special	Order	POA	POA	POA
W - 600-1200mm
100926

Been offered a 'Price Match'? Read more...

Options Customise your enclosure with the following frame colours and glass types.
Frame colour	Matt Black	Chrome	Brushed INOX	Silver


Glass Type	Clear	Satin band

Product Literature
Product data sheet	Installation Handbook 1
