Impress corner shower cubicle

Swift-Fit disabled access self contained corner shower with half height shower doors

Index > Special Needs bathing > Swift fit cubicles > Impress 2 sided corner shower

Self contained Disabled corner shower cubicle with low shower tray ideal for wheelchairs.

Impress bespoke all in one disabled shower cubicle

Included in the Impey Swift-Fit range is the Impress Shower Cubicle. This easy to install two sided corner cubicle requires no tiling, is simple to keep clean and ideally suited for wheelchair access with the option of a ramp if required.

A shower enclosure built to your specification that's leak free and requires no tiling

The size of the Impress Shower Cubicle is based on whatever size of shower tray you choose from the Middleton or Highfield ranges.

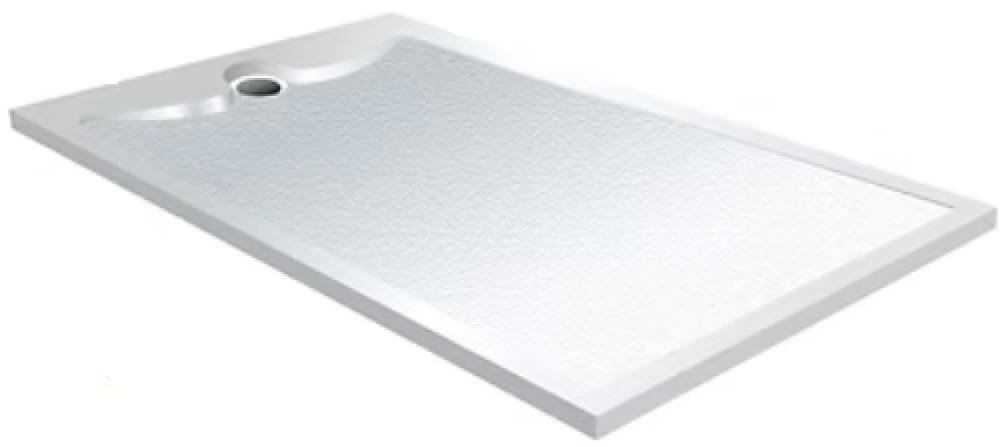

The Middleton - which has an anti-slip surface and ultra low profile of just 40mm. This offers a minimal step-in height, is suitable for timber or solid floor, can be surface mounted or rebated into floor for level access. With such a low profile the waste pipe work must run below floor level.
The Highfield - Allows waste pipe work to run above floor level. This can be a useful feature for a number of reasons, but particularly if the floor is solid and breaching it is considered undesirable. The Highfield shower tray is 115mm high with an anti-slip surface. The waste outlet pipe can exit the tray above floor from any one of the four sides.


The MIDDLETON shower tray	The HIGHFIELD shower tray

Full height back panels negate the need for tiled walls. This greatly reduces installation time and enhances cleanliness by minimising places for moisture and dirt to collect. What's more, they are leak free.

The front is enclosed on two sides by half height doors that can be specified to suit (hinged single panel or bi-fold) facilitating wide easy access for the user whilst allowing a carer to assist without getting soaked.

A custom built all-in-one leak-free shower enclosure

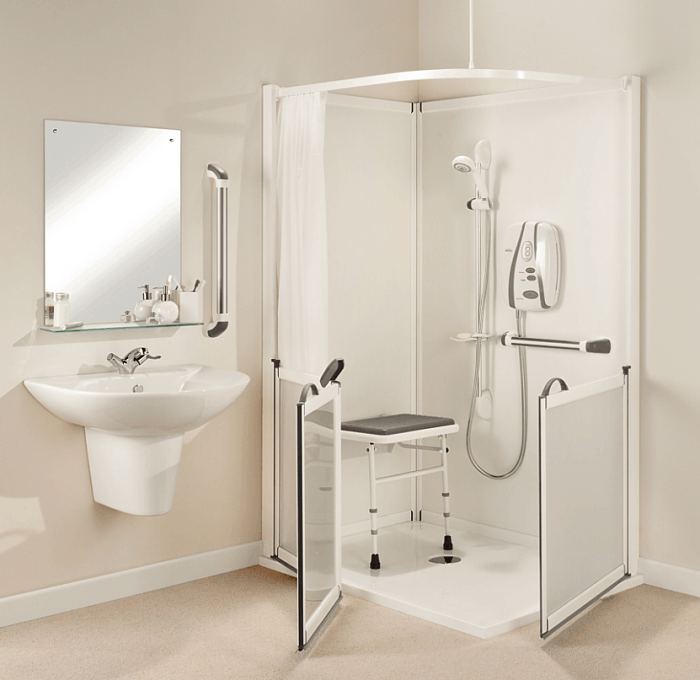

Built to your spec, the above image shows a corner enclosure with 'Option J' doors. The enclosure illustrated was specified with low level shower tray, fold down shower seat, grab rail and electric shower with extra long hose & rail. The panelled walls require no tiling and locate with low profile shower tray to prevent leaks.

(Please note: Bathroom sanitary ware, brassware, mirrors and decor are available but not included in cubicle price)

Easy to install and just as easy to remove. The Impress self-contained shower enclosure is a versatile answer anywhere shower facilities are required.

3 stage high performance door seal	Inter-meshing hinge seals

Plumbing and waste water connections

The point of the 'quick fit' range is to make installation (and removal) easy. The type of shower equipment available to you depends on the availability of cold/hot water in the vacinity. There are options for the removal of waste water depending on proximity to drains. Whatever your scenario there will be a solution. If you would like more advice about different ways to deal with waste water please call.

Create an annexe in your home with ease

Don't forget, bathrooms aren't the only rooms in the home that might benefit from having such a cubicle. The Impress shower can provide a virtual en-suite facility anywhere in the home making the creation of an annexe simple. Furthermore, should your needs ever change the cubicle can be removed with little or no evidence it was ever there.

Perfect shower solution for carer assistance

If the concept appeals but you require a full three sided shower cubicle with doors to the front you might like to check out the Snowdon Range. Full information can be view by following the link.

You might also like to view the virtual ensuite Snowdon Shower Toilet. As the description suggests, a shower enclosure incorporating a toilet with various custom options such as a wash basin. Easy to install, easy to remove. No need for difficult and expensive building alterations.

Customise your Impress shower enclosure

There is nothing 'standard' about the Impress shower enclosure. IMPRESS is a premium quality enclosure that can be customised to your specification. You decide what you want your enclosure to include and it will be built exactly to that specification, then delivered to site where it can be quickly and easily assembled. A price table is shown below giving you an idea of the various elements. However, you may prefer to contact us for a no-obligation chat and quotation. Simply specify what you would like your Impress to include and leave the rest to us.

VAT Relief on your purchase

The Impress shower enclosure qualifies for VAT Relief, but do you? To find out more visit the section of our website that will explain.

IMPRESS Easy fit 2 sided shower enclosure PRICES & INFO
IMPRESS shower cubicle with tray options
With HIGHFIELD tray (Above floor waste)
	ex VAT	inc VAT
Impress 2 sided cubicle, Highfield tray Option H doors, 1000 x 700	£1,961.20	£2,353.44
Impress 2 sided cubicle, Highfield tray Option J doors, 1000 x 700	£1,961.20	£2,353.44

Impress 2 sided cubicle, Highfield tray Option H doors, 1000 x 800	£1,961.20	£2,353.44
Impress 2 sided cubicle, Highfield tray Option J doors, 1000 x 800	£1,961.20	£2,353.44

Impress 2 sided cubicle, Highfield tray Option H doors, 1000 x 1000	£1,961.20	£2,353.44
Impress 2 sided cubicle, Highfield tray Option J doors, 1000 x 1000	£1,961.20	£2,353.44

Impress 2 sided cubicle, Highfield tray Option H doors, 1200 x 700	£1,961.20	£2,353.44
Impress 2 sided cubicle, Highfield tray Option J doors, 1200 x 700	£1,961.20	£2,353.44

Impress 2 sided cubicle, Highfield tray Option H doors, 1200 x 800	£1,961.20	£2,353.44
Impress 2 sided cubicle, Highfield tray Option J doors, 1200 x 800	£1,961.20	£2,353.44

Impress 2 sided cubicle, Highfield tray Option H doors, 1300 x 700	£1,961.20	£2,353.44
Impress 2 sided cubicle, Highfield tray Option J doors, 1300 x 700	£1,961.20	£2,353.44

Impress 2 sided cubicle, Highfield tray Option H doors, 1300 x 800	£1,961.20	£2,353.44
Impress 2 sided cubicle, Highfield tray Option J doors, 1300 x 800	£1,961.20	£2,353.44

Impress 2 sided cubicle, Highfield tray Option H doors, 1400 x 700	£1,961.20	£2,353.44
Impress 2 sided cubicle, Highfield tray Option J doors, 1400 x 700	£1,961.20	£2,353.44

Impress 2 sided cubicle, Highfield tray Option H doors, 1400 x 800	£1,961.20	£2,353.44
Impress 2 sided cubicle, Highfield tray Option J doors, 1400 x 800	£1,961.20	£2,353.44

Impress 2 sided cubicle, Highfield tray Option H doors, 1500 x 700	£1,961.20	£2,353.44
Impress 2 sided cubicle, Highfield tray Option J doors, 1500 x 700	£1,961.20	£2,353.44

Impress 2 sided cubicle, Highfield tray Option H doors, 1500 x 800	£1,961.20	£2,353.44
Impress 2 sided cubicle, Highfield tray Option J doors, 1500 x 800	£1,961.20	£2,353.44

April 2022
Note: The HIGHFIELD is a low profile shower tray offering 115mm step height. The tray incorporates an 'above ground' waste outlet - a particularly useful feature if running pipework in or under the floor is not possible.

IMPRESS shower cubicle
With MIDDLETON 2 Tray (Below floor waste)
	ex VAT	inc VAT
Impress 2 sided cubicle, MIDDLETON tray Option H doors, 1000 x 700	£1898.19	£2277.83
Impress 2 sided cubicle, MIDDLETON tray Option J doors, 1000 x 700	£1898.19	£2277.83

Impress 2 sided cubicle, MIDDLETON tray Option H doors, 1000 x 800	£1898.19	£2277.83
Impress 2 sided cubicle, MIDDLETON tray Option J doors, 1000 x 800	£1898.19	£2277.83

Impress 2 sided cubicle, MIDDLETON tray Option H doors, 1000 x 1000	£1898.19	£2277.83
Impress 2 sided cubicle, MIDDLETON tray Option J doors, 1000 x 1000	£1898.19	£2277.83

Impress 2 sided cubicle, MIDDLETON tray Option H doors, 1200 x 700	£1898.19	£2277.83
Impress 2 sided cubicle, MIDDLETON tray Option J doors, 1200 x 700	£1898.19	£2277.83

Impress 2 sided cubicle, MIDDLETON tray Option H doors, 1200 x 800	£1898.19	£2277.83
Impress 2 sided cubicle, MIDDLETON tray Option J doors, 1200 x 800	£1898.19	£2277.83

Impress 2 sided cubicle, MIDDLETON tray Option H doors, 1400 x 700	£1898.19	£2277.83
Impress 2 sided cubicle, MIDDLETON tray Option J doors, 1400 x 700	£1898.19	£2277.83

Impress 2 sided cubicle, MIDDLETON tray Option H doors, 1400 x 800	£1898.19	£2277.83
Impress 2 sided cubicle, MIDDLETON tray Option J doors, 1400 x 800	£1898.19	£2277.83

Impress 2 sided cubicle, MIDDLETON tray Option H doors, 1500 x 700	£1898.19	£2277.83
Impress 2 sided cubicle, MIDDLETON tray Option J doors, 1500 x 700	£1898.19	£2277.83

Impress 2 sided cubicle, MIDDLETON tray Option H doors, 1500 x 800	£1898.19	£2277.83
Impress 2 sided cubicle, MIDDLETON tray Option J doors, 1500 x 800	£1898.19	£2277.83


Note: The MIDDLETON 2 is a low profile shower tray offering minimal 40mm step height, or can be recessed into floor for level access. This tray is designed to have the waste run below floor level. A ramp kit is available for the MIDDLETON 2 shower tray.


Additions and extras	ex VAT	inc VAT
TRESPA roof panel (includes lights)	£255.15	£306.18
Extract fan kit (Roof panel required)	£160.61	£192.73
2 METER ACCESS RAMP SECTION	poa	poa
RAMP CORNER SECTION	poa	poa

Extra Long support rod for curtain rail (See below for info)	£30	£36.00

Curtain Rail - Ceiling support

The shower curtain rail of the IMPRESS corner cubicle is supplied with a support rod (950mm long) which attaches to the ceiling. The rod must be cut on-site to a length appropriate to the height of the ceiling. An optional extra long rod (1150mm) is available for use where the ceiling is particularly high.

Ordering an Extra Long rail support rod

If the extra long support rod is ordered at the same time as the cubicle there will be no shipping charge. If ordered separately an additional shipping charge will apply.

Add in the following options

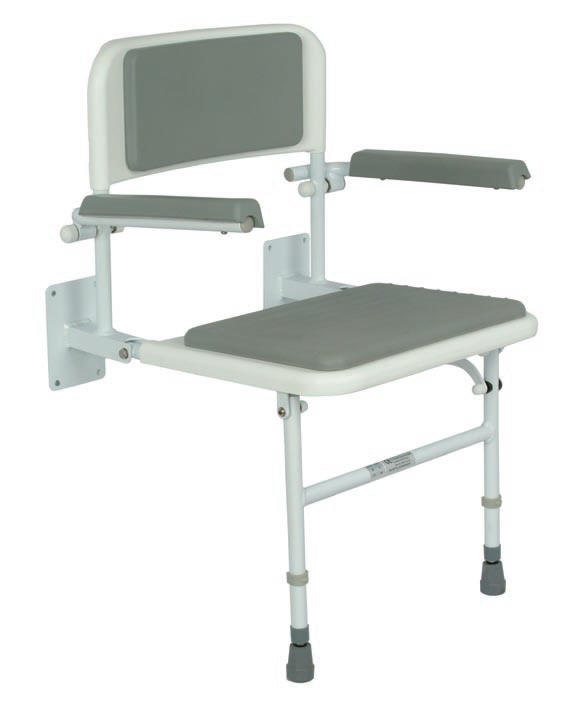

Shower seat or stool	Grab rails	Care shower equipment

Configure your shower enclosure

Simply decide:

the size of cubicle you require (the footprint size based on shower tray)
the type of shower tray you require - low level MIDDLETON 2 or HIGHFIELD (see description)
how you want the cubicle handed (left or right hand corner) left hand illustrated above - see diagrams below for examples of each.
and the door configuration (H or J) that best suits your installation criteria.

then add in things like:

grab rails

shower stools or seats

shower equipment (electric or mixer type equipment)

Send your shopping list to us or give us a call with the details and we'll organise a no-obligation quotation for you in no time.

Don't forget, if this all get a bit confusing please don't hesitate to call for assistance. One of our friendly staff will be only too pleased to help.

Other shower cubicle options available to your specification

A three sided full shower cubicle with doors to the front is available in the Snowdon Range. Full information can be view by following the link.

You might also like to view the virtual ensuite Snowdon Shower Toilet. Easy to install, easy to remove. No need for difficult and expensive building alterations or tiling. The perfect answer when creating new bathing facilities.

Impress Shower Cubicle Configuration Handing and Door options

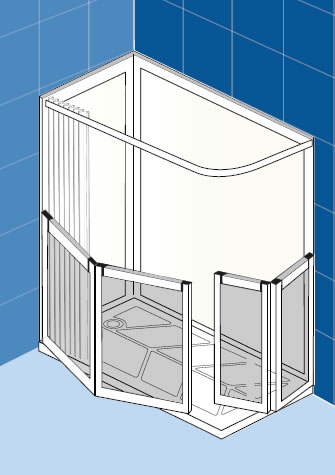

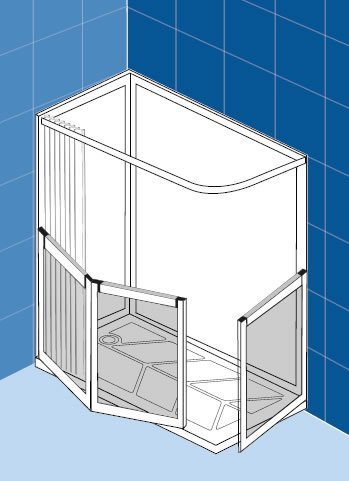

Option H Specification	Option J Specification

Left hand enclosure illustrated above.	Left hand enclosure illustrated above.
Two half height bi-folds meeting on the corner, L-shaped curtain rail and curtain.	One bi-fold and single door meeting on the corner, L-shaped curtain rail and curtain.
Right hand enclosure illustrated below.	Right hand enclosure illustrated below.
