Snowdon Disabled Shower
Toilet Cubicle
|
|
Swift-Fit
easy access combined shower toilet enclosure
|
|
|
The
Snowdon Shower Cubicle with WC
All-in-one
disabled shower cubicle incorporating a toilet
|
|
 |

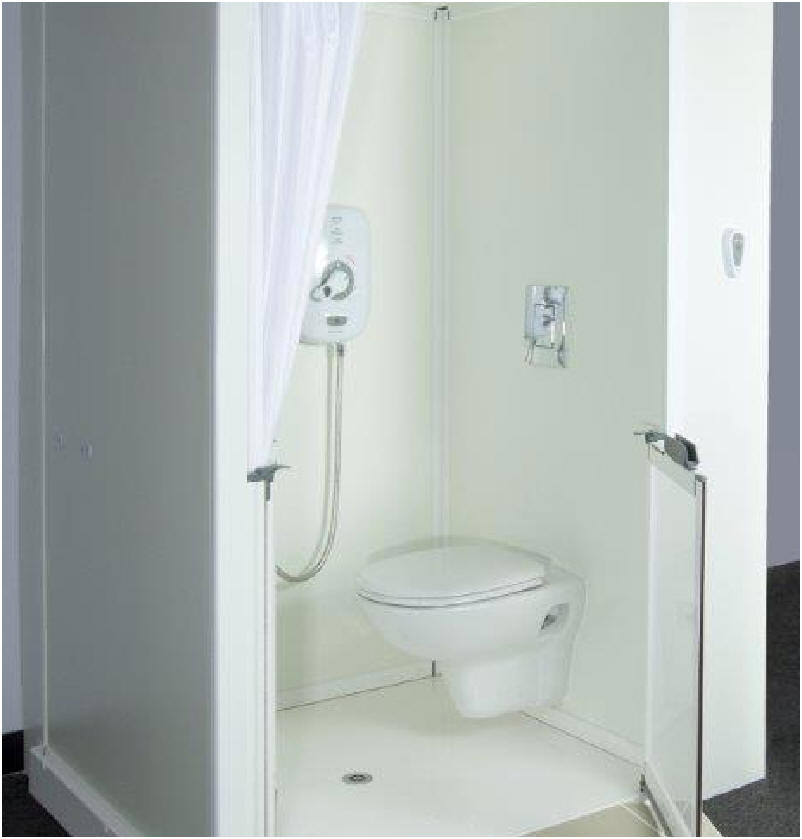

The Snowdon shower toilet
cubicle is a premium quality product.
Offering a virtual all-in-one ensuite enclosure. Shower, washroom and toilet cubicle
- a little like a self contained
wet room that requires no tiling.
Built to your
specification and available in a comprehensive range
of sizes the Snowdon Shower Toilet Cubicle is a
super solution where space is a premium.
You may customise the shower
toilet cubicle exactly to your requirements. Chose your shower tray (with above or below floor
waste), the half height door type and various
optional accessories such as hand wash basin,
grab rails etc. You may choose or
vary the layout and handing.
The Snowdon shower toilet
cubicle is easy to configure and we will be there to
offer advice should you need it.
So easy to install, easy to
keep clean and easy to uninstall - an important
consideration should you only wish to change the use
of a room for a limited period of time. |
|
Shower
Toilet Cubicle is supplied
ready to assemble on site
|
|
The shower toilet
is supplied complete with all the
components required to make your
enclosure. Tray, walls, doors, WC pan
(with support frame and cistern),
inspection panel and any other options
you have selected. Assembly is quick and
simple.

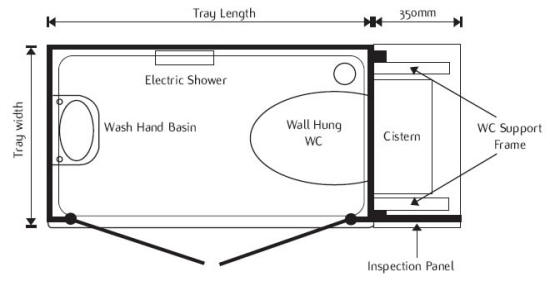

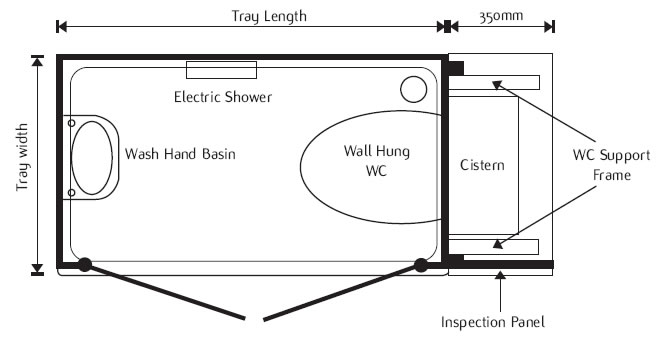

The size of the
shower toilet cubicle is based on the
size of the shower tray you select.
The support frame for the WC and cistern are
hidden behind the inspection panel which
will add 350mm* to the length or your
chosen tray size.
(*Please don't forget to add this
dimension when measuring) |
|
|
|
|
The SNOWDON shower
toilet cubicle is based
on a choice of two types
of shower tray - The
HIGHFIELD or the
MIDDLETON 2.
-

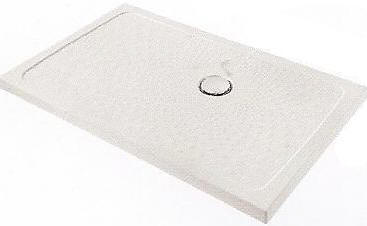

The
MIDDLETON - which has an
anti-slip surface and ultra
low profile of just 40mm offers a minimal
step-in height and is suitable
for timber or solid floors.
It
can be surface mounted or
rebated into floor for level
access. With such a low
profile the waste pipe work
must run below floor level.
-
The
HIGHFIELD - Also has an
anti-slip surface and sits a
little higher (at 115mm). The
additional height allows waste
pipe work to run above floor
level. This can be a useful
feature for a number of reasons,
but particularly if the floor is
solid and breaching it is
considered difficult or
undesirable.
The waste outlet pipe can exit
the tray above floor from any
one of the four sides.
|
|
|
|
SNOWDON Shower toilet
cubicle price list
|
|
Supplied with a
MIDDLETON 2
Shower tray
(Low profile, waste
to run below floor) |
|
|
ex VAT |
inc VAT |
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option G doors, 1200 x 700 shower tray |
£2772.33 |
£3326.80 |
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option K doors, 1200 x 700 shower tray |
£2772.33 |
£3326.80 |
|
|
|
|
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option G doors, 1200 x 800 shower tray |
£2772.33 |
£3326.80 |
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option K doors, 1200 x 800 shower tray |
£2772.33 |
£3326.80 |
|
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option G doors, 1300 x 700 shower tray |
£2772.33 |
£3326.80 |
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option K doors, 1300 x 700 shower tray |
£2772.33 |
£3326.80 |
|
|
|
|
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option G doors, 1300 x 800 shower tray |
£2772.33 |
£3326.80 |
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option K doors, 1300 x 800 shower tray |
£2772.33 |
£3326.80 |
|
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option G doors, 1400 x 700 shower tray |
£2772.33 |
£3326.80 |
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option K doors, 1400 x 700 shower tray |
£2772.33 |
£3326.80 |
|
|
|
|
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option G doors, 1400 x 800 shower tray |
£2772.33 |
£3326.80 |
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option K doors, 1400 x 800 shower tray |
£2772.33 |
£3326.80 |
|
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option G doors, 1500 x 700 shower tray |
£2772.33 |
£3326.80 |
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option K doors, 1500 x 700 shower tray |
£2772.33 |
£3326.80 |
|
|
|
|
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option G doors, 1500 x 800 shower tray |
£2772.33 |
£3326.80 |
|
SNOWDON Shower
Toilet cubicle, MIDDLETON tray
Option K doors, 1500 x 800 shower tray |
£2772.33 |
£3326.80 |
|
April 2022 |
 |
 |
|
|
|
Supplied with a
HIGHFIELD Shower
tray
(115mm step in height, waste
can run above
floor level) |
|
|
ex VAT |
inc VAT |
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option G doors, 1200 x 700 shower tray |
£2,873.13 |
£3,447.76 |
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option K doors, 1200 x 700 shower tray |
£2,873.13 |
£3,447.76 |
|
|
|
|
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option G doors, 1200 x 800 shower tray |
£2,873.13 |
£3,447.76 |
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option K doors, 1200 x 800 shower tray |
£2,873.13 |
£3,447.76 |
|
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option G doors, 1300 x 700 shower tray |
£2,873.13 |
£3,447.76 |
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option K doors, 1300 x 700 shower tray |
£2,873.13 |
£3,447.76 |
|
|
|
|
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option G doors, 1300 x 800 shower tray |
£2,873.13 |
£3,447.76 |
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option K doors, 1300 x 800 shower tray |
£2,873.13 |
£3,447.76 |
|
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option G doors, 1400 x 700 shower tray |
£2,873.13 |
£3,447.76 |
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option K doors, 1400 x 700 shower tray |
£2,873.13 |
£3,447.76 |
|
|
|
|
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option G doors, 1400 x 800 shower tray |
£2,873.13 |
£3,447.76 |
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option K doors, 1400 x 800 shower tray |
£2,873.13 |
£3,447.76 |
|
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option G doors, 1500 x 700 shower tray |
£2,873.13 |
£3,447.76 |
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option K doors, 1500 x 700 shower tray |
£2,873.13 |
£3,447.76 |
|
|
|
|
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option G doors, 1500 x 800 shower tray |
£2,873.13 |
£3,447.76 |
|
SNOWDON Shower
Toilet cubicle, Highfield tray
Option K doors, 1500 x 800 shower tray |
£2,873.13 |
£3,447.76 |
| |
|
|
|
|
Additions and
options |
ex VAT |
inc VAT |
|
Wash hand
basin with 2 taps |
£179.68 |
£215.62 |
|
Wash hand
basin with mixer tap |
£199.62 |
£239.54 |
|
Wash hand
basin with Redring
heater tap |
£245.33 |
£294.40 |
|
MIRA ATL
Flex 9kW Electric shower |
poa |
|
|
Waste
pump (Shower tray) |
poa |
|
|
Macerator
waste pump (WC) |
poa |
|
|
TRESPA roof panel
(includes lights) |
£255.15 |
£306.18 |
|
Extract fan kit (Roof
panel required) |
£160.61 |
£192.73 |
|
2M ACCESS
RAMP PROFILE |
poa |
poa |
|
|
|
|
|
Customise your SNOWDON
Shower toilet cubicle
Simply
decide:
|
1.The
size of cubicle you require
How
big a shower toilet
cubicle can you fit in
the space you have
available ?
DON'T FORGET TO ADD THE
WIDTH OF ACCESS PANEL
(350mm)
The overall footprint
size is based on
Shower
tray size
PLUS
350mm for the width of
the access panel. |
|
2. The type (height) of
shower tray you require
MIDDLETON
2 OR
HIGHFIELD
Where do you intend to
run your waste pipe work
- above or below floor?
(Click on links to see
detailed description of
each) |
|
3.
Then add in
things like:
*
grab rails
*
shower equipment (electric or
mixer type equipment)
*
wash hand basin
*
roof panel / lighting
*
extractor fan |
Send your
shopping list to us or give us a
call with the details and
we'll organise a no-obligation
quotation for you in no time.
Don't
forget, if this all get a bit
confusing please don't hesitate
to
call for assistance. One of
our friendly staff will be only
too pleased to help.
|
|
|

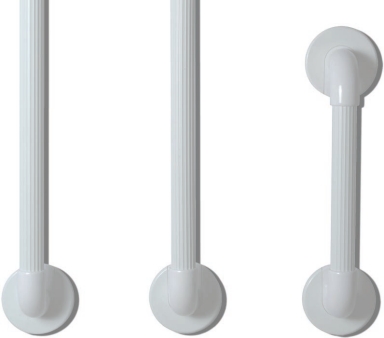

Grab rails |
Care shower equipment |
 |
 |
|
|
In the
interests of constant product improvement the
manufacturer reserves the right to change or vary
specifications without prior notice. Any such changes
will not alter function. |
|
