Shower Right > Shower pods > CORAM shower pods > CORAM 850 Quad Shower Pod

CORAM 850 corner self-contained quadrant shower pod

The Coram 850 Quad Shower Pod is a sleek curved corner unit available with a polished silver sliding door. The shower pod comes with a high performance thermostatic bar shower as standard or with an option to upgrade to a concentric shower (for tech info see below).
Coram 850 quadrant leak free shower pod
  • 890 x 890mm (footprint) quadrant shower pod

  • Available in heights between 2275mm high (Std) and 2130mm high

  • 25 year guarantee (Details)

  • Silver frame sliding door

  • Thermostatic shower included

  • Moulded bottle shelf

  • Easy installation

  • British designed & built

  • Rigid base with Waterguard protection and access panel for easy maintenance

  • Premier Pods feature luxury door frames and finishes

  • Fitting information

Best prices in the UK!



CORAM 850mm quadrant shower pod SPECIAL OFFER PRICES

  List Price Our Price inc VAT

Coram 850 Quadrant Shower Pod with Coram Premier Silver frame

2054.83 1425.32
Sequential Concentric Mixer Valve (see below) 381.68 290.07
Bar valve with rigid riser and rain head 411.75 290.07
Chrome waste outlet with trap Details 26.25
Granite finish (more info) 360.00
Coloured finish 95.00

Best Prices in the UK!

  25 year manufacturer warranty Order

Coram shower pods - Equipment options explained

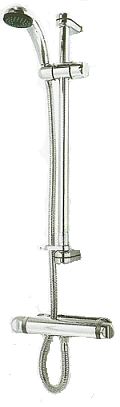

Bar type thermostatic shower mixer valve, hose, riser rail and shower handset

Included: 'Bar type' thermostatic mixer valve (surface mounted)

Option: Sequential Concentric recessed thermostatic mixer valve

Option: Bar valve, rigid riser, 'rain head', adjustable hose with handset

Shower valve options in Coram shower pods

Coram shower pods are supplied with thermostatic shower mixer valves making them suitable for use on all types of hot water system - gravity, pumped, unvented and with combination boilers.


A 'Bar type' thermostatic shower mixer valve is included in the purchase price. However, options are available to have a recessed concentric type valve, a 'Bar Type' valve with rigid riser/rain head/hose and handset (available at additional cost) or to have the pod supplied without shower equipment so you can fit something else (e.g. and electric shower).

Shower valve specifications

The 'Bar type' valve operates to a TMV2 level of control. It's operational pressure range is 0.25 bar - 5 bar (suitable for lower pressure, mains pressure, pumped and combination boiler systems). Delivery flow rate range is between 5 and 13 litres per minute.


The 'Concentric sequential type' valve operates to a TMV3 level of control. It's operational pressure range is 0.1 bar - 10 bar (suitable for lower pressure, mains pressure and pumped systems). Delivery flow rate range is between 14 and 35 litres per minute. Equipped with anti-scald rapid cut-off.

To explain the 'Concentric sequential type' valve a little further...

The term 'concentric' essentially means the valve operates in a rotary fashion around a central spindle. A sequential valve, as the name might suggest, operates in a 'sequence' of events. As the handle is initially rotated the valve opens to allow a full flow of water. The temperature of the output water is controlled by continuing to rotate the valve handle (subject to supply water being at temperature), the water temperature increasing the further the valve is rotated. Being a thermostatic valve, once set at your desired temperature the valve will hold the output temperature stable (no nasty hot or cold surprises if other outlets or appliances in the house call for water!)

The sequential valve offers 'easy to grip' single lever operation and a good visual reference to favourite temperature setting.




Pictured left is an exploded view of the CORAM shower pod. You will notice that the pod is constructed from two main sections onto which the enclosure door is fitted.

Attention is drawn to the lower section of the shower pod which has a particularly tall upstand at the rear of the tray. This negates any risk of water escaping to the rear - an area prone to leaks in a conventional shower. The joint between the upper and lower pod sections is designed in such a way that water cannot escape at this point either.

Pipework (and/or cables) can be conveniently run in the duct behind the corner and connections made underneath the tray via the service hatch.


For detailed dimensional information please see our Technical Drawing

Coram 850 quadrant shower pod diagram


Coram shower pod

Due to a policy of continual improvement the manufacturer reserves the right to change product specification without notice
