Shower Right > Leak free shower pods > CORAM shower pods > CORAM 800 Corner Pod

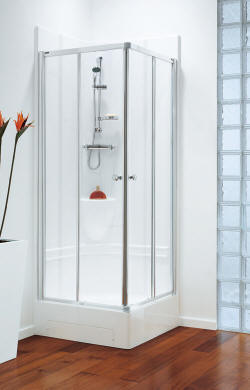

CORAM 800mm x 800mm self contained corner shower pod

The Coram 800 Corner Shower Pod is guaranteed for 25 years and is supplied with either a polished silver or white corner entry door. The pod is also supplied with a high performance thermostatic bar shower as standard with an option to upgrade to a concentric shower (see below).

Coram 800 corner leak free shower pod

  • 805 x 805mm (fooself contained shower pod

  • Available in heights between 2275mm high (Std) and 2130mm high

  • 25 year guarantee (Details)

  • Silver or White framed corner entry door

  • Thermostatic shower included

  • Moulded bottle shelf

  • Easy installation

  • British designed & built

  • Rigid base with Waterguard protection and access panel for easy maintenance

  • *Door can be changed to a Pivot or Bi-Fold door if required

  • Premier Pods feature luxury door frames and finishes

  • Optima Pods feature standard frames and finishes

  • Fitting information

*Pivot door option same price. Bi-fold door variant please add 75.00

CORAM 800mm x 800mm corner shower pod SPECIAL OFFER PRICES


List Price

Our Price

800 x 800 Corner Premier Pod | Silver Frame


1161.03 inc VAT


800 x 800 Corner Optima Pod | Silver Frame


1099.60 inc VAT

800 x 800 Corner Optima Pod | White Frame


1078.19 inc VAT




Sequential Concentric Mixer Valve (see below)



Bar valve with rigid riser and rain head



Chrome waste outlet with trap



Granite finish

(more info)


Coloured finish


Best Prices in the UK!

Coram Shower Pods

25 year manufacturer warranty




Coram shower pods - Equipment options explained

Bar type thermostatic shower mixer valve, hose, riser rail and shower handset

Included: 'Bar type' thermostatic mixer valve (surface mounted)

Option: Sequential Concentric recessed thermostatic mixer valve

Option: Bar valve, rigid riser, 'rain head', adjustable hose with handset

Shower valve options in Coram shower pods

Coram shower pods are supplied with thermostatic shower mixer valves making them suitable for use on all types of hot water system - gravity, pumped, unvented and with combination boilers.


A 'Bar type' thermostatic shower mixer valve is included in the purchase price. However, options are available to have a recessed concentric type valve, a 'Bar Type' valve with rigid riser/rain head/hose and handset (available at additional cost) or to have the pod supplied without shower equipment so you can fit something else (e.g. and electric shower).

Shower valve specifications

The 'Bar type' valve operates to a TMV2 level of control. It's operational pressure range is 0.25 bar - 5 bar (suitable for lower pressure, mains pressure, pumped and combination boiler systems). Delivery flow rate range is between 5 and 13 litres per minute.


The 'Concentric sequential type' valve operates to a TMV3 level of control. It's operational pressure range is 0.1 bar - 10 bar (suitable for lower pressure, mains pressure and pumped systems). Delivery flow rate range is between 14 and 35 litres per minute. Equipped with anti-scald rapid cut-off.

To explain the 'Concentric sequential type' valve a little further...

The term 'concentric' essentially means the valve operates in a rotary fashion around a central spindle. A sequential valve, as the name might suggest, operates in a 'sequence' of events. As the handle is initially rotated the valve opens to allow a full flow of water. The temperature of the output water is controlled by continuing to rotate the valve handle (subject to supply water being at temperature), the water temperature increasing the further the valve is rotated. Being a thermostatic valve, once set at your desired temperature the valve will hold the output temperature stable (no nasty hot or cold surprises if other outlets or appliances in the house call for water!)

The sequential valve offers 'easy to grip' single lever operation and a good visual reference to favourite temperature setting.


Coram 800 corner shower pod diagram

Pictured left is an exploded view of the CORAM shower pod. You will notice that the pod is constructed from two main sections onto which the enclosure door is fitted.

Attention is drawn to the lower section of the shower pod which has a particularly tall upstand at the rear of the tray. This negates any risk of water escaping to the rear - an area prone to leaks in a conventional shower. The joint between the upper and lower pod sections is designed in such a way that water cannot escape at this point either.

Pipework (and/or cables) can be conveniently run in the duct behind the corner and connections made underneath the tray via the service hatch.

For detailed dimensional information please see our Technical Drawing





Self contained leak free 800 corner shower pod

Due to a policy of continual improvement the manufacturer reserves the right to change product specification without notice
