Walk in shower pod for 1200mm Alcove

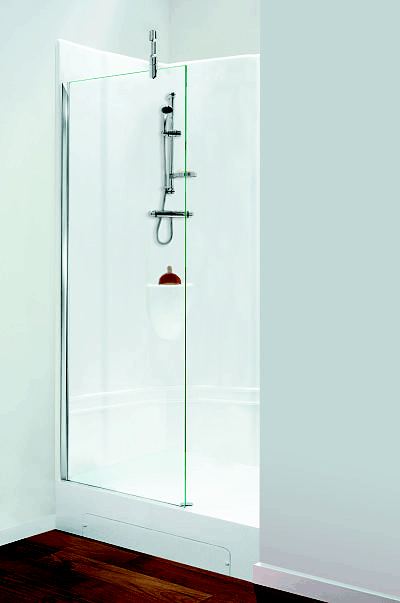

Coram 1200 Alcove walk in shower pod


1200mm alcove walk-in shower pod with walk-in screen



Coram 1200 alcove walk in shower pod cubicle

1200mm walk-in shower pod for an alcove

To compliment the existing range of superior quality leak free shower pods Coram offers a 1200mm alcove model with a 'walk in' design featuring a single frameless glass panel for the minimalist look.



Enjoying the usual Coram 25 year Guarantee, the spacious 1200mm walk in alcove pod is supplied with either a thermostatic bar shower mixer, riser rail, hose and handset (suitable for use on all types of system) included in the price or may be upgraded to a concentric recessed valve as an optional extra.

  • 1195 x 805mm

  • Available in heights between 2275mm high (Std) and 2130mm high

  • 25 year guarantee (Details)

  • Thermostatic shower included

  • Minimalist glass screen ceiling brace

  • Moulded bottle shelf

  • Easy installation with pipework behind cubicle wall

  • British designed & built

  • Rigid base with Waterguard protection and access panel for easy maintenance

  • Fitting information



Best prices in the UK!



SPECIAL OFFER PRICES

  List Price

Our Price

inc VAT

Coram 1200 Alcove Walk-in Premier shower pod | Polished Silver trim

1982.38 1413.08

Options
Sequential Concentric Mixer Valve (see below) 381.68 290.02
Bar valve with rigid riser and rain head 411.75 290.07
Chrome waste outlet with trap Details 26.25
Granite finish (more info) 360.00
Coloured finish 95.00

Best Prices in the UK!

25 year manufacturer warranty

Order


Exploded diagram of 1200 shower pod

Diagram to illustrate pod sections

Please note: Door config different on walk-in model



For detailed dimensional

 information please see our

 Technical Drawing



Coram shower pods - Equipment options explained

Bar type thermostatic shower mixer valve, hose, riser rail and shower handset

Included: 'Bar type' thermostatic mixer valve (surface mounted) Option: Sequential Concentric recessed thermostatic mixer valve Option: Bar valve, rigid riser, 'rain head', adjustable hose with handset

Shower valve options in Coram shower pods

Coram shower pods are supplied with thermostatic shower mixer valves making them suitable for use on all types of hot water system - gravity, pumped, unvented and with combination boilers.

A 'Bar type' thermostatic shower mixer valve is included in the purchase price. However, options are available to have a recessed concentric type valve, a 'Bar Type' valve with rigid riser/rain head/hose and handset (available at additional cost) or to have the pod supplied without shower equipment so you can fit something else (e.g. and electric shower).

Shower valve specifications

The 'Bar type' valve operates to a TMV2 level of control. It's operational pressure range is 0.25 bar - 5 bar (suitable for lower pressure, mains pressure, pumped and combination boiler systems). Delivery flow rate range is between 5 and 13 litres per minute.

The 'Concentric sequential type' valve operates to a TMV3 level of control. It's operational pressure range is 0.1 bar - 10 bar (suitable for lower pressure, mains pressure and pumped systems). Delivery flow rate range is between 14 and 35 litres per minute. Equipped with anti-scald rapid cut-off.

To explain the 'Concentric sequential type' valve a little further...

The term 'concentric' essentially means the valve operates in a rotary fashion around a central spindle. A sequential valve, as the name might suggest, operates in a 'sequence' of events. As the handle is initially rotated the valve opens to allow a full flow of water. The temperature of the output water is controlled by continuing to rotate the valve handle (subject to supply water being at temperature), the water temperature increasing the further the valve is rotated. Being a thermostatic valve, once set at your desired temperature the valve will hold the output temperature stable (no nasty hot or cold surprises if other outlets or appliances in the house call for water!)

The sequential valve offers 'easy to grip' single lever operation and a good visual reference to favourite temperature setting.





shower pod for 1200mm Alcove with walk in screen

Due to a policy of continual improvement the manufacturer reserves the right to change product specification without notice
